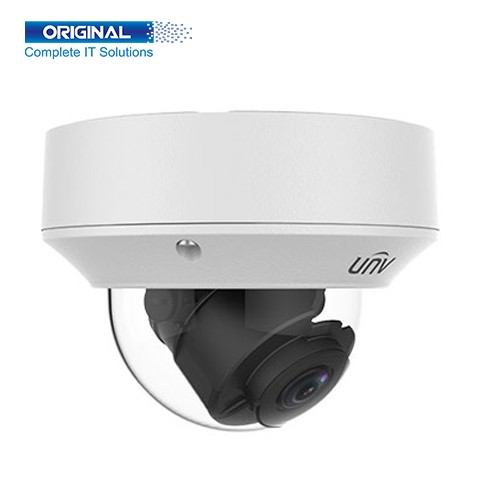

Uniview IPC3238SR3-DVPZ 8MP WDR LightHunter Vandal-resistant Network IR Dome Camera

Price :           To be announced
Status :           Up Comming
Brand :           Uniview
Product Code :           IPC3238SR3-DVPZ

Short Details:

  • • Camera Resolution: 8.0 megapixel,
  • • Ultra 265,H.265,ONVIF,2D/3D DNR, ROI, 9:16 corridor mode,
  • • 2592 x 1944 resolution, 25fps,
  • • Up to 30m (98ft) IR range,
  • • 1/2", progressive scan, CMOS,

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model IPC3238SR3-DVPZ
Brand Uniview
Type Dome IP Camera
Casing Metal + Plastic
Camera Information
Image Sensor 1/2.0",progressive scan,CMOS
Max. Resolution 3840×2160
Pixel 8.0 Megapixel
S/N Ratio >52dB
Min. Illumination Colour: 0.001Lux (F1.5, AGC ON) 0Lux with IR
Illumination Distance Up to 30m (98ft) IR range
Day & Night IR-cut filter with auto switch (ICR)
Night Vision Yes
Smart Recognition Face detection, Audio detection
Lens Infomration
Lens Type 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
Auto Focus Yes
Viewing Angle

*Angle of view (H) : 93.38° ~ 28.56°

*Angle of view (V) : 88°~ 16.4°

*Angle of view (O) : 121.4°~33.7°

Video Infomration
Video Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate

*Main Stream: 8MP (3840*2160), Max 20fps; 5MP (2592*1944), Max 30fps; 5MP (2944*1656), Max 30fps; 4MP (2560*1440), Max 30fps; 2MP (1920*1080), Max 60fps;

*Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps

Resolution Up to 3840×2160 resolution,20fps
BLC Support
Noise Reduction 2D/3D DNR
Port Information
Audio Input G.711
Two-way audio Supported
Audio I/O

* Audio cable
* Input: impedance 35kΩ; amplitude 2V [p-p]
* Output: impedance 600Ω; amplitude 2V [p-p]

Network 1 RJ45 10M/100M Base-TX Ethernet
Power Information
Power Supply DC 12V±25%, PoE (IEEE 802.3af)
Power Consumption Max 8W
Environment Information
Operating Temperature -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Temperature -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Physical Information
Dimensions Φ148 x 111.3mm (Ø5.8” x 4.4”)
Net Weight 0.92kg (2.0lb)
Warranty Information
Warranty 1 Year

Description:


Uniview IPC3238SR3-DVPZ 8MP WDR LightHunter Vandal-resistant Network IR Dome Camera


Model IPC3238SR3-DVPZ
Brand Uniview
Type Dome IP Camera
Casing    Metal + Plastic
Image Sensor 1/2.0",progressive scan,CMOS
Max. Resolution    3840×2160
Pixel 8.0 Megapixel
S/N Ratio >52dB
Min. Illumination Colour: 0.001Lux (F1.5, AGC ON) 0Lux with IR
Illumination Distance Up to 30m (98ft) IR range
Day & Night IR-cut filter with auto switch (ICR)
Night Vision Yes
Smart Recognition Face detection, Audio detection
Lens Type 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
Auto Focus Yes
Viewing Angle
*Angle of view (H) : 93.38° ~ 28.56°
*Angle of view (V) : 88°~ 16.4°
*Angle of view (O) : 121.4°~33.7°
Video Infomration
Video Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate
*Main Stream: 8MP (3840*2160), Max 20fps; 5MP (2592*1944), Max 30fps; 5MP (2944*1656), Max 30fps; 4MP (2560*1440), Max 30fps; 2MP (1920*1080), Max 60fps;
*Sub Stream: 2MP (1920*1080), Max 30fps;
*Third Stream: D1 (720*576), Max 30fps
ResolutionUp to 3840×2160 resolution,20fps
BLC Support
Noise Reduction    2D/3D DNR
Audio Input G.711
Two-way audio Supported
Audio I/O
*Audio cable
*Input: impedance 35kΩ; amplitude 2V [p-p]
*Output: impedance 600Ω; amplitude 2V [p-p]
Network    1 RJ45 10M/100M Base-TX Ethernet
Power Supply DC 12V±25%, PoE (IEEE 802.3af)
Power Consumption Max 8W
Operating Temperature -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Temperature -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Dimensions Φ148 x 111.3mm (Ø5.8” x 4.4”)
Net Weight 0.92kg (2.0lb)
Warranty 2 Year
