| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asrock |
| Product Code | : | B560 Pro4 |
| General Information | ||
| Model | ASRock B560 Pro4 | |
| Brand | ASRock | |
| Supported Processor | Supports Intel Core 10th and 11th Gen Core i9, i7, i5, i3, Pentium, Celeron Processors (LGA1200) | |
| Chipset | Intel B560 | |
| Socket | LGA1200 | |
| Bios | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, GT, DRAM, VPPM, VCCIN AUX, VCCIO, VCCST, VCCSA Voltage Multi-adjustment |
|
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual Channel | |
| Slot | 4 x DDR4 DIMM Slots | |
| Supported Bus Speed | - 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)
- 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4600+(OC)
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Supports Intel Extreme Memory Profile (XMP) 2.0 |
|
| Maximum Memory | 128GB | |
| Graphics Information | ||
| Graphics | - 11th Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core™ Processors support Gen 9 Graphics - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz with 11th Gen Intel® Core™ Processors - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz with 10th Gen Intel® Core™ Processors - Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) - Supports HDCP 2.2 with DisplayPort and HDMI Ports (HDCP 2.3 ready with 11th Gen Intel® Core™ Processors) |
|
| Expansion Slots | ||
| PCI | * 11th Gen Intel Core Processors - 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x2 (PCIE3)) * 10th Gen Intel Core Processors - 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x2 (PCIE3)) - 2 x PCI Express 3.0 x1 Slots |
|
| Storage Information | ||
| M.2 | - 1 x Hyper M.2 Socket (M2_1), supports M Key
- 1 x Ultra M.2 Socket (M2_2), supports M Key
- 1 x M.2 Socket (M2_3), supports M Key type |
|
| SATA | - 6 x SATA3 6.0 Gb/s Connectors, support | |
| Connector Information | ||
| Internal Connectors | - 1 x COM Port Header - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 2 x RGB LED Headers* - 2 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) |
|

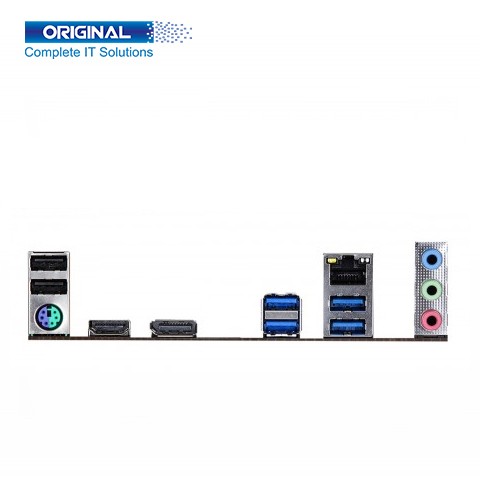

| Port Information | ||
| PS/2 Port | - 1 x PS/2 Mouse/Keyboard Port | |
| USB Port | - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 2 x USB 2.0 Ports (Supports ESD Protection) |
|
| HDMI Port | - 1 x HDMI Port | |
| Display Port | - 1 x DisplayPort 1.4 | |
| LAN Port | - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| Audio Port | - HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Antenna | - 3 x Antenna Mounting Points | |
| Operating Systems | ||
| Supported OS | - Microsoft® Windows® 10 64-bit / 11 64-bit | |
| Warranty | ||
| Warranty | 03 Years Warranty | |

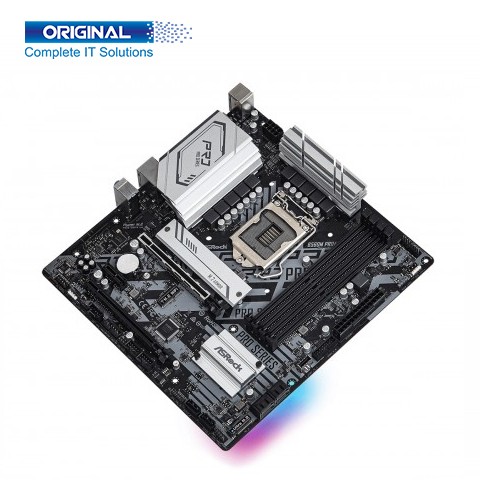

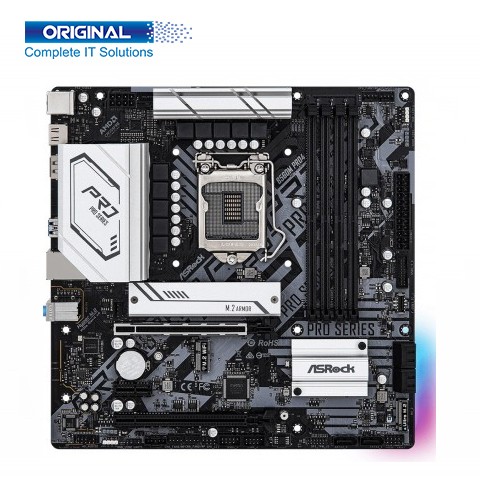

ASRock B560 Pro4 10th/11th Gen ATX Motherboard. Its delivery and dominant thermal design, glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake's performance in all its atx glory. It ensure maximum Turbo Boost and overclocking performance of Intel's new generation CPU.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
ASRock B560 Pro4 10th/11th Gen ATX Motherboard. The Supported Processor is Supports Intel 10th and 11th Gen Core i9, i7, i5, i3, Pentium, Celeron Processors (LGA1200), Chipset - Intel B560, Socket LGA1200, Bios - 128Mb AMI UEFI Legal BIOS with multilingual GUI support, - ACPI 6.0 Compliant wake up events, - SMBIOS 2.7 Support- CPU Core/Cache, GT, DRAM, VPPM, VCCIN AUX, VCCSA,VCCIO Multi-adjustment, Form Factor ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm. Memory Types DDR4, Channel Dual Channel, Slot 4 x DDR4 DIMM Slots, Supported Bus Speed - 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC), - 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4600+(OC), - Supports ECC UDIMM memory modules (operate in non-ECC mode), - Supports Intel Extreme Memory Profile (XMP) 2.0, Maximum Memory 128GB. The Graphics - 11th Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core™ Processors support Gen 9 Graphics, - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers, - Supports HDMI 2.0 with max. ASRock B560 Pro4 10th/11th resolution up to 4K x 2K (4096x2160) @ 60Hz with 11th Gen Intel® Core™ Processors, - Supports HDMI 1.4 with max. You can get ASRock B560 Pro4 10th/11th Gen ATX Motherboard at the best price in BD .resolution up to 4K x 2K (4096x2160) @ 30Hz with 10th Gen Intel® Core™ Processors, - Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz, - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required), - Supports HDCP 2.2 with DisplayPort and HDMI Ports (HDCP 2.3 ready with 11th Gen Intel® Core™ Processors). ASRock B560 ATX Motherboard is PS/2 Port 1 x PS/2 Mouse/Keyboard Port, - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection), - 2 x USB 2.0 Ports (Supports ESD Protection), HDMI Port 1 x HDMI Port, Display Port - 1 x DisplayPort 1.4, LAN Port- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), Audio Port * Connector: - 1 x Front Panel Audio Connector, * Rear Panel I/O:- HD Audio Jacks: Line in / Front Speaker / Microphone, Antenna - 3 x Antenna Mounting Points. The ASRock B560 Pro4 10th/11th Gen ATX Motherboard has a 03 Years Warranty.
