| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asus |
| Product Code | : | Prime B450M-A |
| General Information | ||

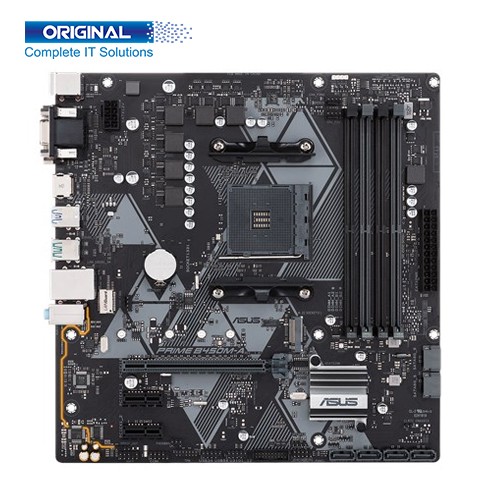

| Model | Asus Prime B450M-A |
|
| Brand | Asus | |
| Supported Processor | AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors | |
| Chipset | AMD B450 | |
| Socket | AM4 | |
| Bios | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control | |
| Form Factor | mATX Form Factor, 9.6 inch x 9.5 inch ( 24.4 cm x 24 cm ) | |
| Memory Information | ||
| Memory Types | DDR4 |
|
| Channel | Dual Channel | |
| Slot | 4 x DIMM | |
| Supported Bus Speed | 4400 /3466 /3200 /3000 /2800(O.C.) /2666 /2400 /2133 MHz | |
| Maximum Memory | 128GB | |
| Graphics Information | ||
| Graphics | * Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors * Multi-VGA output support : HDMI/DVI-D/D-Sub ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz |
|
| Expansion Slots | ||
| PCI | * 1 x PCIe 3.0/2.0 x16 (x16 mode) * 1 x PCIe 3.0/2.0 x16 (x8 mode) *1 * 1 x PCIe 3.0/2.0 x16 (max at x4 mode) * 2 x PCIe 2.0 x1 |
|
| Storage Information | ||
| M.2 | * 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 * 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*2 |
|
| SATA | * 4 x SATA 6Gb/s port(s), * 2 x SATA 6Gb/s port(s), |
|
| RAID | Support Raid 0, 1, 10 | |
| Connector Information | ||
| Internal Connectors | * 1 x Aura RGB Strip Header * 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) * 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) * 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) * 1 x TPM header * 1 x COM port(s) connector(s) * 6 x SATA 6Gb/s connector(s) * 1 x CPU Fan connector(s) (1 x 4 -pin) * 2 x Chassis Fan connector(s) (2 x 4 -pin) * 1 x S/PDIF out header(s) * 1 x 24-pin EATX Power connector(s) * 1 x 8-pin ATX 12V Power connector(s) * 1 x Front panel audio connector(s) (AAFP) * 1 x System panel(s) * 1 x Clear CMOS jumper(s) * 1 x Speaker connector |
|

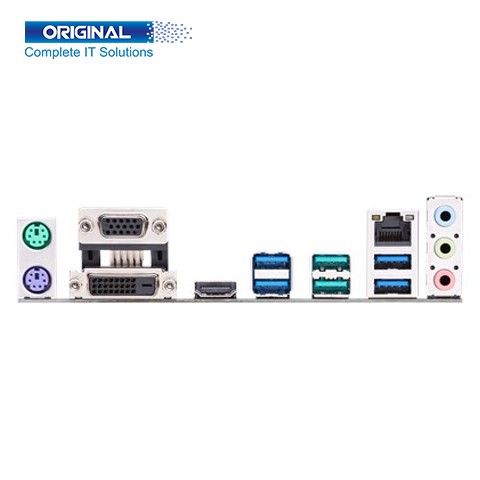

| Port Information | ||
| PS/2 Port | * 1 x PS/2 keyboard (purple) * 1 x PS/2 mouse (green) |
|
| USB Port | * 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue) * 2 x USB 3.1 Gen 2 port(s) (2 at back panel, ) * 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) * 4 x USB 2.0/1.1 port(s) (4 at mid-board) |
|
| HDMI Port | 1 x HDMI | |
| DVI-D Port | 1 x DVI-D | |
| D-SUB Port | 1 x D-Sub | |
| LAN Port | * Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) *ASUS LAN Guard |
|
| Audio Port | * Realtek® ALC887 8-Channel High Definition Audio CODEC - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
|
| Other Information | ||
| Special Features | ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: Premium components provide better power efficiency ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert 2+ ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM |
|
| Operating Systems | ||
| Supported OS | * Windows® 10 64-bit * Windows® 7 64-bit *3 |
|
| Warranty | ||
| Warranty | 03 Years Warranty |
|
Asus Prime B450M-A motherboards give you the strong foundation you expect in your first form, in addition to the versatility of developing with your aspirations. We've put together all the cool stuff with basic planning and design in the latest AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors support, so you can benefit from industry-driven advances, including tuning of mechanical structures. Extensive cooling control, and lively locally available sound.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
This Asus Prime B450M-A Motherboard comes with AMD Ryzen 5000 Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors, AM4 Socket, Build in Intel B450 Chipset with 128 Mb Flash ROM, UEFI AMI BIOS, 9.6-inch x 9.5-inch ATX Form Factor. Asus Prime B450M-A mATX Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed 4400 /3466 /3200 /3000 /2800(O.C.) /2666 /2400 /2133 MHz. Prime B450M-A Asus Motherboard comes with standard Graphics such as Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors, Supports HDMI 2.0b with a maximum resolution of 4096 x 2160 @ 60 Hz, Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz, Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz. Asus Prime B450M-A AMD Motherboard Expansion PCI Slots is 1 x PCIe 3.0/4.0 x 16 slots, 2 x SATA 6 GB/s, 4 x SATA 6 GB/s, 1 x M.2_2 socket 3, Supported Raid 0, 1, 10 also various Internal Connectors such as 1 x 24-pin ATX main power connector, 1 x 4 pin CPU fan header, 1 x M.2_FAN connector, etc. The Asus Prime B450M-A Motherboard has 1 x LAN (RJ45) port(s), 2 USB 3.2 Gen 1, 4 USB 2.0 ports, Realtek ALC887 8-Channel High Definition Audio CODEC. Asus Prime B450M-A Motherboard has some special features like ASUS Exclusive Software. Asus Prime B450M-A Motherboard Support for Windows 10 64-bit. You can enjoy a 03 Years Warranty. Purchase Motherboard from Original Store Ltd and get online conveyance at any side of Bangladesh.
