| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asus |
| Product Code | : | PRIME B760M-A D4 |
| General Information | ||
| Model | Asus PRIME B760M-A D4 | |
| Brand | Asus | |
| Supported Processor | Supports 13th & 12th Gen Intel Core, Pentium Gold, and Celeron Processors | |
| Chipset | Intel® B760 Chipset | |
| Socket | LGA1700 | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
|
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual Channel | |
| Slot | 4 x DIMM | |
| Supported Bus Speed | 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC),
4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC),
3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC,
Un-buffered Memory |
|
| Maximum Memory | 128GB | |
| Graphics Information | ||
| Graphics | 1 x DisplayPort 2 x HDMI® ports * Graphics specifications may vary between CPU types. Please refer to |
|
| Expansion Slots | ||
| PCI | Intel 13th & 12th Gen Processors |
|
| Storage Information | ||
| M.2 | Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports* |
|
| SATA | 4 x SATA 6Gb/s ports | |
| RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10 | |
| Connector Information | ||
| Internal Connector | Fan and Cooling related |
|
| Port Information | ||
| PS/2 Port | 1 x PS/2 Keyboard/Mouse combo port |
|

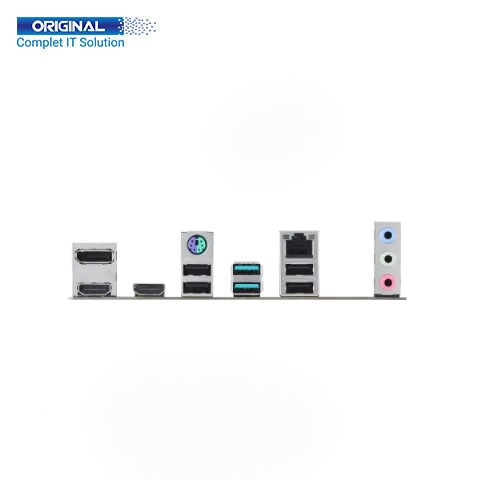

| USB Port | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port |
|
| HDMI Port | 2 x HDMI® ports | |
| Display Port | 1 x DisplayPort | |
| LAN Port | 1 x Realtek 2.5Gb Ethernet port | |
| Audio Port | Realtek 7.1 Surround Sound High Definition Audio CODEC* 3 x Audio jacks |
|
| Others Information | ||
| Special Features | ASUS 5X PROTECTION III |
|
| Software Features | ASUS Exclusive Software |
|
| Operating System | ||
| Operating System | Windows® 11, Windows® 10 64-bit | |
| Warranty | ||
| Warranty | 3 Years Warranty | |

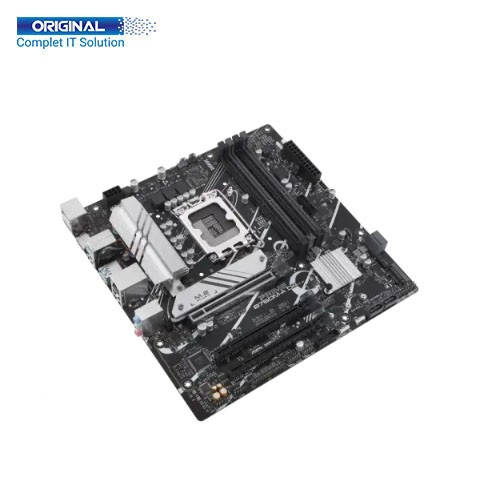

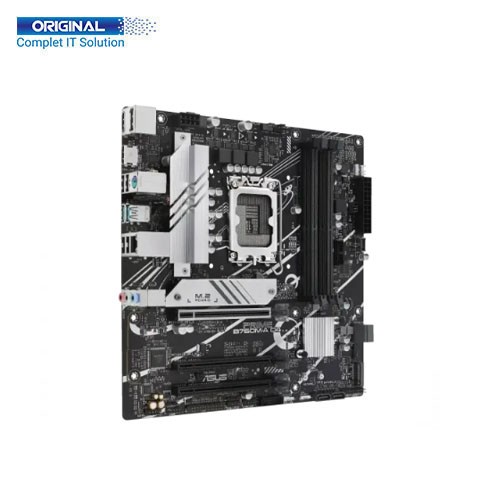

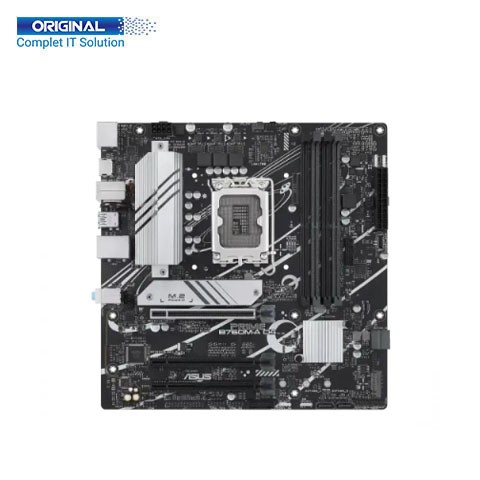

Asus PRIME B760M-A D4 12th & 13th Gen mATX Motherboard. These ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel Core Processors.
Asus PRIME B760M-A D4 12th & 13th Gen mATX Motherboard. It is Supported Processor Supports 13th & 12th Gen Intel Core, Pentium Gold, and Celeron Processors, Chipset Intel® B760 Chipset, Socket LGA1700, BIOS 128 Mb Flash ROM, UEFI AMI BIOS, Form Factor mATX Form Factor, 9.6 inch x 9.6 inches ( 24.4 cm x 24.4 cm ), Memory Types DDR4, Channel Dual Channel, Slot 4 x DIMM, 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC),4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC),3466(OC)/3400(OC) 3333(OC), 3200/3000/2933/2800/2666/2400, 2133 Non-ECC, Un-buffered Memory, Maximum Memory 128GB, Graphics 1 x DisplayPort, 2 x HDMI® ports, * Graphics specifications may vary between CPU types. Please refer to, PCI Intel 13th & 12th Gen Processors, 1 x PCIe 4.0 x16 slot, Intel B760 Chipset, 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x16 slot (supports x1 mode), M.2 Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports, Intel® 13th & 12th Gen Processors, M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), Intel® B760 Chipset, M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), Internal Connector Fan and Cooling related, 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 2 x 4-pin Chassis Fan headers, Power related 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, Storage related 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports, 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 2 x USB 2.0 headers support 4 additional USB 2.0 ports, 1 x USB 2.0 header supports 1 additional USB 2.0 port, Miscellaneous 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x LPT header, 1 x S/PDIF Out header, 1 x SPI TPM header (14-1pin), 1 x 20-3 pin System Panel header with Chassis intrude function, USB Port Rear USB (Total 6 ports), 2 x USB 3.2 Gen 2 ports (2 x Type-A ), 4 x USB 2.0 ports (4 x Type-A), Front USB (Total 10 ports), 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports, 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 2 x USB 2.0 headers support 4 additional USB 2.0 ports, 1 x USB 2.0 header supports 1 additional USB 2.0 port. The Asus PRIME B760M-A D4 12th & 13th Gen mATX Motherboard comes with 3 years warranty.
