| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asus |
| Product Code | : | Z590-A |
| General Information | ||
| Model | Asus Prime Z590-A | |
| Supported Processor | Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors | |
| Chipset | Intel® Z590 Chipset | |
| Socket | LGA1200 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor12 inch x 9.6 inch | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual-Channel | |
| Slot | 4 x DIMM | |
| Supported Bus Speed | 5333/ 5133/ 5000/ 4800/ 4700/ 4600/ 4500/ 4400/ 4266/ 4133/ 4000 /3866/ 3733/ 3600/ 3466/ 3400/ 3333/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz | |
| Maximum Memory | 128GB | |
| Graphics Information | ||
| Graphics | * 1 x DisplayPort 1.4** * 1 x HDMITM 2.0*** * Graphics specifications may vary between CPU types. * Only Intel® 11th Core™ processors support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others will only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates" * Only Intel® 11th Core™ processors, support HDMI™ 2.0 with max. resolution of 4K@60Hz, others * would only support HDMI™ 1.4 with max. resolution of 4K@30Hz.Please refer to www.intel.com for any update. * VGA resolution support depends on processors' or graphic cards' resolution |
|
| Expansion Slots | ||
| PCI | * 3 x PCIe 4.0/3.0 x16 slots* * Intel® 11th Core™ processors support PCIe 4.0 x16 * Intel®10th processors support PCIe 3.0 x16 * Intel® Z590 Chipset * 1 x PCIe 3.0 x4 slot |
|
| Storage Information | ||
| M.2 | * M.2_1 slot (Key M), type 2242/2260/2280/22110
* M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
* M.2_3 slot (Key M), type 2242/2260/22110 (supports PCIe 3.0 x4 & SATA modes) |
|
| SATA | 6 x SATA 6Gb/s ports | |
| RAID | Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available | |
| Connector Information | ||
| Internal Connectors | * Fan and Cooling related * 1 x 4-pin CPU Fan header * 1 x 4-pin CPU OPT Fan header * 1 x 4-pin AIO Pump header * 3 x 4-pin Chassis Fan headers * 1 x 4-pin VRM_HS Fan header * 1 x W_PUMP+ header * Power related * 1 x 24-pin Main Power connector * 1 x 8-pin +12V Power connector * 1 x 4-pin +12V Power connector * Storage related * 3 x M.2 slots (Key M) * 6 x SATA 6Gb/s ports * 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) * 1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports * 2 x USB 2.0 headers support additional 4 USB 2.0 ports * Miscellaneous * 3 x AURA Addressable Gen 2 headers * 1 x AURA RGB headers * 1 x Clear CMOS header * 1 x COM Port header * 1 x Front Panel Audio header (AAFP) * 1 x CPU Over Voltage jumper * 1 x Power button * 1 x SPI TPM header (14-1pin) * 1 x 20-3 pin System Panel header * 1 x Thermal Sensor header * 1 x Thunderbolt™ header |
|
| Port Information | ||
| USB Port | * 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) * 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x Type-C®) * 4 x USB 2.0 ports (4 x Type-A) |
|
| HDMI Port | 1 x HDMI™ port | |
| Audio Port | 5 x Audio jacks | |
| Display Port | 1 x DisplayPort | |
| Optical Drive | 1 x Optical S/PDIF out port | |
| Operating System | ||
| Supported OS | Windows® 10 64-bit | |
| Warranty | ||
| Warranty | 03 Years Warranty | |

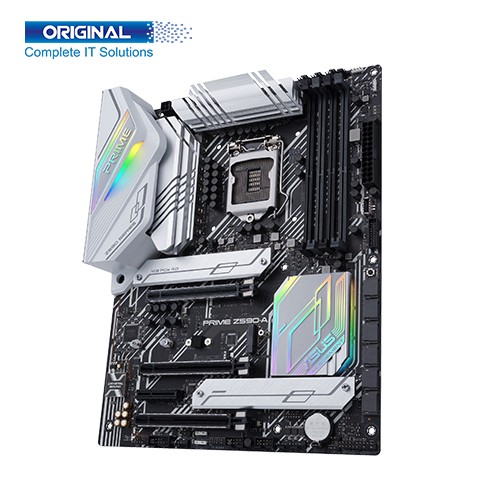

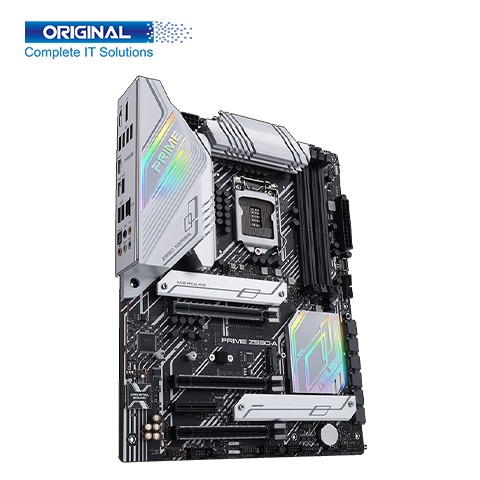

Asus Prime Z590-A Motherboard comes with 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors, Intel Z590 Chipset with 256 Mb Flash ROM, UEFI AMI BIOS, 12 inch x 9.6 inch ATX Form Factor and Intel LGA1200 socket. This Asus Prime Z590-A Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed 5333/ 5133/ 5000/ 4800/ 4700/ 4600/ 4500/ 4400/ 4266/ 4133/ 4000 /3866/ 3733/ 3600/ 3466/ 3400/ 3333/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
Asus Prime Z590-A Motherboard comes with standard Graphics such as 1 x DisplayPort 1.4, 1 x HDMITM 2.0, Only Intel® 11th Core™ processors, support HDMI™ 2.0 with max. resolution of 4K@60Hz, others * would only support HDMI™ 1.4 with max. resolution of 4K@30Hz.Please refers to www.intel.com for any update. This Asus Prime Z590-A Motherboard Expansion PCI Slots is 2 x PCIe 3.0 x 16 slots, 6 x SATA 6 GB/s, 2 M.2 Socket 3, 1 x M.2_1 socket 3 and 1 x M.2_2 socket 3, Supports RAID 0, 1, 5, 10 also various Internal Connectors such as 1 x 24-pin ATX main power connector, 1 x 4 pin CPU fan header, 1 x M.2_FAN connector, etc. This Asus Prime Z590-A Motherboard has BLUETOOTH 5.1 function and will be ready in Windows 10 build 19041 or later. and 1 x ASUS Wi-Fi Module, 4 USB 3.2 Gen 1, 4 USB 2.0 ports, 1x Display Port, 5 x Audio jacks, etc many others.
Asus Prime Z590-A Motherboard Support for Windows 10 64-bit. You can enjoy 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
