| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asus |
| Product Code | : | B460-F |
| General Information | ||

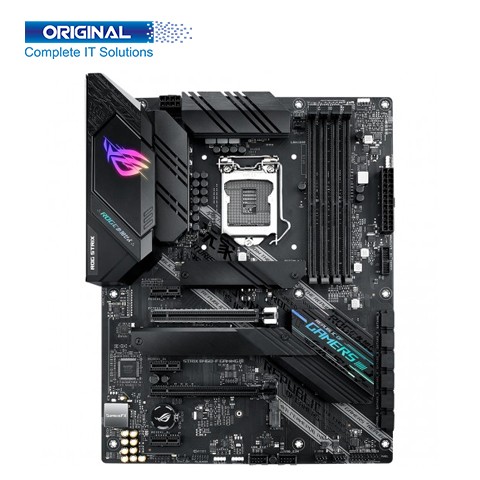

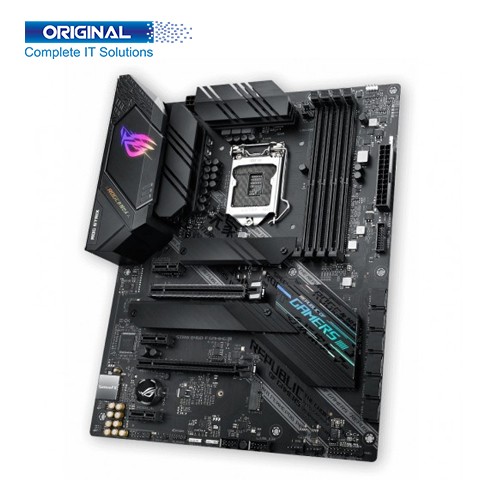

| Model | Asus ROG STRIX B460-F |
|
| Brand | Asus | |
| Supported Processor | 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors | |
| Chipset | Intel® B460 | |
| Socket | Intel® Socket 1200 | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | |
| Memory Information | ||
| Memory Types | DDR4 |
|
| Channel | Dual Channel | |
| Slot | 4 x DDR4 DIMM | |
| Supported Bus Speed | 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem | |
| Maximum Memory | 128 GB | |
| Graphics Information | ||
| Graphics | Integrated Graphics Processor 1 x DisplayPort 1.4 1 x HDMI 1.4b Supports AMD 2-Way CrossFireX Technology |
|
| Expansion Slots | ||
| PCI | * 1 x PCIe 3.0 x16 * 1 x PCIe 3.0 x16 (x4 mode) * 3 x PCIe 3.0 x1 |
|
| Storage Information | ||
| M.2 | * 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices * 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) |
|
| SATA | 6 x SATA 6Gb/s port(s) | |
| RAID | Support Raid 0, 1, 5, 10 | |
| Connector Information | ||
| Internal Connectors | * 1 x CPU Fan connector(s) * 1 x CPU OPT Fan connector(s) * 3 x Chassis Fan connector(s) * 1 x AIO_PUMP connector * 1 x AAFP connector * 2 x Aura RGB Strip Headers * 2 x Addressable Gen 2 header(s) * 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) * 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) * 2 x M.2 Socket 3 * 1 x M.2 with E key for Wi-Fi module * 6 x SATA 6Gb/s connector(s) * 1 x S/PDIF out header(s) * 1 x Thunderbolt header(s) * 1 x 24-pin EATX Power connector(s) * 1 x 8-pin ATX 12V Power connector(s) * 1 x Clear CMOS jumper(s) * 1 x System panel connector |
|
| Port Information | ||
| USB Port | 1 x USB 2.0 port(s)(1 x audio USB Type-C® ) Front USB Port ( Total 6 ) Rear USB Port ( Total 8 ) 6 x USB 3.2 Gen 1 port(s)(6 x Type-A) 1 x USB 3.2 Gen 2x2 port(s)(1 x USB Type-C®) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) |
|
| HDMI Port | 1 x HDMI | |
| Display Port | 1 x DisplayPort | |
| LAN Port | 1 x Intel® I219-V 1Gb Ethernet ASUS LANGuard |
|
| Audio Port | ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC * Rear audio USB Type-C® port * Premium Japanese audio capacitors * Audio Cover * Dual OP Amplifiers * Impedance sense for front and rear headphone outputs * Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking * High quality120dBSNR stereo playback outputand113dBSNR recording input * Supports up to 32-Bit/192kHz playback Audio Feature : * SupremeFX Shielding™ Technology * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
|
| Other Information | ||
| Special Features | Wireless Data Network M.2 slot only (Key E) (Support PCIe interface)* *Wi-Fi module is sold separately. [ROG Exclusive Software] * RAMCache III * ROG CPU-Z * GameFirst VI * Sonic Studio III + Sonic Studio Virtual Mixer * Sonic Radar III * DTS® Sound Unbound * Overwolf * Anti-virus software [ASUS Exclusive Software] Armoury Crate * Aura Creator * Aura Sync AI Suite 3 * Performance And Power Saving Utility: TurboV EVO, EPU, Digi+ VRM, Fan Xpert 4 * EZ update ASUS CPU-Z DAEMON Tools WinRAR [UEFI BIOS] ASUS EZ DIY * ASUS CrashFree BIOS 3 * ASUS EZ Flash 3 * ASUS UEFI BIOS EZ Mode ASUS Special Features Extreme Engine Digi+ * 5K Black Metallic Capacitors ASUS Q-Design * ASUS Q-DIMM * ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) * ASUS Q-Slot ASUS Thermal Solution * Aluminum M.2 heatsink ASUS EZ DIY * BIOS FlashBack™ button * BIOS FlashBack™ LED * Procool * Pre-mounted I/O shield * SafeSlot AURA Sync * Standard RGB header(s) * Addressable Gen 2 RGB header(s) Rear audio USB Type-C® connector |
|
| Operating System | ||
| Supported OS | Windows® 10 64-bit |
|
| Warranty | ||
| Warranty | 03 Years Warranty |
|
Asus ROG STRIX B460-F motherboards give you the strong foundation you expect in your first form, in addition to the versatility of developing with your aspirations. We've put together all the cool stuff with basic planning and design in the latest 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors support, so you can benefit from industry-driven advances, including tuning of mechanical structures. Extensive cooling control, and lively locally available sound.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
Asus ROG STRIX B460-F Motherboard comes with 10th Gen Intel Core, Pentium Gold and Celeron Processors, 1200 Socket, Build in Intel B460 Chipset with 128 Mb Flash ROM, UEFI AMI BIOS, 30.5 cm x 24.4 cm ATX Form Factor. Asus ROG STRIX B460-F Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed 42933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, It is Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem. Asus ROG STRIX B460-F Asus Motherboard comes with standard Graphics such as 1 x DisplayPort 1.4, 1 x HDMI 1.4b, and Supports AMD 2-Way CrossFireX Technology. Also in Asus ROG STRIX B460-F Motherboard Expansion PCI Slots is 1 x PCIe 3.0/4.0 x 16 slots, 6 x SATA 6 GB/s, 1 x M.2_2 socket 3, Supported Raid 0, 1, 5, 10 also various Internal Connectors such as 1 x 24-pin ATX main power connector, 1 x 4 pin CPU fan header, 1 x M.2_FAN connector, etc. Here Asus ROG STRIX B460-F Motherboard has 1 x Intel® I219-V 1Gb Ethernet, 2 USB 3.2 Gen 1, 4 USB 2.0 ports, ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC. The Asus ROG STRIX B460-F Motherboard has some special features like ASUS Exclusive Software.
Asus ROG STRIX B460-F Motherboard Support for Windows 10 64-bit. You can enjoy 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
