| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asus |
| Product Code | : | ROG STRIX B660-F GAMING WIFI |
| General Information | ||
| Model | ROG STRIX B660-F GAMING WIFI |
|
| Brand | ASUS | |
| Supported Processor | Support for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel® B660 Chipset | |
| Socket | LGA1700 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | |
| Memory Information | ||
| Memory Types | DDR5 |
|
| Channel | Dual Channel | |
| Slot | 4 x DIMM | |
| Supported Bus Speed | Support for DDR5 6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800, Un-buffered Memory | |
| Maximum Memory | 128 GB | |
| Graphics Information | ||
| Graphics | 1 x DisplayPort (Support max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
|
| Expansion Slots | ||
| PCI | * Intel® 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot (supports x16 mode)
* Intel® B660 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots |
|
| Storage Information | ||
| M.2 | 3 x M.2 slots |
|
| SATA | 4 x SATA 6Gb/s ports | |
| RAID | Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10 | |
| Connector Information | ||
| Internal Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x S/PDIF Out header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header |
|
| Port Information | ||
| USB Port | Rear USB (Total 9 ports): 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 1 x USB 3.2 Gen 2 ports (1 x Type-A), 5 x USB 3.2 Gen 1 ports (4 x Type-A, 1 x USB Type-C®), 2 x USB 2.0 ports (2 x Type-A), Front USB (Total 7 ports): 1 x USB 3.2 Gen 2 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports, |
|
| HDMI Port | 1 x HDMI port | |
| Display Port | 1 x DisplayPort | |
| LAN Port | 1 x Intel 2.5Gb Ethernet | |
| Audio Jack | 5 x Audio jacks | |
| BIOS button | 1 x BIOS FlashBack™ button | |
| CMOS button | 1 x Clear CMOS button | |
| Other Information | ||
| WIFI & BLUETOOTH | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
|
| Operating System | ||
| Supported OS | Windows® 11 64-bit, Windows® 10 64-bit |
|
| Warranty | ||
| Warranty | 3 Years Warranty |
|

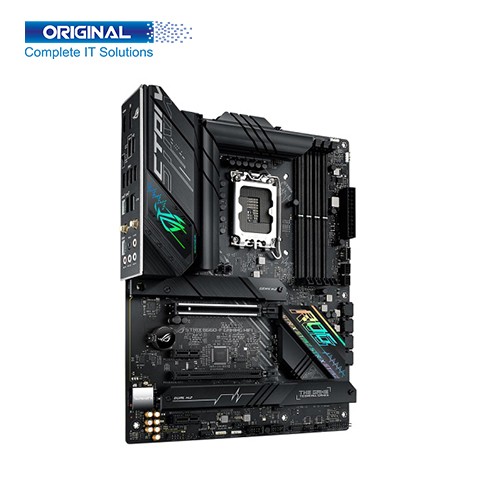

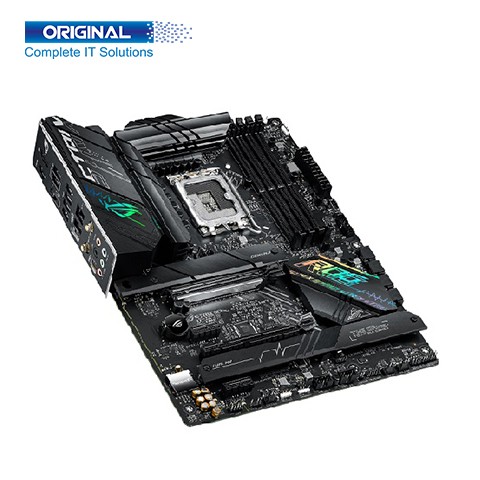

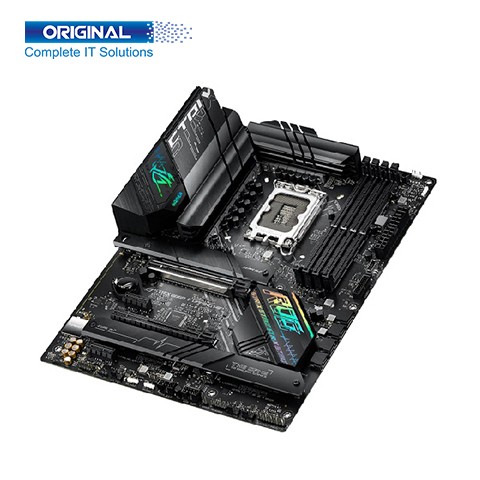

ASUS ROG STRIX B660-F GAMING WIFI 12th Gen ATX Motherboard With more cores’ processors, thermal and power design is more important to ensure the temperature keeps lower. Support for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Asus extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPU run at full speed with Asus ROG STRIX B660-F GAMING WIFI Motherboard.
ASUS ROG STRIX B660-F GAMING WIFI 12th Gen ATX Motherboard. Support for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Intel® B660 Chipset. Socket LGA1700. Form Factor ATX; 12 inch x 9.6 inches ( 30.5 cm x 24.4 cm ). Asus ROG STRIX B660-F GAMING WIFI Memory Types DDR5, Dual-Channel. Slot 4 x DIMM. Support for DDR5 6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800, Un-buffered Memory. Maximum Memory 128 GB. Graphics is 1 x DisplayPort (Support max. 4K@60Hz as specified in DisplayPort 1.4), and 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1). PCI is Intel® 13th & 12th Gen Processors: 1 x PCIe 5.0 x16 slot (supports x16 mode), Intel® B660 Chipset: 1 x PCIe 3.0 x16 slot (supports x4 mode), 2 x PCIe 3.0 x1 slots. Storage Supports 3 x M.2 slots, 4 x SATA 6Gb/s ports. USB Port is Rear USB (Total 9 ports): 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 1 x USB 3.2 Gen 2 ports (1 x Type-A), 5 x USB 3.2 Gen 1 ports (4 x Type-A, 1 x USB Type-C®), 2 x USB 2.0 ports (2 x Type-A), Front USB (Total 7 ports): 1 x USB 3.2 Gen 2 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports, Display Port is 1 x DisplayPort, HDMI Port is 1 x HDMI port, LAN Port is 1 x Intel 2.5Gb Ethernet, Audio Port is 5 x Audio jacks. Supported Operating System Support for Windows® 11, and Windows® 10 64-bit. ASUS ROG STRIX B660-F GAMING WIFI 12th Gen ATX Motherboard has Three years warranty.
