| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asus |
| Product Code | : | Z590-A |
| General Information | ||
| Model | Asus ROG STRIX Z590-A |
|
| Brand | Asus | |
| Supported Processor | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel® Z590 Chipset | |
| Socket | Intel® Socket LGA1200 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX 30.5cm x 24.4cm | |
| Memory Information | ||
| Memory Types | DDR4 |
|
| Channel | Dual Channel | |
| Slot | 4 x DIMM | |
| Supported Bus Speed | 5333(OC)5133(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4267(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II 10th Gen Intel® Core™ i7/i9 processors support 2933 / 2800 / 2666 / 2400 / 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. 11th Gen Intel® processors support 3200 / 2933 / 2800 / 2666 / 2400 / 2133 natively. |
|
| Maximum Memory | 128GB | |
| Graphics Information | ||
| Graphics | 1 x DisplayPort 1.4** 1 x HDMI™ 2.0*** * Graphics specifications may vary between CPU types. ** Only Intel® 11th processors support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others will only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates *** Only Intel® 11th processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates. |
|
| Expansion Slots | ||
| PCI | 3 x PCIe 4.0/3.0 x16 (x16, x8/x4/x4) Intel® 11th &10th Gen Processors 3 x PCIe 4.0/3.0 x16 slot(s) * Intel® 11th processors support PCIe 4.0 x16 or x8/x4/x4 mode(s) * Intel® 10th processors support PCIe 3.0 x16 or x8/x4/x4 mode(s) Intel® Z590 Chipset 1 x PCIe 3.0 x4 slot |
|
| Storage Information | ||
| M.2 | Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Intel®11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs. Intel® Z590 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) |
|
| SATA | 6 x SATA 6Gb/s ports | |
| RAID | Raid function in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots. 2. any other 3rd party SSDs installed in PCH-attached slots. |
|
| Connector Information | ||
| Internal Connectors | * 1 x 4-pin CPU Fan header(s) * 1 x 4-pin CPU OPT Fan header(s) * 1 x 4-pin AIO Pump header(s) * 4 x 4-pin Chassis Fan header(s) * 1 x VRM heatsink Fan header * 1 x 24-pin Main Power connector * 1 x 8-pin +12V Power connector * 1 x 4-pin +12V Power connector * 3 x M.2 slots (Key M) * 6 x SATA 6Gb/s ports * 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C) * 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports * 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports * 3 x AURA Addressable Gen 2 header(s) * 1 x AURA RGB header(s) * 1 x Clear CMOS header * 1 x CPU Over Voltage jumper * 1 x Front Panel Audio header (AAFP) * 1 x SPI TPM header (14-1pin) * 1 x 20-3 pin System Panel header with Chassis intrude function * 1 x Thermal Sensor header * 1 x Thunderbolt header * 1 x S/PDIF out header |
|
| Port Information | ||
| USB Port | Rear USB: Total 10 ports * 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) * 4 x USB 3.2 Gen 2 port (4 x Type-A) * 5 x USB 2.0 port(s) (4 x Type-A + 1 x USB Type-C®) Front USB: Total 7 ports * 1 x USB 3.2 Gen 1 connector(s) (support(s) USB Type-C®) * 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports * 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
|
| HDMI Port | 1 x HDMI Port | |
| Display Port | 1 x Display Port | |
| LAN Port | 1 x Intel® I225-V 2.5Gb Ethernet | |
| Wi-Fi | 1 x ASUS Wi-Fi Module | |
| Audio Port | 5 x Audio jacks | |
| BIOS Button | 1 x BIOS FlashBack™ button | |
| Other Information | ||
| Special Features | Wireless & Bluetooth Intel® Wi-Fi 6 Special Features Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool II - Pre-mounted I/O shield - SafeSlot AURA Sync - AURA RGB header(s) - Addressable Gen 2 RGB header(s) Software Features ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Two-Way AI Noise Cancelation AI Suite 3 - 5-Way Optimization with AI Overclocking TPU EPU Digi+ VRM Fan Xpert 4 Turbo app - EZ update DAEMON Tools MyAsus WinRAR UEFI BIOS MemTest86 AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey |
|
| Operating System | ||
| Supported OS | Windows® 10 64-bit |
|
| Warranty | ||
| Warranty | 03 Years Warranty |
|

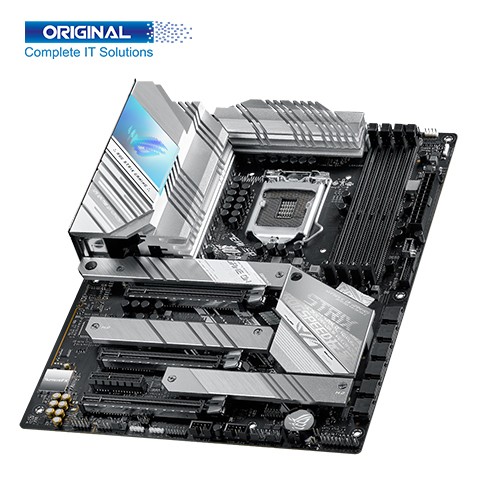

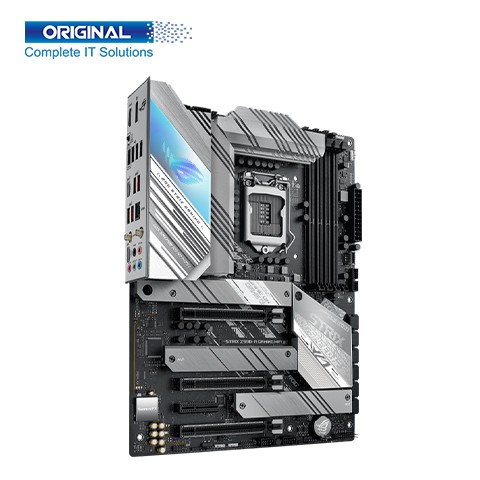

Asus ROG STRIX Z590-A Motherboard comes with 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors, Supports Intel 14 nm CPU, Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, Intel Z590 Chipset with 256 Mb Flash ROM, UEFI AMI BIOS, 30.5 cm x 24.4 cm ATX Form Factor and Intel 1200 socket. Asus ROG STRIX Z590-A Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed DDR4 5333(OC)/ 5133(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, it is Un-buffered Memory, Intel Core i7/i9 processors 10th Gen support 2933/ 2800/ 2666/ 2400/ 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz, Intel Core processors 11th Gen support 3200/ 2933/ 2800/ 2666/ 2400/ 2133 natively.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
Asus ROG STRIX Z590-A DDR4 Motherboard comes with standard Graphics such as 1x Display port 1.4, 1 x HDMI 2.0 Only Intel® 11th processors support DisplayPort 1.4 with max. Resolution of 5120 x 2880 @60Hz, others will only support DisplayPort 1.4 with max. Resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates. Asus ROG STRIX Z590-A Motherboard Expansion PCI Slots is 3 x PCIe 3.0/4.0 x 16 slots, 6 x SATA 6 GB/s, Supports 3 x M.2 slots, Supports RAID 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, 2. Any other 3rd party SSDs installed in PCH-attached slots also various Internal Connectors such as 1 x 24-pin ATX main power connector, 1 x 4 pin CPU fan header, 1 x Thunderbolt 4 (onboard), etc. This Asus ROG STRIX Z590-A Motherboard has 2 x Intel® I225-V 2.5Gb Ethernet LAN controller and 1 x ASUS Wi-Fi Module, 4 USB 3.2 Gen 1, 5 USB 2.0 ports, 1x Display Port, 5 x audio jacks, etc many others. This Asus ROG STRIX Z590-A Motherboard has some special features like Wireless & Bluetooth 2x2 Tri-Band Intel Wi-Fi 6, ROG Exclusive Software like Anti-virus software, ROG CPU-Z also some are ASUS Exclusive Software.
Asus ROG STRIX Z590-A Motherboard Support for Windows 10 64-bit. Enjoy 03 Years Warranty. You can buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
