| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asus |
| Product Code | : | B365M |
| General Information | ||

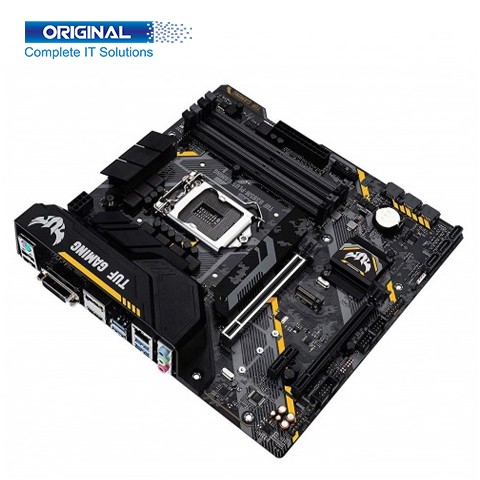

| Model | Asus TUF B365M-Plus | |
| Brand | Asus | |
| Supported Processor | Intel® Socket 1151 8th / 9thGen Intel® Core™, Pentium® Gold and Celeron® Processors | |
| Chipset | Intel® B365 | |
| Socket | Intel® Socket 1151 | |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F3 My Favorites, Last Modified log, F6 Qfan Control, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information | |
| Form Factor | mATX Form Factor9.6 inch x 9.5 inch ( 24.4 cm x 24.1 cm ) | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual Channel | |
| Slot | 4 x DIMM, DDR4 | |
| Supported Bus Speed | DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory | |
| Maximum Memory | 64GB | |
| Graphics Information | ||
| Graphics | * Integrated Graphics Processor- Intel® HD Graphics support * Multi-VGA output support : HDMI/DVI-D/DisplayPort ports * Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz * Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz * Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60 Hz * Maximum shared memory of 1024 MB (for iGPU exclusively) * Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ * Supports up to 3 displays simultaneously |
|
| Expansion Slots | ||
| PCI | * 1 x PCIe 3.0 x16 (x16 mode) * 1 x PCIe 3.0 x16 (max at x4 mode) * 1 x PCIe 3.0/2.0 x1 |
|
| Storage Information | ||
| M.2 | * 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) * 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) |
|
| SATA | 6 x SATA 6Gb/s port(s), gray | |
| RAID | Support Raid 0, 1, 5, 10 | |
| Connector Information | ||
| Internal Connectors | * 1 x Addressable RGB header * 1 x Aura RGB Strip Header * 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen * 1 port(s) (19-pin, moss green) * 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) * 2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices * 1 x COM port(s) connector(s) * 6 x SATA 6Gb/s connector(s) * 1 x CPU Fan connector(s) * 2 x Chassis Fan connector(s) * 1 x S/PDIF out header(s) * 1 x 24-pin EATX Power connector(s) * 1 x 8-pin EATX 12V Power connectors * 1 x Front panel audio connector(s) (AAFP) * 1 x Clear CMOS jumper(s) * 1 x System panel connector |
|

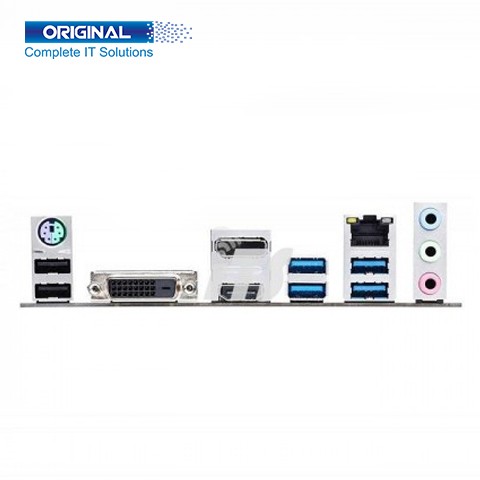

| Port Information | ||
| PS/2 Port | 1 x PS/2 keyboard/mouse combo port(s) | |
| USB Port | * 4 x USB 3.1 Gen 1 Type-A up to 5Gbps * 2 x USB 2.0 |
|
| HDMI Port | 1 x HDMI | |
| DisplayPort | 1 x DisplayPort | |
| DVI-D Port | 1 x DVI-D | |
| LAN Port | * 1 x LAN (RJ45) port(s) * Intel® I219V, 1 x Gigabit LAN * TUF LANGuard |
|
| Audio Port | 1 x 8-channel Audio I/O | |
| Other Information | ||
| Special Features | ASUS TUF PROTECTION - ASUS ESD Guard: Enhanced ESD protection - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: Precision control for stable power - ASUS Safe Slot core+: PCIe slot fortified with a stainless-steel brace ASUS OptiMem： - Optimem (Improved DDR4 stability) ASUS EPU : - EPU ASUS Exclusive Features : - AI Suite 3 - Ai Charger - PC Cleaner ASUS Quiet Thermal Solution : - Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink & M.2 Heat-sink solution - ASUS Fan Xpert 2+ ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds) |
|
| Operating System | ||
| Supported OS | Windows® 10 64-bit | |
| Warranty | ||
| Warranty | 03 Years | |
Asus TUF B365M-Plus GAMING motherboards offer the stable basis wishes on your first build, plus elasticity to develop together along with your ambitions. We have melded all the good stuff that is packed into the latest Build in Intel® Socket 1151 8th / 9thGen Intel® Core™, Pentium® Gold and Celeron® Processors with the necessary design and engineering, so you advantage from industry-leading technologies, extensive cooling controls, including automated system tuning, and immersive onboard audio.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
Asus TUF B365M-Plus Gaming Motherboard comes with Intel Socket 1151 8th / 9thGen Intel Core, Pentium Gold, and Celeron Processors with 1151 Socket, Build in Intel B365 Chipset with 128 Mb Flash ROM, UEFI AMI BIOS, 24.4 cm x 24.1 cm ATX Form Factor. Asus TUF B365M-Plus Micro ATX Motherboard Maximum 64 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed DDR4 2666/ 2400/ 2133 MHz Non-ECC, It is Un-buffered Memory. Asus TUF B365M-Plus Motherboard comes with standard Graphics such as Supports HDMI with max. Resolution 4096 x 2160 @ 30 Hz, Supports DVI-D with max. It Resolution is 1920 x 1200 @ 60 Hz, Supports DisplayPort 1.2 with max. Resolution 4096 x 2304 @ 60 Hz. TUF B365M-Plus Asus Motherboard Expansion PCI Slots is 1 x PCIe 3.0/4.0 x 16 slots, 6 x SATA 6 GB/s port(s), gray, 1 x M.2_2 socket 3, 1 x M.2_1 socket 3, Supported Raid 0, 1, 5, 10 also various Internal Connectors such as 1 x 24-pin ATX main power connector, 1 x 4 pin CPU fan header, 1 x M.2_FAN connector, etc. The Asus TUF B365M-Plus ATX Motherboard has 1 x Intel I225-V 2.5Gb Ethernet ASUS Intel I219V, 1 x Gigabit LAN, 2 USB 3.2 Gen 1, 2 USB 2.0 ports, 1x Display Port, 8-channel audio output, etc many others. Also, Asus TUF B365M-Plus Motherboard has some special features like ASUS Exclusive Software.
Asus TUF B365M-Plus Gaming Motherboard Support for Windows 10 64-bit. You can enjoy 03 Years Warranty and buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
