| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asus |
| Product Code | : | TUF GAMING B560M-PLUS WIFI |
| General Information | ||
| Model | TUF GAMING B560M-PLUS WIFI |
|
| Brand | ASUS | |
| Supported Processor | Support for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold, and Celeron Processors | |
| Chipset | Intel B560 Chipset | |
| Socket | LGA1200 | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | microATX; 24.4cm x 24.4cm | |
| Memory Information | ||
| Memory Types | DDR4 |
|
| Channel | Dual Channel | |
| Slot | 4x DIMM | |
| Supported Bus Speed | Support for DDR4 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory | |
| Max Memory Size | 128 GB | |
| Graphics Information | ||
| Graphics | 1 x DisplayPort 1.4 1 x HDMI 1.4 / 2.0 |
|
| Expansion Slots | ||
| PCI | * Intel® 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot(s)* - Intel® 11th Gen processors support PCIe 4.0 x16 - Intel®10th Gen processors support PCIe 3.0 x16 * Intel® B560 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slots |
|
| Storage Information | ||
| M.2 | 2 x M.2 slots |
|
| SATA | 6 x SATA 6Gb/s ports | |
| Connector Information | ||
| Internal Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 2 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ header |
|
| Port Information | ||

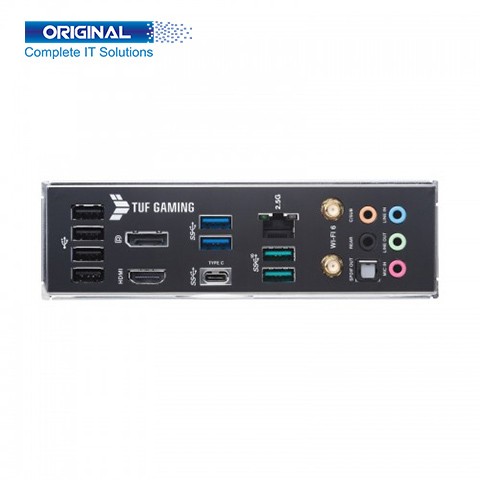

| USB Port | Rear USB (Total 9 ports) 2 x USB 3.2 Gen 2 port(s) (2 x Type-A) 3 x USB 3.2 Gen 1 port(s) (2 x Type-A+ 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen Gen 1 connector(s) (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
|
| HDMI Port | 1 x HDMI™ port | |
| Display Port | 1 x DisplayPort | |
| LAN Port | 1 x Realtek 2.5Gb Ethernet port | |
| Audio Jack | 5 x Audio jacks 1 x Optical S/PDIF out port |
|
| Other Information | ||
| WIFI & BLUETOOTH | Intel Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.0 or later |
|
| Operating System | ||
| Supported OS | Windows® 11 64-bit, Windows® 10 64-bit |
|
| Warranty | ||
| Warranty | 3 Years Warranty |
|

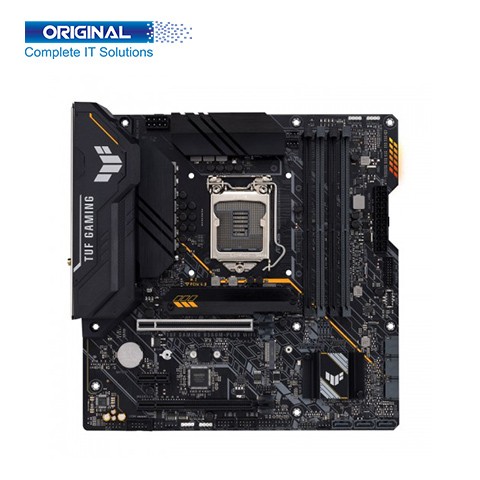

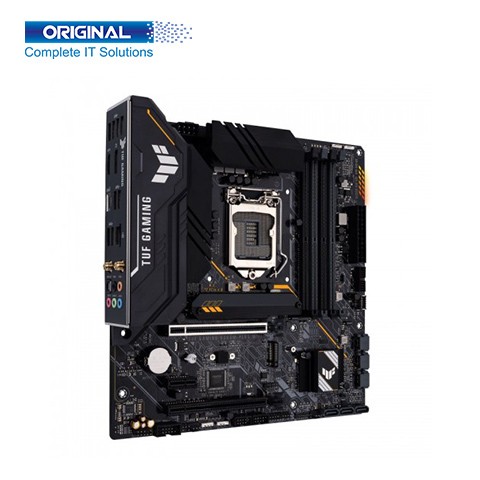

ASUS TUF GAMING B560M-PLUS WIFI Micro ATX Motherboard With more cores’ processors, thermal and power design is more important to ensure the temperature keeps lower. Support for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold, and Celeron Processors. Asus extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPU run at full speed with Asus TUF GAMING B560M-PLUS WIFI Motherboard.
ASUS TUF GAMING B560M-PLUS WIFI Micro ATX Motherboard. Support for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold, and Celeron Processors. Intel B560 Express Chipset. Socket LGA1200. Form Factor microATX; 24.4cm x 24.4cm. Asus TUF GAMING B560M-PLUS WIFI Memory Types DDR4, Dual-Channel. Slot 4 x DIMM. Support for DDR4 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory. Max Memory Size is 128 GB. Graphics is 1 x DisplayPort 1.4, and 1 x HDMI 1.4 / 2.0. PCI is Intel® 11th &10th Gen Processors: 1 x PCIe 4.0/3.0 x16 slot(s), - Intel® 11th Gen processors support PCIe 4.0 x16, - Intel®10th Gen processors support PCIe 3.0 x16, Intel® B560 Chipset: 1 x PCIe 3.0 x16 slot (supports x4 mode), 1 x PCIe 3.0 x1 slots. Storage is 2 x M.2 slots, 6 x SATA 6Gb/s ports. USB Port is Rear USB (Total 9 ports): 2 x USB 3.2 Gen 2 port(s) (2 x Type-A), 3 x USB 3.2 Gen 1 port(s) (2 x Type-A+ 1 x USB Type-C®), 4 x USB 2.0 port(s) (4 x Type-A), Front USB (Total 7 ports): 1 x USB 3.2 Gen Gen 1 connector(s) (support(s) USB Type-C®), 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports, Display Port is 1 x DisplayPort, HDMI Port is 1 x HDMI™ port, LAN Port is 1 x Realtek 2.5Gb Ethernet, Audio Port is 5 x Audio jacks. Supported Operating System Support for Windows® 11, and Windows® 10 64-bit. ASUS TUF GAMING B560M-PLUS WIFI Micro ATX Motherboard has Three years warranty.
