| Special Price | : | ৳34,450 |
| Regular Price(EMI) | : | ৳37,200 |
| Status | : | In Stock |
| Brand | : | Asus |
| Product Code | : | TUF GAMING B650-PLUS |
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।
| General Information | ||
| Model | TUF GAMING B650-PLUS | |
| Brand | Asus | |
| Supported Processor | AMD Ryzen 7000 Series Desktop Processors | |
| Chipset | AMD B650 | |
| Socket | AM5 | |
| Bios | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Memory Information | ||
| Memory Types | DDR5 | |
| Channel | Dual Channel | |
| Slot | 4 DIMMs | |
| Supported Bus Speed | 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory | |
| Maximum Memory | 128GB | |
| Graphics Information | ||
| Graphics | 1 x DisplayPort* |
|
| Expansion Slots | ||
| PCI | AMD Ryzen 7000 Series Desktop Processors |
|
| Storage Information | ||
| M.2 | Total Supports 3 X M.2 Slots And 4 X SATA 6Gb/S Ports |
|
| SATA | Total Supports 3 X M.2 Slots And 4 X SATA 6Gb/S Ports AMD Ryzen™ 7000 Series Desktop Processors M.2_1 Slot (Key M), Type 2242/2260/2280(Supports PCIe 5.0 X4 Mode) M.2_2 Slot (Key M), Type 2242/2260/2280/22110 (Supports PCIe 4.0 X4 Mode) AMD B650 Chipset M.2_3 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 4.0 X4 Mode)** 4 X SATA 6Gb/S Ports | |
| RAID | AMD RAIDXpert2 Technology Supports Both PCIe RAID 0/1/10 And SATA RAID 0/1/10. | |
| Connector Information | ||
| Internal Connector | Fan And Cooling Related |
|
| Port Information | ||

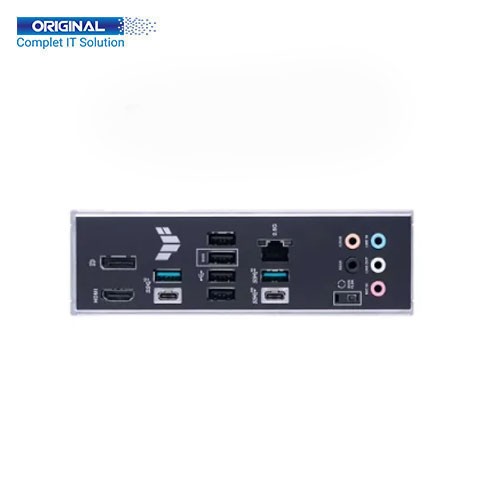

| USB Port | Rear USB (Total 8 ports) |
|
| HDMI Port | 1x HDMI | |
| Display Port | 1x DisplayPort | |
| LAN Port | 1 x Realtek 2.5Gb Ethernet TUF LANGuard | |
| Audio Port | Realtek 7.1 Surround Sound High Definition Audio CODEC
5 x Audio jacks |
|
| Others Information | ||
| Special Features | ASUS TUF PROTECTION |
|
| Bundled Software | ASUS Exclusive Software |
|
| Operating System | ||
| Operating System | Windows 11 64-bit, Windows 10 64-bit | |
| Warranty | ||
| Warranty | 3 Years Warranty | |

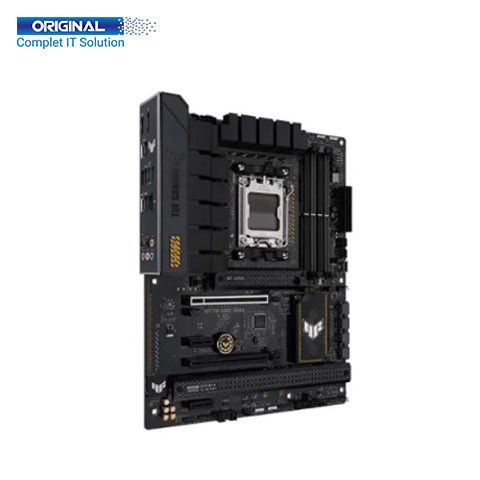

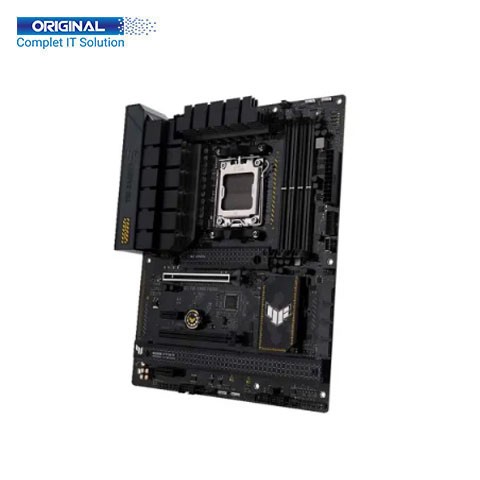

Asus TUF GAMING B650-PLUS DDR5 AM5 ATX Motherboard. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail.
Asus TUF GAMING B650-PLUS DDR5 AM5 ATX Motherboard. It is Supported Processor AMD Ryzen™ 7000 Series Desktop Processors, Chipset AMD B650, Socket AM5, Bios 256 Mb Flash ROM, UEFI AMI BIOS, Form Factor ATX Form Factor, 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ), Memory Types DDR5, Channel Dual Channel, Slot 4 x DIMM, Supported Bus Speed 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory, Maximum Memory 128GB, Graphics 1 x DisplayPort, 1 x HDMI® port, * Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. THis PCI AMD Ryzen™ 7000 Series Desktop Processors, 1 x PCIe 4.0/3.0 x16 slot, AMD B650 Chipset, 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode), 1 x PCIe 4.0/3.0 x1 slot, * Please check PCIe bifurcation table in support, M.2 Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports, AMD Ryzen™ 7000 Series Desktop Processors, M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), AMD B650 Chipset, Internal ConnectorInternal I/O Connectors Fan and Cooling related, 1 x 4-pin CPU Fan header(s), 1 x 4-pin CPU OPT Fan header(s), 1 x 4-pin AIO Pump header(s), 4 x 4-pin Chassis Fan header(s), Power related 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector, Storage related 3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C ), 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports, Miscellaneous, 3 x Addressable Gen 2 header(s), 1 x Aura RGB header(s), 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 20-3 pin System Panel header with Chassis intrude function, 1 x Thunderbolt (USB4) header, USB Port Rear USB (Total 8 ports), 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C), 4 x USB 2.0 port(s) (4 x Type-A), Front USB (Total 7 ports), 1 x USB 3.2Gen 1 connector (supports USB Type-C), 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports, Operating System
