| Price | : | To be announced |
| Status | : | Up Comming |

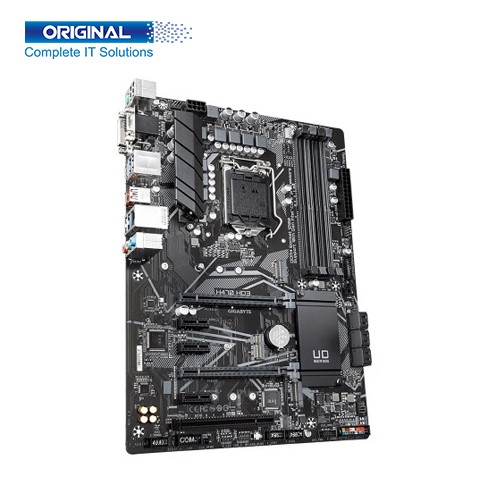

| Brand | : | Gigabyte |
| Product Code | : | H470 HD3 |
| General Information | ||
| Model | H470 HD3 |
|
| Supported Processor | Support for 10th Generation Intel Pentium,Core i3, i5, i7, i9 processors | |
| Chipset | Intel® H470 Express Chipset | |
| Socket | LGA1200 | |
| BIOS | * 1 x 256 Mbit flash * Use of licensed AMI UEFI BIOS * PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 22.5cm | |
| Memory Information | ||
| Memory Types | DDR4 |
|
| Channel | Dual channel | |
| Slot | 4 x DDR4 | |
| Supported Bus Speed | * Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules * Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules * 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory * Dual channel memory architecture * Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) * Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 128 GB | |
| Graphics Information | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: * 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz * 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. * 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 3 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) 1 x PCI slot 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI) |
|
| Storage Information | ||
| M.2 | * 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M_SB) * 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_SB) |
|
| SATA | 6 x SATA 6Gb/s connectors | |
| RAID | Support for RAID 0, RAID 1, RAID 5, and RAID 10 | |
| Connector Information | ||
| Internal Connectors | * 1 x 24-pin ATX main power connector * 1 x 8-pin ATX 12V power connector * 1 x CPU fan header * 3 x system fan headers * 1 x addressable LED strip header * 1 x RGB LED strip header * 6 x SATA 6Gb/s connectors * 2 x M.2 Socket 3 connectors * 1 x front panel header * 1 x front panel audio header * 1 x S/PDIF Out header * 1 x USB 3.2 Gen 1 header * 2 x USB 2.0/1.1 headers * 2 x Thunderbolt™ add-in card connectors * 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) * 1 x serial port header * 1 x Clear CMOS jumper * 1 x Q-Flash Plus button |
|

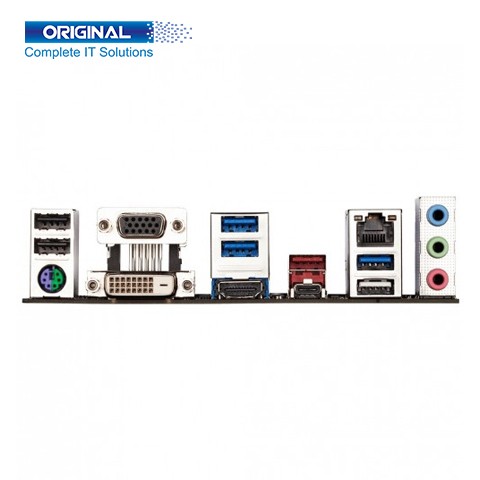

| Port Information | ||
| PS/2 Port | 1 x PS/2 keyboard/mouse port | |
| USB Port | * 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support * 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel * 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) * 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: * 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| HDMI Port | 1 x HDMI port | |
| DVI-D Port | 1 x DVI-D port | |
| D-Sub port | 1 x D-Sub port | |
| LAN Port | Intel® GbE LAN chip (1000 Mbit/100 Mbit) | |
| Audio Port | * Realtek® ALC887 codec * High Definition Audio * 2/4/5.1/7.1-channel |
|
| Operating System | ||
| Supported OS | Support for Windows 10 64-bit |
|
| Warranty | ||
| Warranty | 03 Years Warranty |
|
This Gigabyte H470 HD3 Motherboard comes with Intel Core i3, i5, i7, i9 Processors with 10th Generation Intel Pentium. Has Intel H470 Express Chipset, LGA1200 Socket, Bios is 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 and 30.5cm x 22.5cm Micro ATX Form Factor. This Gigabyte H470 HD3 Motherboard Maximum 64 GB DDR4 Dual Channel Memory, 2 x DDR4 DIMM sockets, Supported Bus Speed Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules, Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules, 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory, Dual channel memory architecture, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules.
This Gigabyte H470 HD3 Motherboard comes with standard Graphics such as 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz, Support for HDMI 1.4 version and HDCP 2.3, Expansion PCI Slots is 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots, 6 x SATA 6Gb/s connectors, 1 x M.2 connector also various Internal Connectors such as 1 x 24-pin ATX main power connector, 1 x CPU fan header, 1 x front panel audio header, etc. This Gigabyte H470 HD3 Motherboard has 4 x USB 3.1 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x HDMI port, 1 x D-Sub port, Realtek GbE LAN chip (1000 Mbit/100 Mbit), and High Definition Audio 2/4/5.1/7.1-channel.
This Gigabyte H470 HD3 Motherboard Support for Windows 10 64-bit. You can enjoy 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
