| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Gigabyte |
| Product Code | : | UD1000GM PG5 |
| General Information | ||
| Model | Gigabyte UD1000GM PG5 | |
| Brand | Gigabyte | |
| Capacity | 1000W | |
| Color | Black | |
| Form Factor | ATX | |
| Type | Intel Form Factor ATX 12V | |
| PFC | Active PFC (>0.9 typical) | |
| Input Voltage | 100-240 Vac (full range) | |
| Input Current | 15-6.5A | |
| Input Frequency | 60-50 Hz | |
| Power Good Signal | 100-150ms | |
| Hold Up Time | >16ms | |
| MTBF | >100,000 hours | |
| Cooling Fan System | 120mm Hydraulic Bearing(HYB)fan | |
| Protections | OVP/OPP/SCP/UVP/OCP/OTP | |
| Connector Information | ||
| ATX | ATX/MB 20+4 Pin x 1 : 610mm*1 | |
| CPU | CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1 | |
| PCI-e | PCI-e 16 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2 |
|
| SATA | SATA x 8 : 600mm+150mm+150mm+150mm*2 | |
| Floppy | 4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1 | |
| Physical Information | ||
| Dimensions | 150 x 140 x 86 mm | |
| Warranty | ||
| Warranty | 10-Year | |

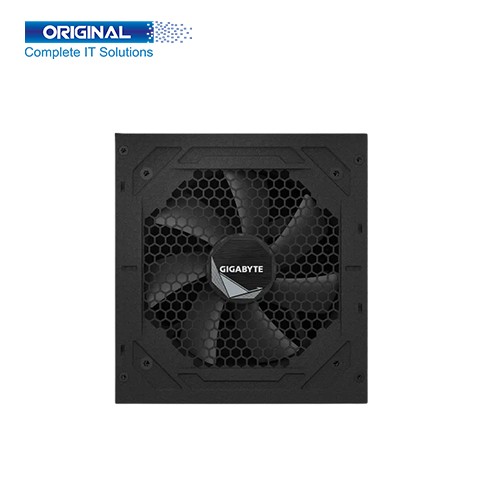

Gigabyte UD1000GM PG5 1000W 80+ Gold Full Modular PSU gives equal Voltage distribution to all components of the CPU. Gigabyte 1000W 80+ Gold Full Modular Power Supply saves up to 90% Efficiency of your CPU.
Gigabyte UD1000GM PG5 1000W 80+ Gold Full Modular PSU Brand is Gigabyte, Capacity 1000W, Color is Black, Form Factor ATX, Type Intel Form Factor ATX 12V. Gigabyte UD1000GM PSU PFC Active PFC (>0.9 typical), Input Voltage 100-240 Vac (full range),Input Current 15-6.5A, Input Frequency 60-50 Hz, Power Good Signal 100-150ms, Hold Up Time >16ms, MTBF >100,000 hours, Cooling Fan System 120mm Hydraulic Bearing(HYB)fan, Protections OVP/OPP/SCP/UVP/OCP/OTP. Gigabyte Gold Full Modular PSU ATX/MB 20+4 Pin x 1 : 610mm*1, CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1, PCI-e 16 Pin x 1: 700mm*1, PCI-e 6+2 Pin x 4 : 600mm+150mm*2, SATA x 8 : 600mm+150mm+150mm+150mm*2, Floppy 4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1 also Dimensions 150 x 140 x 86 mm. Gigabyte UD1000GM PG5 1000W 80+ Gold Full Modular PSU 10-Year Warranty.
