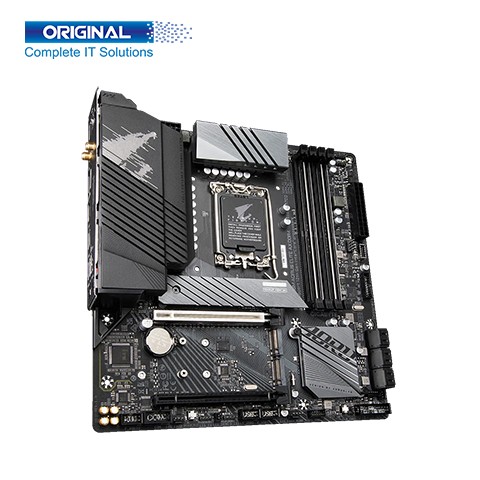

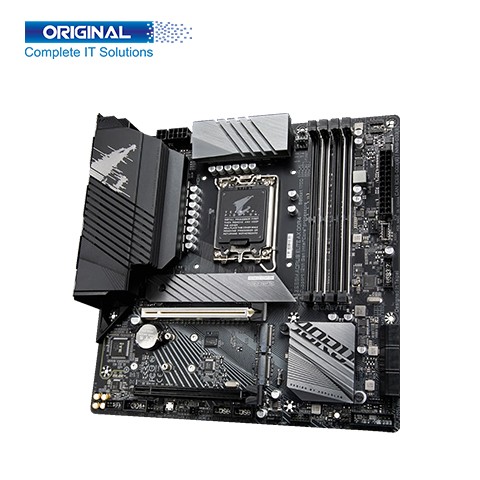

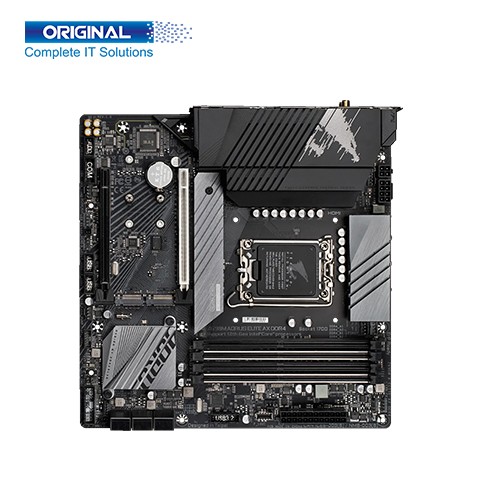

Gigabyte Z690M AORUS ELITE AX DDR4 ATX Motherboard

Description:

Gigabyte Z690M AORUS ELITE AX DDR4 ATX Motherboard

The Gigabyte Z690M AORUS ELITE AX DDR4 ATX Motherboard with the Z690M AORUS gaming motherboard. Its delivery and dominant thermal design, glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake's performance in all its gaming glory. Its ensure maximum Turbo Boost and overclocking performance of Intel's new generation CPU.

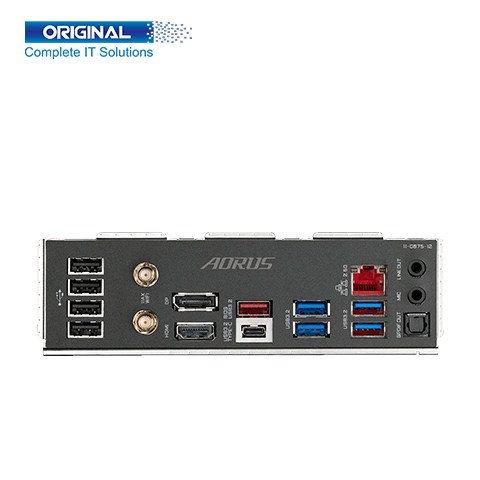

Gigabyte Z690M AORUS ELITE AX DDR4 ATX Motherboard Model is Z690M AORUS ELITE AX. The Brand is Gigabyte. The Motherboard Supported Processor 12th Generation Intel® Core™ i9/Core™ i7/Intel® Core™ i5 processors. Intel® Z690 Express Chipset. LGA1700 socket. BIOS 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. ATX Form Factor; 30.5cm x 24.4cm. Memory Type DDR4, Channel Dual channel, Slot 4 x DDR DIMM, Supported Bus Speed DDR4 5333/ DDR4 5133/DDR4 5000/4933/4800/ 4700/ 4600/ 4500/ 4400/ 4300/4266/ 4133/ 4000/ 3866/ 3800/ 3733/ 3666/ 3600/ 3466/ 3400/ 3333/ 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules. Maximum Memory up to 128 GB. Graphics 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Support for HDMI 2.1 version and HDCP 2.3, Support native HDMI 2.1 TMDS compatible ports, 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz, Support for DisplayPort 1.2 version and HDCP 2.3. PCI. 1 x PCI Express x16 slot, running atx16 (PCIEX16), For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.), 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.). M.2 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU), 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB), 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2Q_SB/M2P_SB). SATA 6 x SATA 6Gb/s connectors. RAID Support for RAID 0, RAID 1, RAID 5, and RAID 10. Internal Connectors 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x 4-pin ATX 12V power connector, 1 x CPU fan header, 1 x water cooling CPU fan header, 3 x system fan headers, 1 x system fan/water cooling pump header, 2 x addressable LED strip headers, 2 x RGB LED strip headers, 4 x M.2 Socket 3 connectors, 6 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C® header, with USB 3.2 Gen 2 support, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 2 x Thunderbolt™ add-in card connectors, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 1 x reset button, 1 x Q-Flash Plus button, 1 x reset jumper, 1 x Clear CMOS jumper. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support, 2 x USB 3.2 Gen 2 Type-A ports (red), 3 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 2 x SMA antenna connectors (2T2R), 1 x HDMI port, 1 x DisplayPort, 1 x RJ-45 port, 1 x optical S/PDIF Out connector, 2 x audio jacks. Support for Windows 11 64-bit, Windows 10 64-bit.

Gigabyte Z690M AORUS ELITE AX DDR4 ATX Motherboard has Three years warranty.
