| General Information |
| Model |
DS-7204HGHI-F1 |
| Brand |
Hikvision |
| Type |
4 Channel |
| Video Information |
| Camera Input |
4 Channel |
| Resolution |
720p/WD1/4CIF/VGA/CIF |
| Decoding Capability |
up to 1080p lite @ 25/30 fp |
| Compression Information |
| Video |
H.264+/H.264 |
| Audio |
G.711u |
| Network Information |
| Network Protocols |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Record Playback Information |
| Storage |
Local HDD |
| Backup |
USB storage device |
| Alarm Information |
| Alarm In/Out |
N/A |
| External Port Information |
| Audio Input |
1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
| HDD |
Up to 6 TB capacity for each disk |
| USB |
Rear panel: 2 × USB 2.0 |
| HDMI |
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Network Interface |
1, RJ45 10M/100M self-adaptive Ethernet interface |
| Power Information |
| Power Supply |
12 VDC |
| Power Consumption |
≤ 8 W |
| Physical Information |
| Dimensions |
260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) |
| Net Weight |
≤ 1 kg (2.2 lb) |
| Environment Information |
| Operating Conditions |
-10 °C to 55 °C (14 °F to 131 °F) |
| Warranty Information |
| Warranty |
1 Year |
Description:

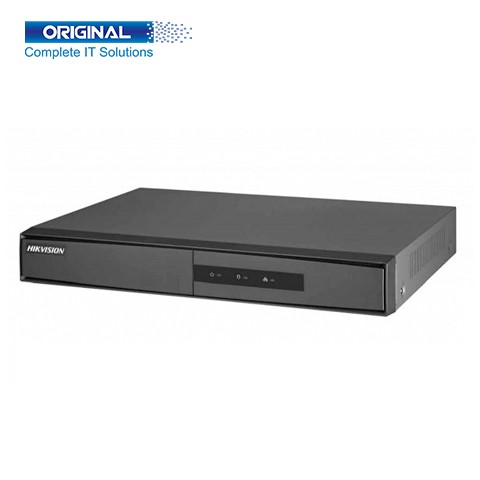

Hikvision DS-7204HGHI-F1 04-Ch Turbo HD 720P DVR
Hikvision DS-7204HGHI-F1 04-Ch Turbo HD 720P DVR (Digital Video Recorder) is an electronic device that records video in digital format to a disk drive, SD memory card, SSD, USB flash drive. Hikvision DS-7204HGHI-F1 04-Ch Turbo HD 720P DVR support for 4HD-TVI, AHD or CVBS cameras + one IP Camera.
For more DVR information Please Check Hikvision DVR. And also if you want to know more different type of IT Product information Please Click here.
Hikvision DS-7204HGHI-F1 04-Ch Turbo HD 720P DVR. The Model is DS-7204HGHI-F1. The Brand is Hikvision. It's Type Turbo HD DVR. Hikvision DS-7204HGHI-F1 Camera Input has 4 channels. Video Resolutio 720p/WD1/4CIF/VGA/CIF, Decoding Capability up to 1080p lite @ 25/30 fp, Video H.264+/H.264, Audio G.711u, Network Protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS, Video Record storage Local HDD, Backup USB storage device, Alarm In/Out No, Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ), Audio Output 1-ch, RCA (Linear, 1 KΩ), HDD Up to 6 TB capacity for each disk, USB Rear panel: 2 × USB 2.0, HDMI 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz.You can get Hikvision DS-7204HGHI-F1 04-Ch Turbo HD 720P DVR at the best price in BD. Hikvision DS-7204HGHI-F1 04-Ch DVR Network Interface 1, RJ45 10M/100M self-adaptive Ethernet interface, Power Supply 12 VDC, Power Consumption ≤ 8 W, Dimensions 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch), Net Weight ≤ 1 kg (2.2 lb). Hikvision Turbo HD 720P DVR Operating Conditions -10 °C to + 55 °C (+14 °F to +131 °F). Hikvision DS-7204HGHI-F1 04-Ch Turbo HD 720P DVR has one year warranty.
