| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | MSI |
| Product Code | : | B460M-A Pro |
| General Information | ||

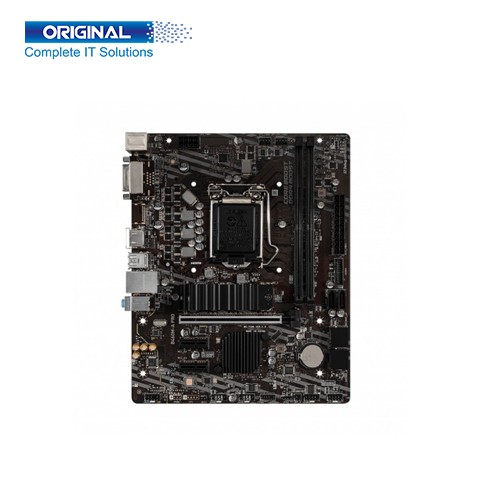

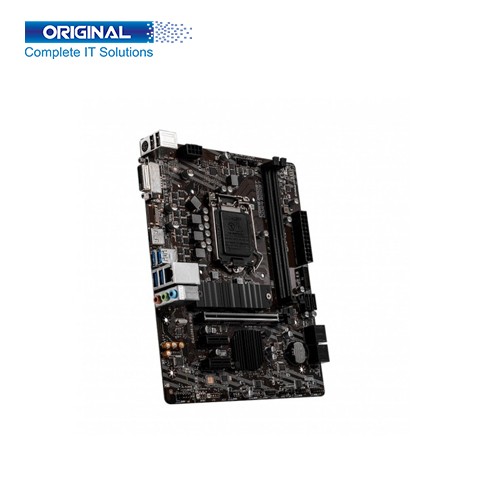

| Model | MSI B460M-A Pro | |
| Brand | MSI | |
| Supported Processor | Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket | |
| Chipset | Intel B460 | |
| Socket | LGA 1200 | |
| BIOS | * 1x 128 Mb flash
* UEFI AMI BIOS
* Multi-language |
|
| Form Factor | Miro-ATX Form Factor 9.3 in. x 7.6 in. (23.6 cm x 19.2 cm) | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual-Channel Architecture | |
| Slot | 2x DDR4 memory slots | |
| Supported Bus Speed | * Intel Core i7/ i9
* Supports up to DDR4 2933 MHz
* Intel Core i5 and below
* Supports up to DDR4 2666 MHz
* Supports non-ECC, un-buffered memory
* Supports Intel Extreme Memory Profile (XMP) |
|
| Maximum Memory | 64GB | |
| Graphics Information | ||
| Graphics | 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz |
|
| Expansion Slots | ||
| PCI | 1x PCIe 3.0 x16 slot 2x PCIe 3.0 x1 slots |
|
| Storage Information | ||
| M.2 | 1x M.2 slot (Key M) Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices |
|
| SATA | 6x SATA 6Gb/s ports | |
| RAID | RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices | |
| Connector Information | ||
| Internal Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x Front panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 4x EZ Debug LED |
|

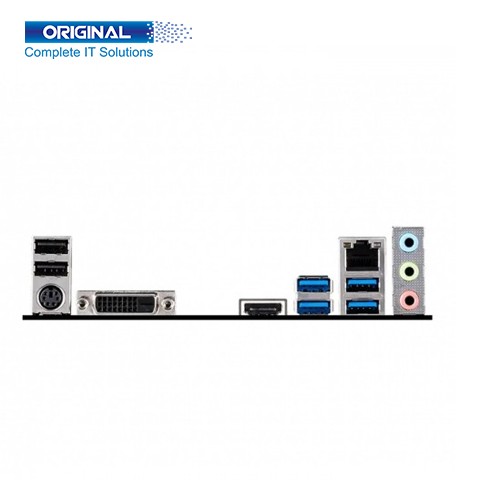

| Port Information | ||
| USB Port | * Intel B460 Chipset
* 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
* 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) |
|
| HDMI Port | 1x HDMI 1.4 port, maximum resolution of 4096x2160 @30Hz | |
| DVI-D Port | 1x DVI-D port, maximum resolution of 1920x1200 @60Hz | |
| LAN Port | 1x Realtek 8111H Gigabit LAN controller | |
| Audio Port | Realtek ALC892 Codec 7.1-Channel High Definition Audio | |
| Operating Systems | ||
| Supported OS | Windows® 10 64-bit | |
| Warranty | ||
| Warranty | 03 Years Warranty | |
MSI B460M-A Pro 10th Gen DDR4 Intel Motherboard series assists clients with working more intelligently by conveying a proficient and useful experience. Including stable usefulness and top-notch get-together, PRO series motherboards give streamlined proficient work processes as well as less investigating and life span. MSI B460M-A Pro Motherboard lets you oversee paces and temperatures for all your framework and CPU fans. All out Fan Control permits you to really look at your essential framework qualities in a worked-on graphical connection point. You can likewise set up temperature focuses for the CPU and motherboard, which will change the fan speeds consequently.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
MSI B460M-A Pro 10th Gen DDR4 Intel Motherboard Brand is MSI, Supported Processor Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket, Chipset Intel B460 Socket LGA 1200, BIOS 1x 128 Mb flash, UEFI AMI BIOS, Multi-language, Form Factor Miro-ATX Form Factor 9.3 in. x 7.6 in. (23.6 cm x 19.2 cm), Memory Types DDR4 Channel Dual-Channel Architecture Slot 2x DDR4 memory slots, Supported Bus Speed Intel Core i7/ i9, Supports up to DDR4 2933 MHz, Intel Core i5 and below, Supports up to DDR4 2666 MHz, Supports non-ECC, un-buffered memory, Supports Intel Extreme Memory Profile (XMP), Maximum Memory 64GB, Graphics 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz,1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, PCI 1x PCIe 3.0 x16 slot,2x PCIe 3.0 x1 slots, M.2, 1x M.2 slot (Key M),Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices, SATA 6x SATA 6Gb/s ports, RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices, Internal Connectors 1x 24-pin ATX main power connector,1x 8-pin ATX 12V power connector,6x SATA 6Gb/s connectors,2x USB 2.0 connectors (supports additional 4 USB 2.0 ports),1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports),1x 4-pin CPU fan connector,1x 4-pin system fan connector,1x Front panel audio connector,2x Front panel connectors,1x Serial port connector,1x Chassis Intrusion connector,1x Clear CMOS jumper,4x EZ Debug LED,USB Port Intel B460 Chipset,6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector),6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors),HDMI Port 1x HDMI 1.4 port, maximum resolution of 4096x2160 @30Hz,DVI-D Port 1x DVI-D port, maximum resolution of 1920x1200 @60Hz,LAN Port 1x Realtek 8111H Gigabit LAN controller, Audio Port Realtek ALC892 Codec 7.1-Channel High Definition Audio. The MSI B460M-A Pro 10th Motherboard Supported OS Windows® 10 64-bit.MSI B460M-A Pro 10th Gen DDR4 Intel Motherboard 03 Years Warranty.
