| Special Price | : | ā§ŗ15,280 |
| Regular Price(EMI) | : | ā§ŗ16,450 |
| Status | : | In Stock |
| Brand | : | MSI |
| Product Code | : | PRO B660M-G |
āĻ āĻ°ā§āĻĄāĻžāĻ° āĻāĻ°āĻžāĻ° āĻĒā§āĻ°ā§āĻŦā§ āĻāĻžāĻ¸ā§āĻāĻŽāĻžāĻ° āĻā§ā§āĻžāĻ° āĻĨā§āĻā§ āĻĒāĻŖā§āĻ¯ā§āĻ° āĻ¸ā§āĻāĻ āĻ¸āĻŽā§āĻĒāĻ°ā§āĻā§ āĻā§āĻ¨ā§ āĻ¨ā§ā§āĻžāĻ° āĻāĻ¨ā§āĻ¯ āĻ āĻ¨ā§āĻ°ā§āĻ§ āĻāĻ°āĻž āĻ¯āĻžāĻā§āĻā§āĨ¤ āĻĒā§āĻ°āĻ¯ā§āĻā§āĻ¤āĻŋ āĻĒāĻŖā§āĻ¯ā§āĻ° āĻŽā§āĻ˛ā§āĻ¯ āĻ āĻ¸ā§āĻĨāĻŋāĻ¤āĻŋāĻļā§āĻ˛ āĻšāĻā§āĻžāĻ° āĻāĻžāĻ°āĻ¨ā§ āĻ¯ā§āĻā§āĻ¨ā§ āĻŽā§āĻšā§āĻ°ā§āĻ¤ā§ āĻŽā§āĻ˛ā§āĻ¯ āĻĒāĻ°āĻŋāĻŦāĻ°ā§āĻ¤āĻ¨ āĻšāĻ¤ā§ āĻĒāĻžāĻ°ā§āĨ¤
| General Information | ||
| Model | MSI PRO B660M-G DDR4 | |
| Brand | MSI | |
| Supported Processor | Supports 12th/ 13th Gen Intel Core Pentium Gold and Celeron Processors | |
| Chipset | Intel B660 chipset | |
| Socket | LGA1700 | |
| BIOS | * 1x 256 Mb flash
* UEFI AMI BIOS
* ACPI 6.4, SMBIOS 3.4
* Multi-language |
|
| Form Factor | * M-ATX Form Factor
* 9.6 in. x 8.7 in. (24.4 cm x 22.0 cm) |
|
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual-Channel | |
| Slot | 2x DDR4 memory slots | |
| Supported Bus Speed | * Supports ADL-s 1R 2133/2666/2933/3200 MHz
* 1DPC 1R Max speed up to 4600+ MHz
* 1DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode |
|
| Maximum Memory | 64GB | |
| Graphics Information | ||
| Graphics | * 1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz * 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz * 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1/2 (PRO B660M-G DDR4) |
|
| Expansion Slots | ||
| PCI | * 1x PCIe 4.0 x16 slot (from CPU)
* 1x PCIe 3.0 x1 slot (from B660 chipset) |
|
| Storage Information | ||
| M.2 | * 2x M.2 slots (Key M) * M2_1 slot (From CPU) * M2_2 slot (From B660 chipset) |
|
| SATA | * 4x SATA 6Gb/s ports (From B660 chipset)
* Supports SATA 6Gb/s |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| Connector Information | ||
| Internal Connectors | -1x 24-pin ATX main power connector -1x 8-pin ATX 12V power connector -4x SATA 6Gb/s connectors -2x USB 2.0 connector (support additional 4 USB ports) -1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports) -1x 4-pin CPU fan connector -2x 4-pin system fan connectorx -1x Front panel audio connector -2x System panel connectors -1x Serial port connector -1x TPM module connector -1x Chassis Intrusion connector -1x Clear CMOS jumper -1x JRGB -2x JRAINBOW -1x Tuning Controller Connector |
|

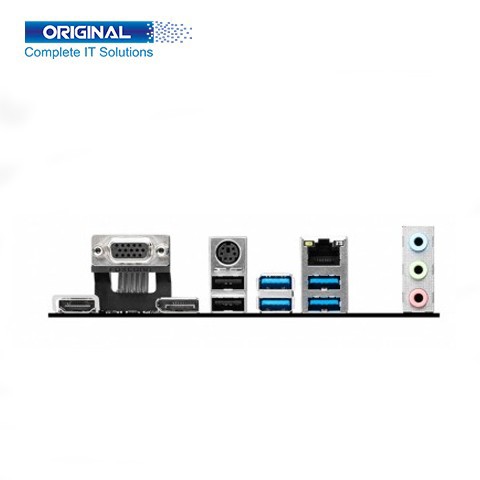

| Port Information | ||
| PS/2 Port | PS/2 Keyboard / Mouse Port |
|
| VGA Port | 1x VGA Port | |
| HDMI Port | 1x HDMI Port | |
| USB Port | * 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector)
* 2x USB 2.0 Type-A ports on the back panel |
|
| Display Port | 1x Display Port | |
| LAN Port | 1x RealtekÂŽ RTL8125BG 2.5Gbps LAN controller | |
| Audio Port | 7.1-Channel High-Definition Audio | |
| Others Information | ||
| LED FEATURE | 4x EZ Debug LED | |
| Operating Systems | ||
| Supported OS | - Microsoft Windows 10 | |
| Warranty | ||
| Warranty | 03 Years Warranty | |

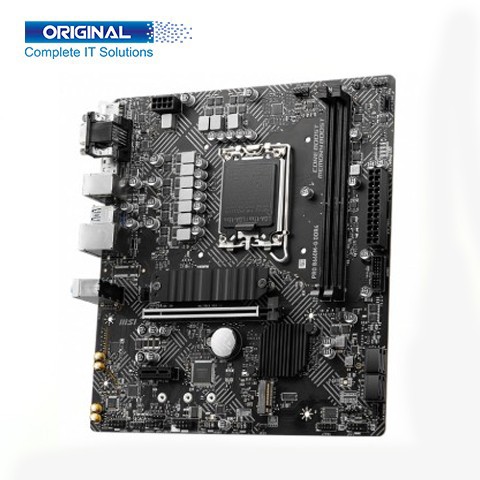

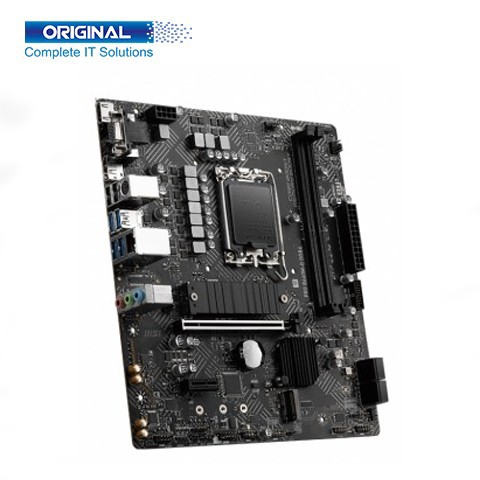

MSI PRO B660M-G DDR4 12th Gen Micro-ATX Motherboard. PRO series Motherboard helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting.
MSI PRO B660M-G DDR4 12th Gen Micro-ATX Motherboard. The Model is MSI PRO B660M-G DDR4, Brand MSI, Supported Processor Supports 12th/ 13th Gen Intel Core Pentium Gold and Celeron Processors, Chipset Intel B660 chipset, Socket LGA1700, BIOS * 1x 256 Mb flash, * UEFI AMI BIOS, * ACPI 6.4, SMBIOS 3.4, * Multi-language, Form Factor * M-ATX Form Factor * 9.6 in. x 8.7 in. (24.4 cm x 22.0 cm), Memory Types DDR4, Channel Dual-Channel, Slot 2x DDR4 memory slots, Supported Bus Speed * Supports ADL-s 1R 2133/2666/2933/3200 MHz, * 1DPC 1R Max speed up to 4600+ MHz, * 1DPC 2R Max speed up to 4000+ MHz, Supports Dual-Channel mode, Maximum Memory 64GB, Graphics * 1x VGA port, supports a maximum, resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz, * 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz, * 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1/2 (PRO B660M-G DDR4). It is PCI * 1x PCIe 4.0 x16 slot (from CPU), * 1x PCIe 3.0 x1 slot (from B660 chipset), M.2 * 2x M.2 slots (Key M), * M2_1 slot (From CPU), * M2_2 slot (From B660 chipset), SATA* 4x SATA 6Gb/s ports (From B660 chipset), * Supports SATA 6Gb/s, RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices, Internal Connectors 1x 24-pin ATX main power connector, -1x 8-pin ATX 12V power connector, -4x SATA 6Gb/s connectors, -2x USB 2.0 connector (support additional 4 USB ports), -1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports), -1x 4-pin CPU fan connector, -2x 4-pin system fan connectorx, -1x Front panel audio connector, -2x System panel connectors, -1x Serial port connector, -1x TPM module connector, -1x Chassis Intrusion connector, -1x Clear CMOS jumper, -1x JRGB, -2x JRAINBOW, -1x Tuning Controller Connector, PS/2 Port PS/2 Keyboard / Mouse Port, VGA Port 1x VGA Port, HDMI Port 1x HDMI Port, USB Port * 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector), * 2x USB 2.0 Type-A ports on the back panel, Display Port 1x Display Port, LAN Port 1x RealtekÂŽ RTL8125BG 2.5Gbps LAN controller, Audio Port 7.1-Channel High-Definition Audio. The MSI PRO B660M-G DDR4 12th Gen Micro-ATX Motherboard has a 03 Years Warranty.
