| Price | : | To be announced |
| Status | : | Up Comming |
| Brand | : | Asus |
| Product Code | : | Prime B560-PLUS |
| General Information | ||
| Model | Prime B560-PLUS |
|
| Brand | Asus | |
| Supported Processor | Support for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold, and Celeron Processors | |
| Chipset | Intel® B560 Chipset | |
| Socket | LGA1200 | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX; 12.0 inch x 9.2 inch (30.5 cm x 23.4cm) | |
| Memory Information | ||
| Memory Types | DDR4 |
|
| Channel | Dual channel | |
| Slot | 4 x DIMM | |
| Supported Bus Speed | Support for DDR4 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered memory | |
| Max Memory Size | 128 GB | |
| Graphics Information | ||
| Graphics | 1 x DisplayPort 1.4 1 x D-Sub 1 x HDMI 1.4/2.0 |
|
| Expansion Slots | ||
| PCI | * Intel® 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot* - Intel® 11th processors support PCIe 4.0 x16 - Intel®10th processors support PCIe 3.0 x16 * Intel® B560 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)* 2 x PCIe 3.0 x1 slots |
|
| Storage Information | ||
| M.2 | 2 x M.2 slots |
|
| SATA | 6 x SATA 6Gb/s ports | |
| Connector Information | ||
| Internal Connectors | Fan and cooling-related 1 x 4-pin CPU Fan header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS jumper 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF out header 1 x 20-3pin System Panel header with Chassis intrude function 1 x SPI TPM header (14-1 pin) 1 x M.2 slot (key E) 1 x Thunderbolt 4 header |
|

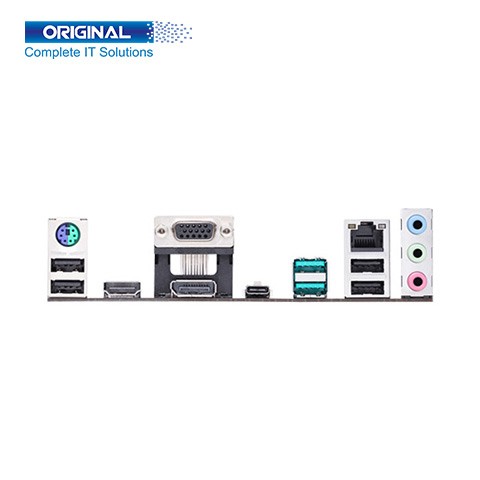

| Port Information | ||
| PS/2 Port | 1 x PS/2 Keyboard/Mouse combo port |
|
| USB Port | Rear USB (Total 7 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1x USB 3.2 Gen 1 port (1 x USB Type-C®) 4 x USB 2.0 ports Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
| HDMI Port | 1 x HDMI port | |
| D-Sub Port | 1 x D-Sub port | |
| LAN Port | 1 x Intel® I219-V 1Gb Ethernet port | |
| Audio Jack | 3 x Audio jacks | |
| DP port | 1 x DP port | |
| Other Information | ||
| WIFI & BLUETOOTH | M.2 slot only(Key E,CNVi & PCIe) |
|
| Operating System | ||
| Supported OS | Windows® 10 - 64 bit |
|
| Warranty | ||
| Warranty | 3 Years Warranty |
|

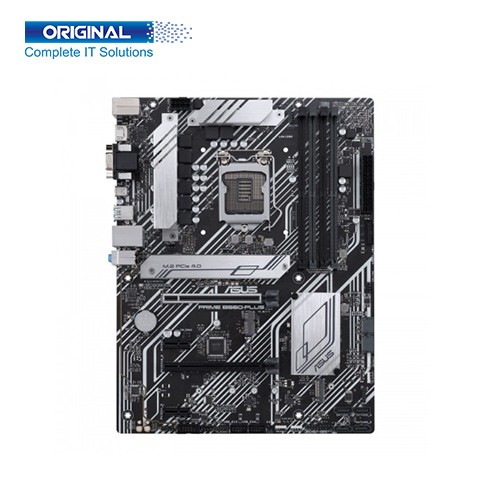

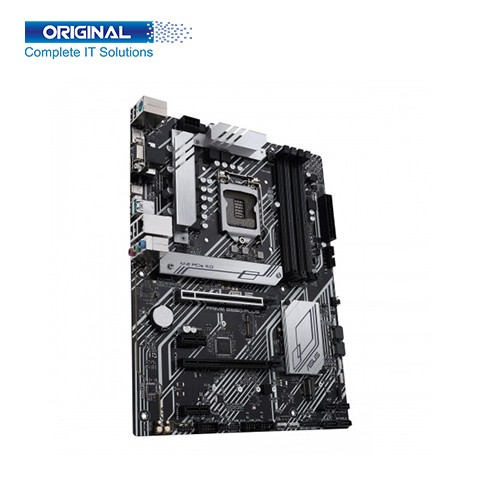

Asus Prime B560-PLUS Intel ATX Motherboard With more cores’ processors, thermal and power design is more critical to ensure the temperature keeps lower. Support for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold, and Celeron Processors. Asus extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPU run at full speed with Asus Prime B560-PLUS Motherboard.
Asus Prime B560-PLUS Intel ATX Motherboard. Support for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold, and Celeron Processors. Intel® B560 Chipset. Socket LGA1200. Form Factor ATX; 12.0 inch x 9.2 inches (30.5 cm x 23.4cm). Asus Prime B560-PLUS Memory Types DDR4, Dual-Channel. Slot 4 x DIMM. Support for DDR4 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered memory. Max Memory Size is 128 GB. Graphics is 1 x DisplayPort 1.4, 1 x D-Sub, 1 x HDMI 1.4/2.0. PCI is Intel® 11th &10th Gen Processors: 1 x PCIe 4.0/3.0 x16 slot, - Intel® 11th processors support PCIe 4.0 x16, - Intel®10th processors support PCIe 3.0 x16, Intel® B560 Chipset: 1 x PCIe 3.0 x16 slot (supports x4 mode), 2 x PCIe 3.0 x1 slots. Storage is 2 x M.2 slots, 6 x SATA 6Gb/s ports. PS/2 Port is 1 x PS/2 Keyboard/Mouse combo port, USB Port is Rear USB (Total 7 ports): 2 x USB 3.2 Gen 2 ports (2 x Type-A), 1x USB 3.2 Gen 1 port (1 x USB Type-C®), 4 x USB 2.0 ports, Front USB (Total 6 ports): 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 port, 2 x USB 2.0 headers support additional 4 USB 2.0 ports, D-Sub Port is 1 x D-Sub port, HDMI Port is 1 x HDMI™ port, LAN Port is 1 x Intel® I219-V 1Gb Ethernet port, Audio Port is 3 x Audio jacks, DP port is 1 x DP port. Supported Operating System Support for Windows® 10 - 64 bit. Asus Prime B560-PLUS Intel ATX Motherboard has Three years warranty.
