| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asus |
| Product Code | : | ProArt Z690-CREATOR WIFI |
| General Information | ||
| Model | ProArt Z690-CREATOR WIFI |
|
| Brand | Asus | |
| Supported Processor | Support for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors | |
| Chipset | Z690 | |
| Socket | LGA1700 | |
| BIOS | 256 Mb | |
| Form Factor | ATX; 30.5cm*24.5cm | |
| Memory Information | ||
| Memory Types | DDR5 |
|
| Channel | Dual Channel | |
| Slot | 4 x DIMM | |
| Supported Bus Speed | Support for DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800MT/s Non-ECC, Un-buffered Memory | |
| Maximum Memory | 128 GB | |
| Graphics Information | ||
| Graphics | 1 x HDMI port 2 x Intel Thunderbolt 4 ports USB Type-C |
|
| Expansion Slots | ||
| PCI | * Intel 12th Gen Processors 2 x PCIe 5.0/4.0/3.0 x16 slot(s) (supports x16 or x8/x8 mode(s)) * Intel Z690 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) |
|
| Storage Information | ||
| M.2 | Supports 4 x M.2 slots |
|
| SATA | 8 x SATA 6Gb/s ports | |
| RAID | Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10 | |
| Connector Information | ||
| Internal Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 5 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 8 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x RTC Battery header 1 x Thermal Sensor header |
|
| Port Information | ||

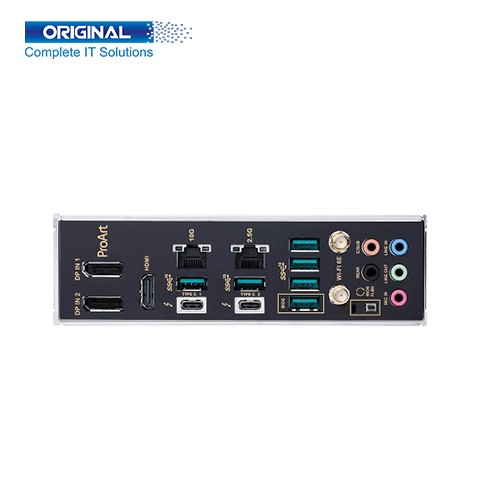

| USB Port | Rear USB:Total 8 ports 2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support 6 x USB 3.2 Gen 2 port(s) (6 x Type-A) Front USB:Total 7 ports 1 x USB 3.2 Gen 2x2 connector(s) (support(s) USB Type-C® with 60W PD/QC4+) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
|
| HDMI Port | 1 x HDMI port | |
| Display Port | 2 x DisplayPort (Input only) | |
| LAN Port | 1 x Intel® 2.5Gb Ethernet 1 x Marvell® 10Gb Ethernet |
|
| Audio Jack | Audio Chipset Realtek S1220A Audio Channel 7.1 |
|
| BIOS button | 1 x BIOS FlashBack™ button | |
| Other Information | ||
| WIFI & BLUETOOTH | Intel Wi-Fi 6E Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.2 hardware ready |
|
| Operating System | ||
| Supported OS | Windows® 11, Windows® 10 64-bit |
|
| Warranty | ||
| Warranty | 3 Years Warranty |
|

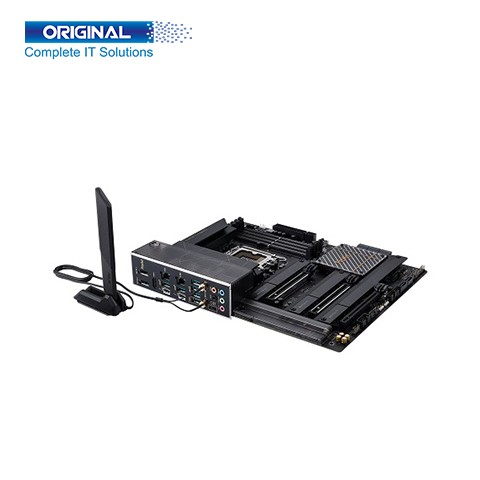

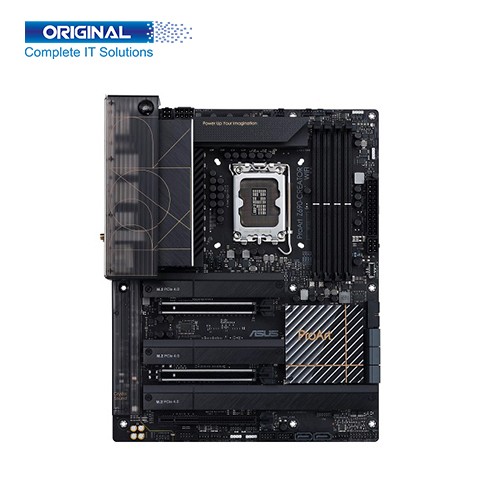

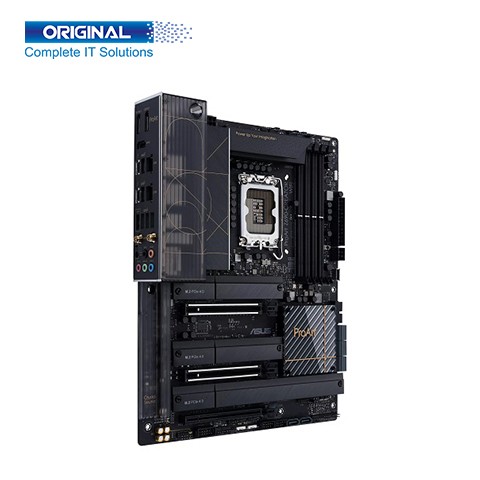

Asus ProArt Z690-CREATOR WIFI 12th Gen ATX Motherboard With more cores’ processors, thermal and power design is more important to ensure the temperature keeps lower. Support for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Asus extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPU run at full speed with Asus ProArt Z690-CREATOR WIFI Motherboard.
Asus ProArt Z690-CREATOR WIFI 12th Gen ATX Motherboard. Support for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Z690 Chipset. Socket LGA1700. Form Factor ATX; 30.5cm x 24.4cm. Asus ProArt Z690-CREATOR WIFI Memory Types DDR5, Dual-Channel. Slot 4 x DIMM. Support for DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 MT/s Non-ECC, Un-buffered Memory. Maximum Memory 128 GB. Graphics is 1 x HDMI port, 2 x Intel Thunderbolt 4 ports USB Type-C. PCI is Intel 12th Gen Processors: 2 x PCIe 5.0/4.0/3.0 x16 slot(s) (supports x16 or x8/x8 mode(s)), Intel Z690 Chipset: 1 x PCIe 3.0 x16 slot (supports x4 mode). Storage Supports 4 x M.2 slots, 8 x SATA 6Gb/s ports. USB Port is Rear USB: Total 8 ports, 2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support, 6 x USB 3.2 Gen 2 port(s) (6 x Type-A), Front USB: Total 7 ports: 1 x USB 3.2 Gen 2x2 connector(s) (support(s) USB Type-C® with 60W PD/QC4+), 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports, Display Port is 2 x DisplayPort (Input only), HDMI Port is 1 x HDMI port, LAN Port is 1 x Intel® 2.5Gb Ethernet, 1 x Marvell® 10Gb Ethernet, Audio Port is Audio Chipset Realtek S1220A, Audio Channel 7.1. Supported Operating System Support for Windows® 11 64-bit, and Windows® 10 64-bit. Asus ProArt Z690-CREATOR WIFI 12th Gen ATX Motherboard has Three years warranty.
