| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asus |
| Product Code | : | Rog Strix X570-F |
| General Information | ||

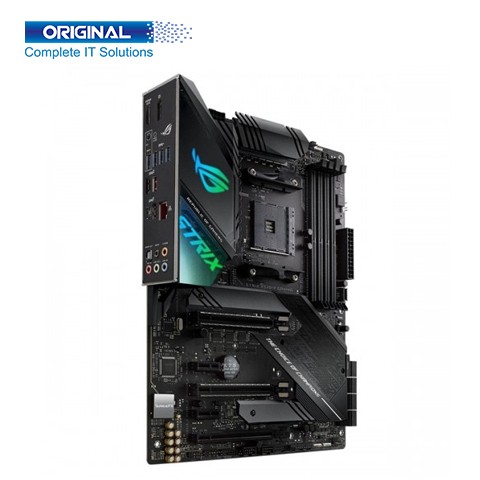

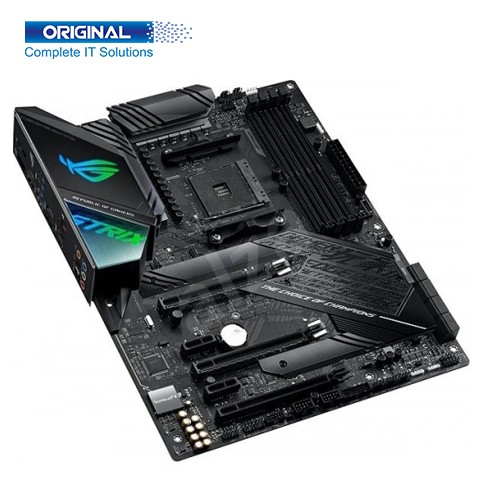

| Model | Asus ROG STRIX X570-F |
|
| Brand | Asus | |
| Supported Processor | AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors | |
| Chipset | AMD X570 | |
| Socket | AM4 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2. | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | |
| Memory Information | ||
| Memory Types | DDR4 |
|
| Channel | Dual Channel | |
| Slot | 4 x DDR4 DIMM | |
| Supported Bus Speed | 4400(O.C) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3600(O.C.) / 3400(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz ECC and non-ECC, Un-buffered Memory | |
| Maximum Memory | 128 GB | |
| Graphics Information | ||
| Graphics | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Multi-VGA output support : HDMI/DisplayPort ports * Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz * Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz Supports AMD 2-Way CrossFireX™ Technology Supports NVIDIA® 2-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology |
|
| Expansion Slots | ||
| PCI | 1 x PCIe 4.0 x16 (max at x4 mode) *1 2 x PCIe 4.0 x1 2 x PCIe 4.0 x16 (x16 or dual x8) AMD X570 chipset 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 2 x PCIe 3.0 x16 (x16 or dual x8) 1 x PCIe 3.0 x16 (x8 mode) |
|
| Storage Information | ||
| M.2 | 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support |
|
| SATA | 8 x SATA 6Gb/s port(s), | |
| RAID | Support Raid 0, 1, 10 | |
| Connector Information | ||
| Internal Connectors | * 1 x PCH_FAN * 1 x AAFP connector * 2x Aura RGB Strip Header(s) * 2 x Addressable Gen 2 header(s) * 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) * 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support * 1 x SPI TPM header * 8 x SATA 6Gb/s connector(s) * 1 x CPU Fan connector(s) * 1 x CPU OPT Fan connector(s) * 2 x Chassis Fan connector(s) * 1 x AIO_PUMP connector * 1 x W_PUMP+ connector * 1 x 24-pin EATX Power connector(s) * 1 x 8-pin ATX 12V Power connector(s) * 1 x 4-pin ATX 12V Power connector(s) * 1 x Front panel audio connector(s) (AAFP) * 1 x Thermal sensor connector(s) * 1 x Clear CMOS jumper(s) * 1 x Node Connector(s) * 1 x System panel connector * 1 x T_Sensor Connector * 1 x M.2 Fan Header * 1 x USB 3.2 Gen 2 (up to 10Gbps) connector * 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports |
|
| Port Information | ||
| USB Port | 3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, ) 4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A+1 x Type-C) 2 x USB 3.2 Gen 1 port(s) (2 at mid-board) AMD X570 chipset : 1 x USB 3.2 Gen 2 front panel connector port(s) 4 x USB 2.0 port(s) (4 at mid-board) |
|
| LAN Port | Intel® I211-AT, 1 x Gigabit LAN Controller(s)Anti-surge LANGuardROG GameFirst Technology | |
| Audio Port | * Supports up to 32-Bit/192kHz playback SupremeFX8-Channel High Definition Audio CODEC S1220A * Dual OP Amplifiers * Sonic Studio III + Sonic Studio Link * Impedance sense for front and rear headphone outputs * Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking * High quality120dBSNR stereo playback outputand113dBSNR recording input * SupremeFX Shielding Technology Audio Feature : * Optical S/PDIF out port(s) at back panel * Sonic Radar III * 5 x Audio jack(s) |
|
| Other Information | ||
| Special Features | ROG Exclusive Features * Overwolf ROG Exclusive Software * RAMCache III * CPU-Z * GameFirst V Special Features * Addressable Gen 2 Header * ASUS NODE : hardware control interface * BIOS FlashBack™ Button * Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. * ESD Guards on LAN, Audio,and USB ports * USB BIOS FlashBack™ AURA : TPU * Auto Tuning, TurboV, GPU Boost 5-Way Optimization by Dual Intelligent Processors 5 Gamer´s Guardian: * DRAM Overcurrent Protection * Stainless Steel Back I/O * Highly Durable Components * DIGI+ VRM * SafeSlot ASUS EPU : * EPU ASUS Exclusive Features : * AI Suite 3 * Ai Charger ASUS EZ DIY : * ASUS CrashFree BIOS 3 * ASUS EZ Flash 3 ASUS Q-Design : * ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) * ASUS Q-Slot * ASUS Q-DIMM Gaming Aesthetics : * AURA-RGB Lighting |
|
| Operating System | ||
| Supported OS | Windows® 10 64-bit |
|
| Warranty | ||
| Warranty | 03 Years Warranty |
|
Asus ROG STRIX X570-F Motherboard comes with AMD AM4 Socket 3rd and 2nd AMD Ryzen/2nd AMD Ryzen with Radeon Vega Graphics Processors, AMD X570 Chipset with 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2, 30.5 cm x 24.4 cm ATX Form Factor. Asus ROG STRIX X570-F Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3600(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz ECC and non-ECC, Un-buffered Memory.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
Asus ROG STRIX X570-F gaming Motherboard comes with standard Graphics such as Integrated Graphics in the 2nd and 3rd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors, Supports HDMI 2.0b with a maximum resolution of 4096 x 2160 @ 60 Hz, Supports DisplayPort 1.2 with max. Resolution 4096 x 2160 @ 60 Hz. ROG STRIX X570-F Asus Motherboard Expansion PCI Slots is 1 x PCIe 4.0 x 16 slots, 8 x SATA 6 GB/s, 1 x M.2_1 socket 3 Supports Support Raid 0, 1, 10 also various Internal Connectors such as 1 x 24-pin ATX main power connector, 1 x 4 pin CPU fan header, 1 x M.2_FAN connector, etc. The Asus ROG STRIX X570-F AMD Motherboard has Realtek® L8200A ASUS Turbo LAN Utility TUF LANGuard, 2 USB 3.2 Gen 1, 4 USB 2.0 ports, 1x Display Port, Supports up to 32-Bit/192kHz playback SupremeFX8-Channel High Definition Audio, etc many others. This Asus X570-F Motherboard has some special features like Gaming Aesthetics - AURA-RGB Lighting, ROG Exclusive Software, Auto Tuning, TurboV, and GPU Boost 5-Way Optimization by Dual Intelligent Processors 5. Asus ROG STRIX X570-F Motherboard Support for Windows 10 64-bit. You can enjoy a 03 Years Warranty.
