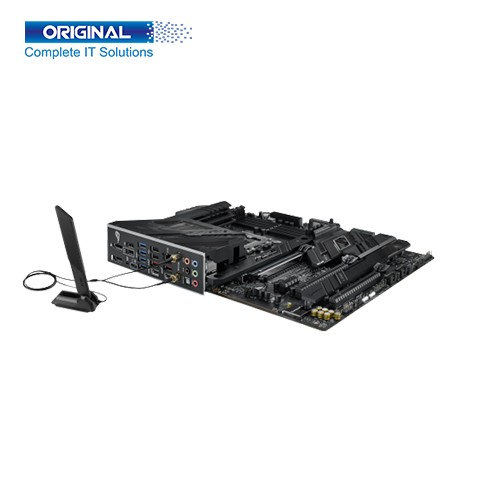

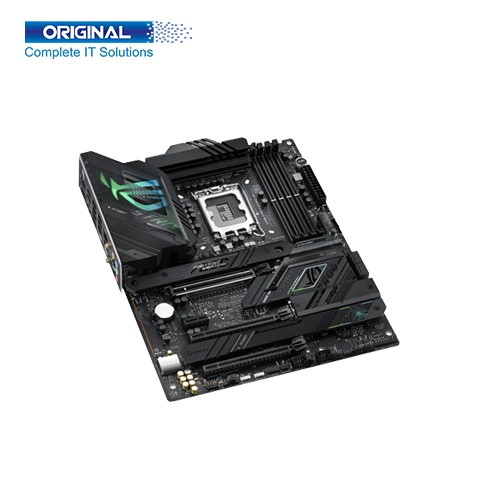

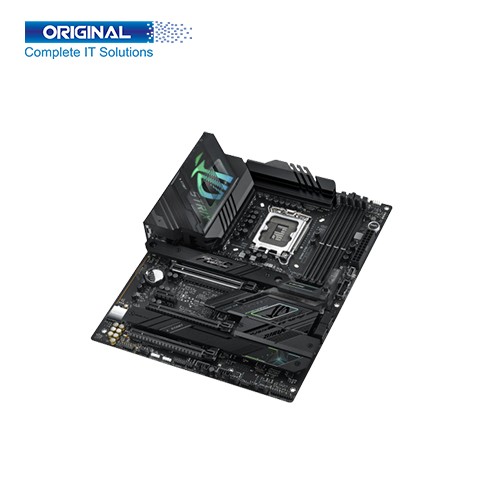

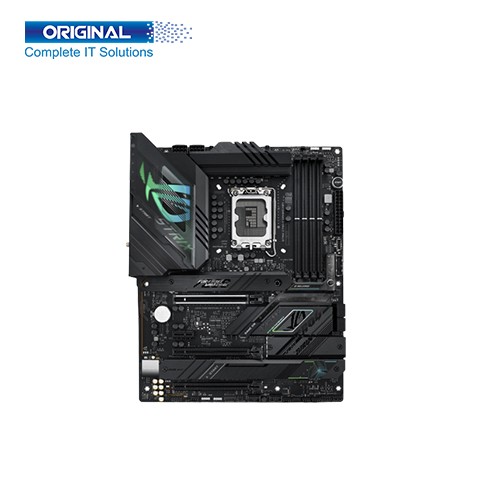

ASUS ROG STRIX Z790-F GAMING WiFi 13th & 12th Gen Motherboard

Description:

ASUS ROG STRIX Z790-F GAMING WiFi 13th & 12th Gen Motherboard

ASUS ROG STRIX Z790-F GAMING WiFi 13th & 12th Gen Motherboard with more cores’ processors, thermal and power design is more important to ensure the temperature keeps lower. Support for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Asus extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPU run at full speed with Asus ROG STRIX Z790-F Motherboard.

ASUS ROG STRIX Z790-F GAMING WiFi 13th & 12th Gen Motherboard Brand is ASUS, Supported Processor, Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors, Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, Chipset Intel Z790 Chipset, Socket LGA1700, BIOS 256 Mb Flash ROM, UEFI AMI BIOS, Form Factor ATX 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ), Memory Types DDR5, Channel Dual Channel, Slot 4 x DIMM Supported Bus Speed 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel Extreme Memory Profile (XMP), OptiMem II, Maximum Memory 128GB, Graphics 1 x DisplayPort (Supports max. 8K@60Hz as specified in DisplayPort 1.4.), 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1.), PCI Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot, Intel Z790 Chipset, 2 x PCIe 4.0 x16 slots (support x4 mode), 1 x PCIe 3.0 x1 slot, M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), SATA 4 x SATA 6Gb/s ports, RAID Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.ASUS ROG STRIX Z790-F Internal Connectors Fan and Cooling related 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers, Power related 1 x 24-pin Main Power connector, 2 x 8-pin +12V Power connectors, Storage related 4 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 30W PD Fast-charge), 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports, Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header, 1 x CPU Over Voltage jumper, 1 x Front Panel Audio header (AAFP), 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Start button, 1 x Thermal Sensor header, 1 x Thunderbolt header, USB Port Rear USB (Total 12 ports), 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C), 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C), 4 x USB 3.2 Gen 1 ports (4 x Type-A), 4 x USB 2.0 ports (4 x Type-A), Front USB (Total 7 ports), 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 30W PD Fast-charge), 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports, HDMI Port 1 x HDMI port, Display Port 1 x DisplayPort, LAN Port 1 x Intel 2.5Gb Ethernet, ASUS LANGuard, Audio Jack 5 x Gold-plated audio jacks.ASUS ROG STRIX Z790-F Supported OS Windows 11, Windows 10 64-bit also Special Features Extreme Engine Digi+ 5K Black Metallic Capacitors, ASUS Q-Design, M.2 Q-Latch, PCIe Slot Q-Release, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot, ASUS Thermal Solution, M.2 heatsink backplate, M.2 heatsink, VRM heatsink design, ASUS EZ DIY, BIOS FlashBack™ button, BIOS FlashBack™ LED, Clear CMOS button, CPU Socket lever protector, ProCool II, Pre-mounted I/O shield, SafeSlot, SafeDIMM, Aura Sync, Aura RGB header, Addressable Gen 2 headers, Front Panel USB 3.2 Gen 2x2 with PD Fast-charge Support, Support: up to 30W charging, Output: 5/9V max. 3A, 12V max. 2.5A, Compatible with PD3.0. ASUS ROG STRIX Z790-F GAMING WiFi 13th & 12th Gen Motherboard 3 years Warranty.
