ORIGINAL STORE LTD.

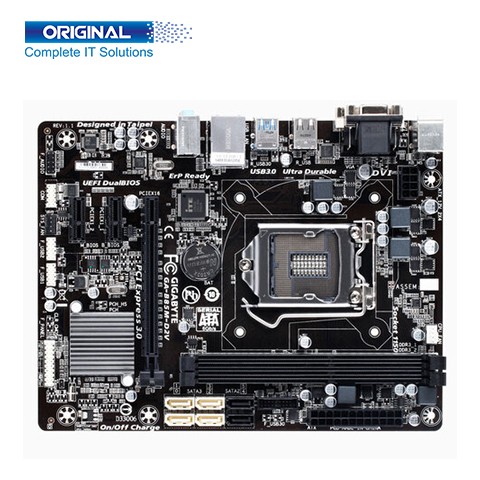

Gigabyte B85M D2V DDR3 RAM 4th Gen Intel LGA1150 Socket Motherboard

Price :           To be announced
Status :           Out of Stock
Brand :           Gigabyte
Product Code :           B85M

Short Details:

  • • Model: Gigabyte B85M D2V
  • • Chipset: Intel® B85 Express Chipset
  • • Form Factor: Micro ATX Form Factor; 22.6cm x 17.4cm
  • • Memory Types: DDR3

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model

Gigabyte B85M D2V

Supported Processor

4th Gen Intel Pentium , Core i3 , i5 , i7 , i9 Processor

Chipset Intel® B85 Express Chipset
Socket LGA1150
Form Factor Micro ATX Form Factor; 22.6cm x 17.4cm
BIOS
  1. 2 x 32 Mbit flash
  2. Use of licensed AMI EFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Memory Information
Memory Types

DDR3

Channel Dual channel
Slot 2 x 1.5V DDR3 DIMM
Supported Bus Speed DDR3 1600/1333 MHz
Maximum Memory 16 GB
Graphics Information
Graphics

Integrated Graphics Processor - Intel® HD Graphics support:

  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200
  2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
    * The DVI-D port does not support D-Sub connection by adapter.
  3. Maximum shared memory of 1 GB
Expansion Slots
PCI
  1. 1 x PCI Express x16 slot, running at x16
    (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
  2. 2 x PCI Express x1 slot
    (All PCI Express x1 slots conform to PCI Express 2.0 standard.)
Storage Information
SATA
  1. 4 x SATA 6Gb/s connectors (SATA3 0~SATA3 3)
  2. 2 x SATA 3Gb/s connectors (SATA2 4~SATA2 5)
Connector Information
Internal Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 4 x SATA 6Gb/s connectors
  4. 2 x SATA 3Gb/s connectors
  5. 1 x CPU fan header
  6. 1 x system fan header
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x USB 3.0/2.0 header
  10. 2 x USB 2.0/1.1 headers
  11. 1 x serial port header
  12. 1 x Clear CMOS jumper

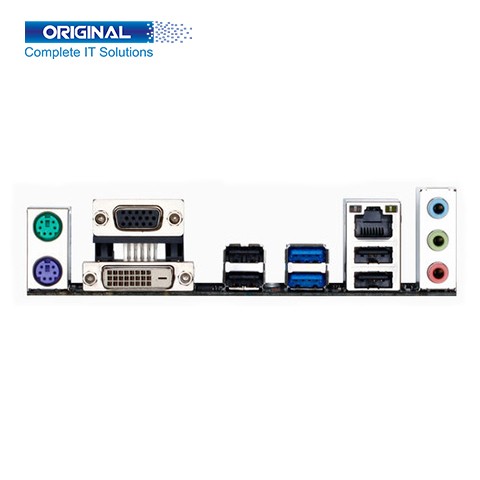

Port Information
PS/2 Port
  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
USB Port
  1. 2 x USB 3.0/2.0 ports
  2. 4 x USB 2.0/1.1 ports
D-Sub Port
  1. 1 x D-Sub port
LAN Port
  1. Realtek® GbE LAN chip (10/100/1000 Mbit)
  2. 1 x RJ-45 port
Audio Port 3 x audio jacks (Line In, Line Out, Mic In)
Operating System
Supported OS
  1. Support for Windows 10/8.1/8/7
Warranty
Warranty

03 Years Warranty

Description:


Gigabyte B85M D2V DDR3 4th Gen Micro ATX Motherboard



This Gigabyte B85M D2V Motherboard comes with Support for 4th Gen Intel Core i7/i5/i3 Pentium Celeron processors in the LGA1150 package, Chipset Intel B85, Socket LGA1150, Bios is 2 x 32 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0,  2. cm x 17.4cm M-ATX Form Factor. Gigabyte B85M D2V Motherboard Maximum 16 GB DDR3 Dual Channel Memory, 2 x DDR3 DIMM sockets, Supported Bus Speed DDR3 1600/1333 MHz.


Gigabyte B85M D2V DDR3 Motherboard comes with standard Graphics such as 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz, The DVI-D port does not support D-Sub connection by the adapter, 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note), Support for HDMI 2.0 version and HDCP 2.2. (Note). B85M D2V Gigabyte Motherboard Expansion PCI slot is 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots also various Internal Connectors such as 4 x 24-pin ATX main power connector, 4 x SATA 6Gb/s connectors, 1 x CPU fan header, 1 x front panel audio header, etc. Gigabyte Motherboard has 2 x USB 2.0/1.1 ports, 1 x HDMI port, 1 x D-Sub port, Realtek GbE LAN  (10/100/1000 Mbit), and High Definition Audio with 3 x audio jacks.


This Gigabyte B85M D2V Motherboard Support for Windows 10/8.1/8/7. You can enjoy a 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
