| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | MSI |
| Product Code | : | MAG A520M Vector |
| General Information | ||
| Model | MSI MAG A520M Vector WiFi | |
| Brand | MSI | |
| Supported Processor | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors | |
| Chipset | AMD A520 Chipset | |
| Socket | AM4 | |
| Form Factor | Micro-ATX | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual-channel | |
| Slot | 2x DDR4 memory slots | |
| Supported Bus Speed | * Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
* Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE |
|
| Maximum Memory | 64GB | |
| Graphics Information | ||
| Graphics | * 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @60Hz 1 2 Support for HDMI™ 1.4 version, HDCP 1.4 & 2.3 * 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1 * Maximum shared memory of 16GB |
|
| Expansion Slots | ||
| PCI | * 1x PCIe x16 slot (PCI_E2) 1 * 2x PCIe 3.0 x1 slots |
|
| Storage Information | ||
| M.2 | * 1x M.2 slots (Key M)
* M2_1 slot (from AMD processor) |
|
| SATA | * 4x SATA 6Gb/s ports
* Supports SATA 6Gb/s |
|
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices | |
| Connector Information | ||
| Internal Connectors | * 1x 24-pin ATX main power connector * 1x 8-pin ATX 12V power connector * 4x SATA 6Gb/s connectors * 1x Serial port connector * 1x M.2 slot (M-Key) * 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) * 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) * 1x 4-pin CPU fan connector * 1x 4-pin system fan connector * 1x Front panel audio connector * 2x System panel connectors * 1x Chassis Intrusion connector * 1x 4-pin RGB LED connector * 1x 3-pin RAINBOW LED connector * 1x TPM module connector * 1x Clear CMOS jumper |
|

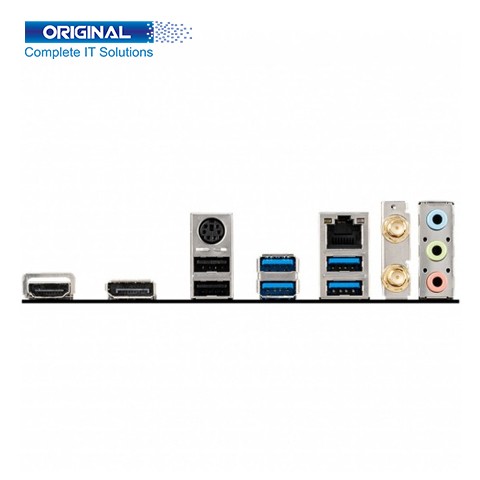

| Port Information | ||
| PS/2 Port | PS/2 Keyboard / Mouse Port | |
| USB Port | * AMD A520 Chipset
* 2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
* 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
* AMD Processor
* 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
|
| HDMI Port | 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz | |
| Display Port | 1x DisplayPort supports a maximum resolution of 4096x2160 @60Hz | |
| LAN Port | 1x Realtek® RTL8111H LAN controller | |
| Audio Port | * Realtek® ALC892/ALC897 Codec
* 7.1-Channel High Definition Audio |
|
| Special Features | ||
| Warless Lan & Bluetooth | *Intel® Dual Band Wireless-AC 3168 *Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed. *Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2 |
|
| Operating Systems | ||
| Supported OS | Support for Windows® 10 64-bit | |
| Warranty | ||
| Warranty | 03 Years Warranty | |
MSI MAG A520M Vector WiFi 3rd Gen AM4 Micro ATX Motherboard comes with AMD Socket AM4, AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors, Chipset AMD A520, AM4 Socket with ATX Form Factor. This MSI MAG A520M Vector WiFi Motherboard Maximum 64 GB DDR4 Dual Channel Memory, 2 x DDR4 DIMM sockets, Supported Bus Speed Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC, Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4600+ MHz by A-XMP OC MODE.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
MSI MAG A520M Vector WiFi 3rd Gen AM4 Micro ATX Motherboard comes with standard Graphics such as a 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2 Support HDCP 1.4 & 2.3, 1x DisplayPort supports a maximum resolution of 4096x2160 @60Hz 1 Maximum shared memory of 16 GB. It is MSI MAG A520M Vector WiFi 3rd Gen Motherboard MAG A520M Vector WiFi MSI Motherboard Expansion PCI slot is 1 x PCI Express x16 slot, 2x PCIe 3.0 x1 slots, 4 x SATA 6 GB/s connectors, and 1 x M.2 connector, Support for RAID 0, RAID 1. This is MSI A520M Vector WiFi 3rd Gen Motherboard RAID 10 devices also various Internal Connectors such as 1 x 24-pin ATX main power connector, 1 x 4 pin CPU fan header, 1 x front panel audio connector, etc. The MSI MAG A520M Vector WiFi AMD Motherboard has 2 x USB 3.2 Gen 2 10Gbps, 6x USB 2.0 ports, 1 x HDMI port maximum resolution of 4096x2160 @24Hz, 1x Realtek® RTL8111H LAN controller, and High Definition Audio with 7.1-Channel High Definition Audio, Intel Dual Band Wireless-AC 3168, Supports Wi-Fi 802.11 a/b/g/n/ac, dual-band (2.4GHz, 5GHz) up to 433 Mbps speed, Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0, BLE,4.2. This MSI MAG A520M Vector WiFi Motherboard Support for Windows 10 64-bit. You can enjoy 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
