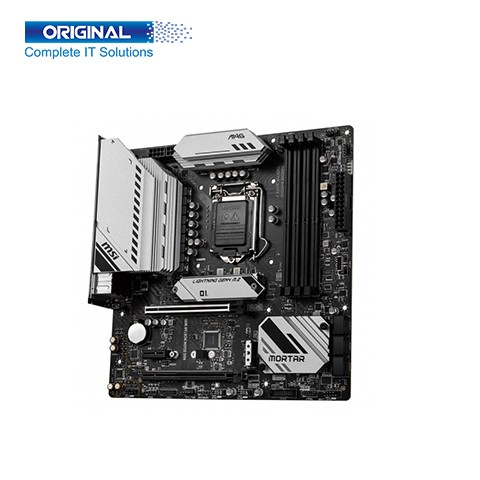

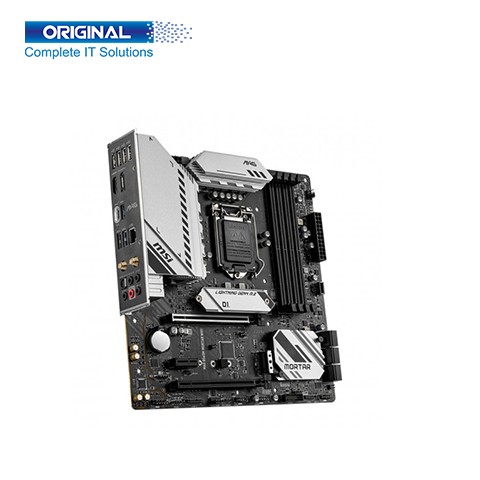

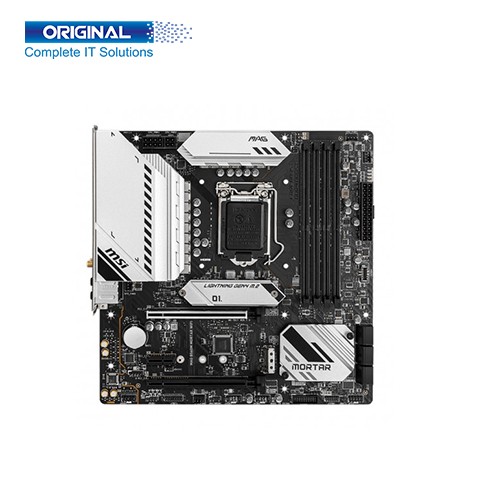

MSI MAG B560M MORTAR WIFI 10th &11th Gen Motherboard

Description:

MSI MAG B560M MORTAR WIFI 10th &11th Gen Motherboard

MSI MAG B560M MORTAR WIFI 10th &11th Gen Motherboard accompanies MSI lightning Gen 4 PCI-E which is the most recent and the quickest PCI-E information move arrangement with 64GB/s of move data transmission that has multiplied contrasted with its past age. PCIe 4.0 keeps up with both in reverse and forward similarity with more established and fresher determinations. It upholds tenth Gen Intel Core Processors, eleventh Gen Intel Core Processors, Pentium Gold, and Celeron Processors (attachment LGA1200). With more centers' processors, warm and drive configuration is more vital to ensure the temperature keeps lower. An upgraded PCB plan with 2oz thickened copper builds conductivity, further developing hotness dispersal and execution unwavering quality particularly during overclocking. It has 4 x DDR4 memory spaces and it upholds up to 128GB. It additionally upholds double mode. It includes a 2.5G LAN and Intel Wi-Fi 6E Solution. Updated network answer for expert and media use.

For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.

MSI MAG B560M MORTAR WIFI 10th &11th Gen Motherboard Supported Processor Supports 10th, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processor, Chipset Intel B560 Chipset, Socket LGA1200 socket Form Factor Micro ATX Form Factor, Memory Type DDR4,Channel Dual-channel, Slot 4 x DIMM slots Supported Bus Speed 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz, Maximum Memory Up to 128GB. The Graphics 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz,1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz Supports 2-Way AMD CrossFire Technology, PCI 2x PCIe x16 slots, Support x16/ x4, PCI E1 (from CPU), Support up to PCIe 4.0 for 11th Gen Intel CPU, Support up to PCIe 3.0 for 10th Gen Intel CPU PCI E3 (From B560 chipset), Support up to PCIe 3.0,1x PCIe 3.0 x1 slot, PCI E2 (From B560 chipset), PCI E3 will be unavailable when installing M.2 SSD in M2 2 slot. However, if you want to use both of them simultaneously, you can set x1 for PCI E3 and set x2 for M2 2 in BIOS. This motherboard M.2 2x M.2 slots (Key M),SATA 6x SATA 6Gb/s ports (from B560 chipset),Internal Connectors 1x 24-pin ATX main power connector,1x 8-pin ATX 12V power connector,1x 4-pin ATX 12V power connector,6x SATA 6Gb/s connectors,2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port,1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports),2x USB 2.0 connectors (supports additional 4 USB 2.0 ports),1x 4-pin CPU fan connector,1x 4-pin water-pump fan connector,2x 4-pin system fan connectors,1x Front panel audio connector,2x System panel connectors 1x Chassis Intrusion connector.1x Clear CMOS jumper,1x Tuning Controller Connector,1x TBT connector (Supports RTD3), USB Port Intel B560 Chipset:1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel),1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector),2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 connector,4x USB 2.0 ports on the back panel, USB Hubs ASM1074:3x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel, Hub-GL850G:4x USB 2.0 ports are available through the internal USB 2.0 connectors, HDMI Port 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz, Display Port 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz, LAN Port 1x Realtek RTL8125B 2.5Gbps LAN controller, Audio Jack 1x Front panel audio connector, Clear CMOS Button 1x Clear CMOS jumper. The Supported OS Support for Windows® 10 64-bit. The MSI MAG B560M MORTAR WIFI 10th &11th Gen Motherboard 03 years Warranty.
