| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | MSI |
| Product Code | : | MAG B660 TOMAHAWK |
| General Information | ||
| Model | MSI MAG B660 TOMAHAWK WIFI | |
| Brand | MSI | |
| Supported Processor | Supports 12th Gen Intel Core, Pentium Gold and Celeron processorsProcessor socket LGA1700 | |
| Chipset | Intel B660 Chipset | |
| Socket | LGA1700 | |
| Form Factor | ATX Form Factor | |
| Memory Information | ||
| Memory Type | DDR4 | |
| Channel | Dual-Channel mode | |
| Slot | 4x DDR4 memory slots | |
| Supported Bus Speed | * Supports 1R 2133 / 2666 / 3200 MHz (by JEDEC & POR) * 1DPC 1R Max speed up to 4800+ MHz * 1DPC 2R Max speed up to 4000+ MHz * 2DPC 1R Max speed up to 4000+ MHz * 2DPC 2R Max speed up to 3600+ MHz * Supports non-ECC, un-buffered memory * Supports Intel® Extreme Memory Profile (XMP) |
|
| Maximum Memory | 128GB | |
| Graphics Information | ||
| Graphics | * 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2 * 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz |
|
| Expansion Slots | ||
| PCI | * 2x PCIe x16 slots * PCI_E1 (From CPU) * Support up to PCIe 4.0 * PCI_E2 (From B660 chipset) * Support up to PCIe 3.0 x4 * 1x PCIe 3.0 x1 slot (From B660 chipset) |
|
| Storage Information | ||
| M.2 | * 3x M.2 slots (Key M) * M2_1 slot (From CPU) * M2_2 & M2_3 slots (From B660 chipset) * M2_2 supports up to PCIe 4.0 x4 * M2_3 supports up to PCIe 4.0 x2 1 |
|
| SATA | * 6x SATA 6Gb/s ports * SATA5~8 (From B660 chipset) * SATAA~B (From ASM1061) |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| Connector Information | ||
| Internal Connectors | * 1x 24-pin ATX main power connector * 2x 8-pin ATX 12V power connectors * 6x SATA 6Gb/s connectors * 3x M.2 slots (M-Key) * 1x USB 3.2 Gen 2 10Gbps Type-C port * 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) * 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) * 1x 4-pin CPU fan connector * 1x 4-pin water-pump fan connector * 5x 4-pin system fan connectors * 1x Front panel audio connector * 2x System panel connectors * 1x Chassis Intrusion connector * 1x Clear CMOS jumper * 1x TPM module connector * 1x TBT connector (supports RTD3) * 1x Tuning Controller connector |
|

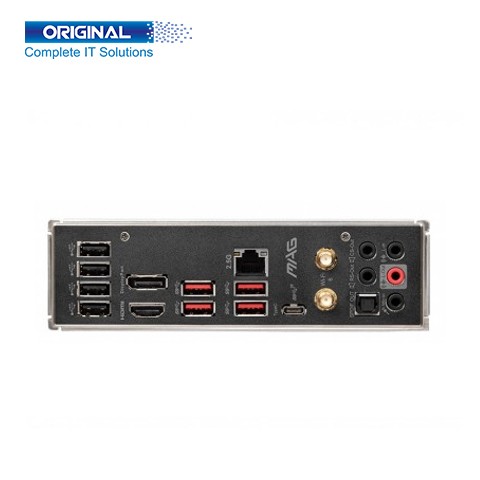

| Port Information | ||
| USB Port | * USB 2.0 Port * USB 3.2 Gen 2 10Gbps Type-A * USB 3.2 Gen 2x2 20Gbps Type-C |
|
| HDMI Port | HDMI 2.1 Port | |
| Display Port | DisplayPort 1.4 | |
| LAN Port | 2.5G LAN Por | |
| Audio Port | HD Audio Connectors | |
| Wi-Fi | Wi-Fi / Bluetooth Antenna | |
| Unique Information | ||
| Wi-Fi | * The Wireless module is pre-installed in the M.2 (Key-E) slot
* Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ up to 2.4Gbps
* Supports 802.11 a/ b/ g/ n/ ac/ ax
* Supports Bluetooth® 5.2 |
|
| Operating System | ||
| Supported OS | Support for Windows® 10 , 11 64-bit | |
| Warranty | ||
| Warranty | 03 Years Warranty | |

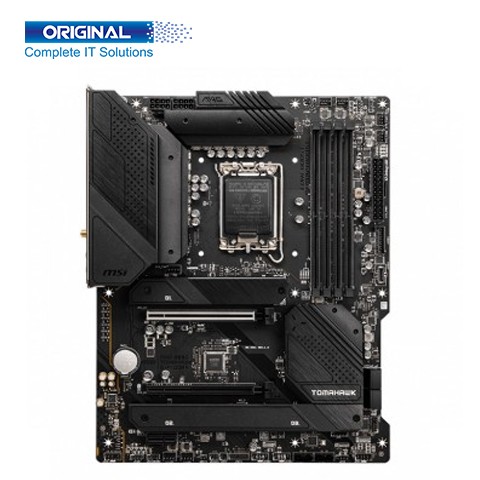

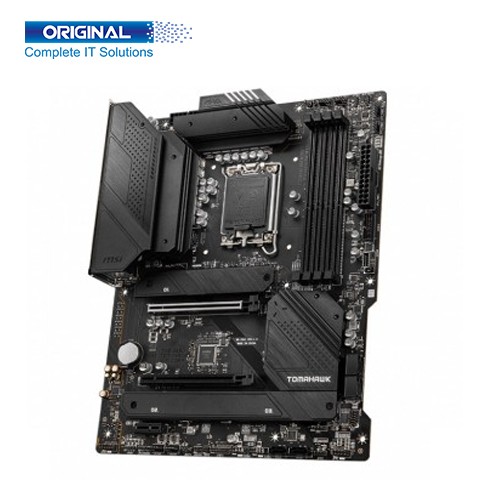

MSI MAG B660 TOMAHAWK WIFI 12th Gen DDR4 ATX Motherboard With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. Supports 12th Gen Intel Core Pentium Gold and Celeron processors for LGA 1700 socket. MSI extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPU runs at full speed with MSI B660 TOMAHAWK Motherboard.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
MSI MAG B660 TOMAHAWK WIFI 12th Gen DDR4 ATX Motherboard. It Supported Processor Supports 12th Gen Intel Core, Pentium Gold, and Celeron Processor socket LGA1700 with Chipset Intel B660 Chipset and Socket LGA1700, Form Factor ATX Form Factor. This is MSI MAG B660 TOMAHAWK WIFI Motherboard Memory Type DDR4, Channel Dual-Channel mode, Slot 4x DDR4 memory slots. MSI MAG B660 TOMAHAWK WIFI DDR4 Motherboard Supported Bus Speed *Supports 1R 2133 / 2666 / 3200 MHz (by JEDEC & POR), *1DPC 1R Max speed up to 4800+ MHz,* 1DPC 2R Max speed up to 4000+ MHz,* 2DPC 1R Max speed up to 4000+ MHz,* 2DPC 2R Max speed up to 3600+ MHz,* Supports non-ECC, un-buffered memory,* Supports Intel® Extreme Memory Profile (XMP),Maximum Memory 128GB, Graphics * 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2, * 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz, PCI * 2x PCIe x16 slots,* PCI_E1 (From CPU),* Support up to PCIe 4.0,* PCI_E2 (From B660 chipset),* Support up to PCIe 3.0 x4,* 1x PCIe 3.0 x1 slot (From B660 chipset), M.2* 3x M.2 slots (Key M), * M2_1 slot (From CPU), * M2_2 & M2_3 slots (From B660 chipset), * M2_2 supports up to PCIe 4.0 x4, * M2_3 supports up to PCIe 4.0 x2 1, SATA * 6x SATA 6Gb/s ports, * SATA5~8 (From B660 chipset), * SATAA~B (From ASM1061), RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices. Thera USB Port * USB 2.0 Port, * USB 3.2 Gen 2 10Gbps Type-A, * USB 3.2 Gen 2x2 20Gbps Type-C, HDMI Port HDMI 2.1 Port, Display Port DisplayPort 1.4, LAN Port 2.5G LAN Port, Audio Port HD Audio Connectors, Wi-Fi Wi-Fi / Bluetooth Antenna. Its Wi-Fi * The Wireless module is pre-installed in the M.2 (Key-E) slot, * Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ up to 2.4Gbps, * Supports 802.11 a/ b/ g/ n/ ac/ ax, * Supports Bluetooth® 5.2. The MSI MAG B660 TOMAHAWK WIFI 12th Gen DDR4 ATX Motherboard has a 03 Years Warranty.
