| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | MSI |
| Product Code | : | MAG B660M MORTAR |
| General Information | ||
| Model | MSI MAG B660M MORTAR WIFI | |
| Brand | MSI | |
| Supported Processor | Supports 12th Gen Intel Core Pentium Gold and Celeron Processor socket LGA1700 | |
| Chipset | Intel B660 Chipset | |
| Socket | LGA1700 | |
| Form Factor | Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual-Channel | |
| Slot | 4x DDR4 memory slots | |
| Supported Bus Speed | * Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) * 1DPC 1R Max speed up to 4800+ MHz * 1DPC 2R Max speed up to 4000+ MHz * 2DPC 1R Max speed up to 4000+ MHz * 2DPC 2R Max speed up to 3600+ MHz * Supports non-ECC, un-buffered memory * Supports Intel® Extreme Memory Profile (XMP) |
|
| Maximum Memory | 128GB | |
| Graphics Information | ||
| Graphics | * 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
* 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz |
|
| Expansion Slots | ||
| PCI | * 2x PCIe x16 slots
* PCI_E1 slot (From CPU)
* Supports PCIe 4.0 x16
* PCI_E3 slot (From B660 Chipset)
* Supports PCIe 3.0 x4
* 1x PCIe 3.0 x1 slot |
|
| Storage Information | ||
| M.2 | * 2x M.2 slots (Key M) * M2_1 slot (From CPU) |
|
| SATA | * Supports SATA 6Gb/s * 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset) * 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061) |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| Connector Information | ||
| Internal Connectors | * 1x 24-pin ATX main power connector * 2x 8-pin ATX 12V power connectors * 6x SATA 6Gb/s connectors * 2x M.2 slots (M-Key) * 1x USB 3.2 Gen 2 10Gbps Type-C connector * 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) * 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) * 1x 4-pin CPU fan connector * 1x 4-pin water-pump fan connector * 2x 4-pin system fan connectors * 1x Front panel audio connector * 2x System panel connectors * 1x Chassis Intrusion connector * 1x Clear CMOS jumper * 1x TPM module connector * 1x TBT connector (supports RTD3) * 1x Tuning Controller connector |
|

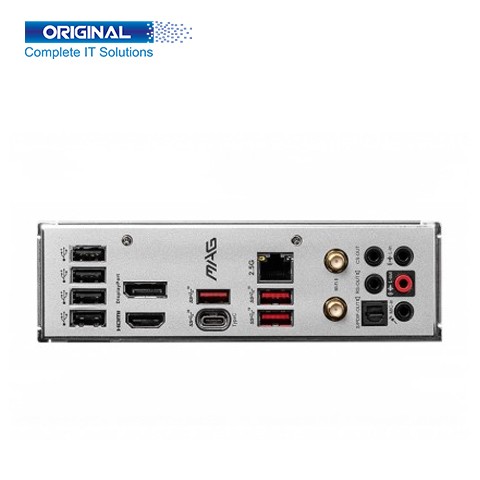

| Port Information | ||
| USB Port | * USB 2.0 Port * USB 3.2 Gen 2 10Gbps Type-A * USB 3.2 Gen 2x2 20Gbps Type-C |
|
| HDMI Port | HDMI 2.1 Port | |
| Display Port | DisplayPort 1.4 | |
| Wi-Fi | Wi-Fi / Bluetooth Antenna | |
| S/PDIF | Optical S/PDIF OUT | |
| LAN Port | * 1x Realtek® 8125BG 2.5Gbps LAN controller * 2.5G LAN Port |
|
| Audio Port | * 7.1-Channel High Definition Audio * HD Audio Connectors |
|
| Special Features | ||
| Wi-Fi | * The Wireless module is pre-installed in the M.2 (Key-E) slot * Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ up to 2.4Gbps * Supports 802.11 a/ b/ g/ n/ ac/ ax * Supports Bluetooth® 5.2 |
|
| LED FEATURE | * 4x EZ Debug LED * 1x 4-pin RGB LED connector * 2x 3-pin RAINBOW LED connectors |
|
| Operating Systems | ||
| Supported OS | Support for Windows® 11 64-bit, Windows® 10 64-bit | |
| Warranty | ||
| Warranty | 3 Years Warranty | |

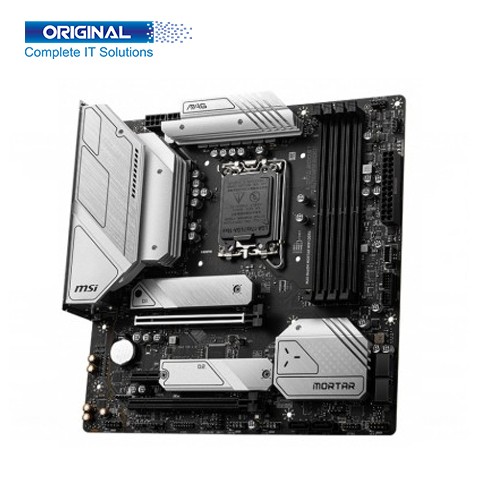

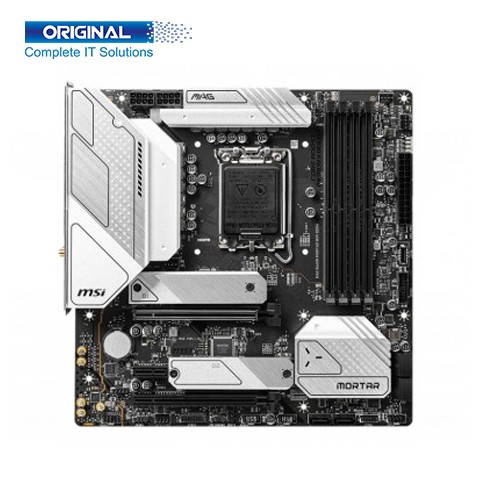

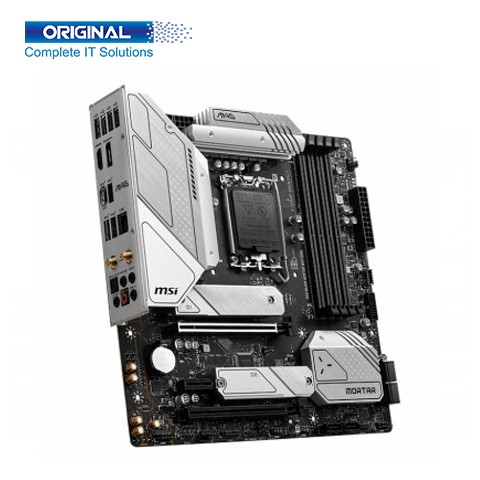

MSI MAG B660M MORTAR WIFI 12th Gen DDR4 Micro ATX Motherboard With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. Supports 12th Gen Intel Core, Pentium Gold, and Celeron processor socket LGA1700. MSI extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPU runs at full speed with MSI B660M MORTAR Motherboard.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
MSI MAG B660M MORTAR WIFI 12th Gen DDR4 Micro ATX Motherboard. Its Supported Processor Supports 12th Gen Intel Core Pentium Gold and Celeron Processor socket LGA1700 with Chipset Intel B660 Chipset, Socket LGA1700, and Form Factor Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm). This is MSI MAG B660M MORTAR WIFI Motherboard Memory Types DDR4, Channel Dual-Channel, Slot 4x DDR4 memory slots, Supported Bus Speed * Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR),* 1DPC 1R Max speed up to 4800+ MHz, * 1DPC 2R Max speed up to 4000+ MHz,* 2DPC 1R Max speed up to 4000+ MHz, * 2DPC 2R Max speed up to 3600+ MHz, * Supports non-ECC, un-buffered memory,* Supports Intel® Extreme Memory Profile (XMP), Maximum Memory 128GB. It is Graphics * 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz, * 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz,PCI * 2x PCIe x16 slots,* PCI_E1 slot (From CPU),* Supports PCIe 4.0 x16,* PCI_E3 slot (From B660 Chipset),* Supports PCIe 3.0 x4,* 1x PCIe 3.0 x1 slot, Internal Connectors * 1x 24-pin ATX main power connector,* 2x 8-pin ATX 12V power connectors,* 6x SATA 6Gb/s connectors,* 2x M.2 slots (M-Key),* 1x USB 3.2 Gen 2 10Gbps Type-C connector,* 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports),* 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports), * 1x 4-pin CPU fan connector, * 1x 4-pin water-pump fan connector, * 2x 4-pin system fan connectors, * 1x Front panel audio connector, * 2x System panel connectors, * 1x Chassis Intrusion connector, * 1x Clear CMOS jumper, * 1x TPM module connector, * 1x TBT connector (supports RTD3), * 1x Tuning Controller connector, USB Port* USB 2.0 Port, * USB 3.2 Gen 2 10Gbps Type-A, * USB 3.2 Gen 2x2 20Gbps Type-C, HDMI Port HDMI 2.1 Port, Display Port DisplayPort 1.4, Wi-Fi Wi-Fi / Bluetooth Antenna, S/PDIF Optical S/PDIF OUT, LAN Port * 1x Realtek® 8125BG 2.5Gbps LAN controller, * 2.5G LAN Port, Audio Port * 7.1-Channel High Definition Audio, * HD Audio Connectors. The MSI MAG B660M MORTAR WIFI 12th Gen DDR4 Micro ATX Motherboard has a 3 Years Warranty.
