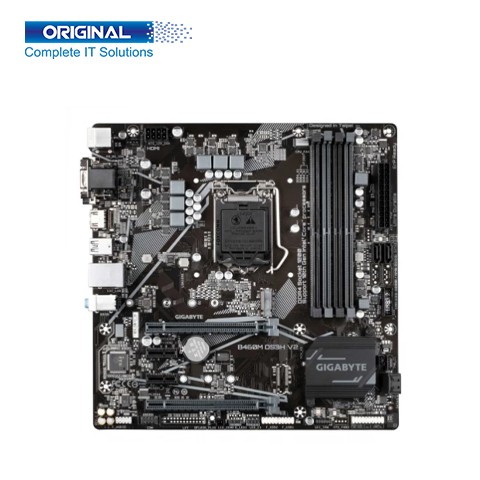

Gigabyte B460M DS3H V2 Intel Micro ATX Motherboard

Gigabyte B460M DS3H V2

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

DDR4

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

* D-Sub port, supported by 10th Generation processors only.

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

* Support for HDMI 1.4 version and HDCP 2.3.

Support up to three displays (limited to 10th Generation Intel processors only)

Maximum shared memory of 512 MB

1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot, running at x4 (PCIEX4)

2 x PCI Express x1 slots

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support)

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

1 x addressable LED strip header

1 x RGB LED strip header

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

2 x Thunderbolt™ add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x Clear CMOS jumper

1 x Q-Flash Plus button

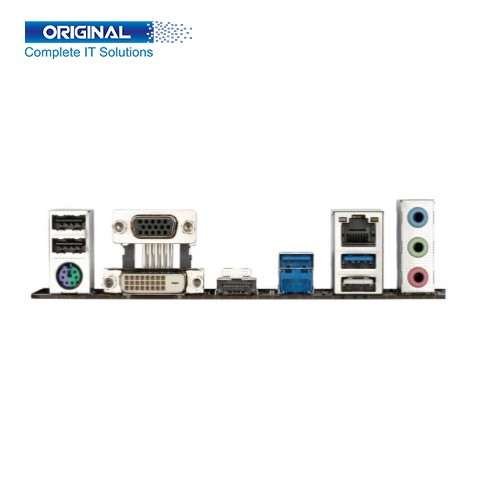

1 x PS/2 keyboard/mouse port

5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Support for Windows 10 64-bit

03 Years Warranty
