| Special Price | : | ā§ŗ26,150 |
| Regular Price(EMI) | : | ā§ŗ28,200 |
| Status | : | In Stock |
| Brand | : | Gigabyte |
| Product Code | : | B760M AORUS ELITE AX |
āĻ āĻ°ā§āĻĄāĻžāĻ° āĻāĻ°āĻžāĻ° āĻĒā§āĻ°ā§āĻŦā§ āĻāĻžāĻ¸ā§āĻāĻŽāĻžāĻ° āĻā§ā§āĻžāĻ° āĻĨā§āĻā§ āĻĒāĻŖā§āĻ¯ā§āĻ° āĻ¸ā§āĻāĻ āĻ¸āĻŽā§āĻĒāĻ°ā§āĻā§ āĻā§āĻ¨ā§ āĻ¨ā§ā§āĻžāĻ° āĻāĻ¨ā§āĻ¯ āĻ āĻ¨ā§āĻ°ā§āĻ§ āĻāĻ°āĻž āĻ¯āĻžāĻā§āĻā§āĨ¤ āĻĒā§āĻ°āĻ¯ā§āĻā§āĻ¤āĻŋ āĻĒāĻŖā§āĻ¯ā§āĻ° āĻŽā§āĻ˛ā§āĻ¯ āĻ āĻ¸ā§āĻĨāĻŋāĻ¤āĻŋāĻļā§āĻ˛ āĻšāĻā§āĻžāĻ° āĻāĻžāĻ°āĻ¨ā§ āĻ¯ā§āĻā§āĻ¨ā§ āĻŽā§āĻšā§āĻ°ā§āĻ¤ā§ āĻŽā§āĻ˛ā§āĻ¯ āĻĒāĻ°āĻŋāĻŦāĻ°ā§āĻ¤āĻ¨ āĻšāĻ¤ā§ āĻĒāĻžāĻ°ā§āĨ¤
| General Information | ||
| Model | B760M AORUS ELITE AX | |
| Brand | Gigabyte | |
| Supported Processor | * Support for the 13th and 12th Generation IntelÂŽ Coreâĸ, PentiumÂŽ Gold and CeleronÂŽ Processors * L3 cache varies with CPU |
|
| Chipset | IntelÂŽ B760 Express Chipset | |
| Socket | LGA1700 | |
| BIOS | 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Memory Information | ||
| Memory Types | DDR5 | |
| Channel | Dual Channel | |
| Slot | 4 x DIMM | |
| Supported Bus Speed | Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
|
| Maximum Memory | up to 128 GB (32 GB single DIMM capacity) | |
| Graphics Information | ||
| Graphics | Integrated Graphics Processor-IntelÂŽ HD Graphics support: * 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. * 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 |
|
| Expansion Slots | ||
| PCI | CPU: * 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: * 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
|
| Storage Information | ||
| M.2 | CPU: * 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: * 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
|
| SATA | 4 x SATA 6Gb/s connectors | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| Connector Information | ||
| Internal Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-CÂŽ header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderboltâĸ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
|
| Port Information | ||

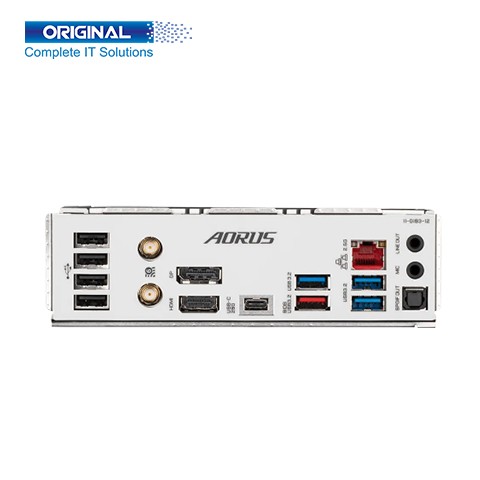

| USB Port | 1 x USB Type-CÂŽ port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports |
|
| HDMI Port | 1 x HDMI port | |
| Display Port | 1 x DisplayPort | |
| SMA Antenna Connectors | 2 x SMA antenna connectors (2T2R) | |
| Optical S/PDIF | 1 x optical S/PDIF Out connector | |
| LAN Port | RealtekÂŽ 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
1 x RJ-45 port |
|
| Audio Jack | 2 x audio jacks | |
| Other Information | ||
| Wireless & Bluetooth | IntelÂŽ Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
| Operating System | ||
| Supported OS | Support for Windows 11 64-bit Support for Windows 10 64-bit |
|
| Warranty | ||
| Warranty | 03 Years | |

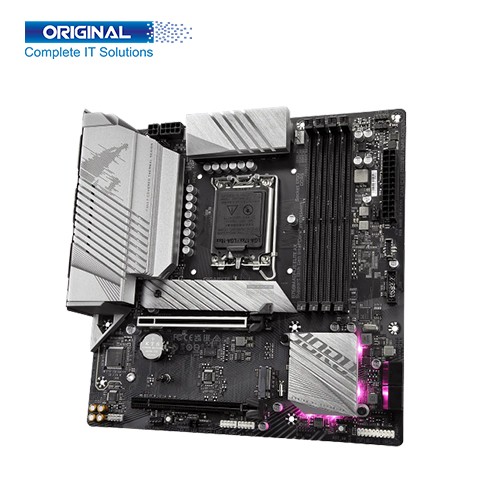

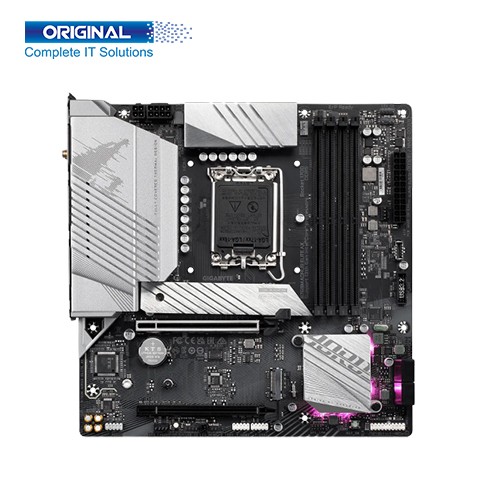

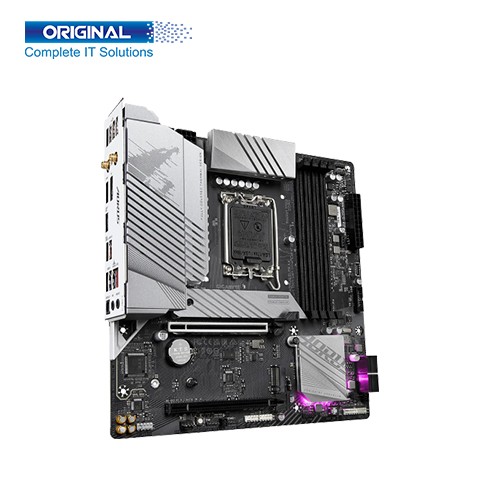

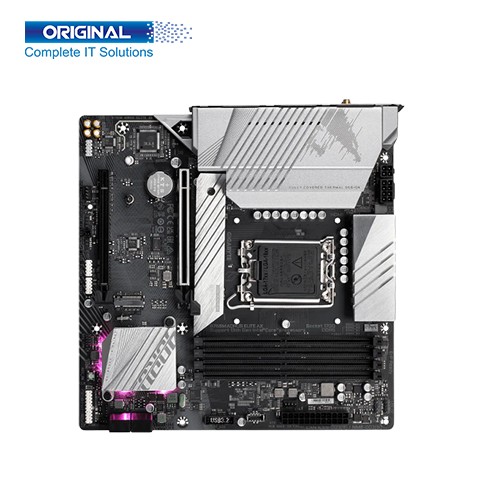

Gigabyte B760M AORUS ELITE AX DDR5 Motherboard. The Gigabyte B760M series provides customers with advanced features and the latest technologies. GIGABYTE motherboards have upgraded power solutions, the latest storage standards, and outstanding connectivity to optimize gaming performance.
Gigabyte B760M AORUS ELITE AX DDR5 Motherboard. The model is B760M AORUS ELITE AX. The brand is Gigabyte. The Motherboard Support 13th and 12th Gen Series Processors. Intel B760 Express Chipset. Socket LGA1700. Q-Flash Plus: Update BIOS Without Installing the CPU, Memory, and Graphics Card. Micro ATX Form Factor; 24.4cm x 24.4cm. Dual Channel DDR5īŧ4*SMD DIMMs with XMP 3.0 Memory Module Support. Maximum Memory up to 128 GB (32 GB single DIMM capacity). Next Generation Storageīŧ2*PCIe 4.0 x4 M.2 Connectors. Advanced Thermal Design & M.2 Thermal Guardīŧ To Ensure VRM Power Stability & M.2 SSD Performance. 4 x SATA 6Gb/s connectors. RAID 0, RAID 1, RAID 5, and RAID 10 support SATA storage devices. Fast Networksīŧ2.5GbE LAN & IntelÂŽ Wi-Fi 6E 802.11ax Extended Connectivityīŧ1 x USB Type-CÂŽ port, with USB 3.2 Gen 2x2 support. 1 x USB 3.2 Gen 2 Type-A port (red). 3 x USB 3.2 Gen 1 ports. 4 x USB 2.0/1.1 ports. 1 x HDMI port. 1 x DisplayPort. 2 x SMA antenna connectors (2T2R). 1 x optical S/PDIF Out connector. RealtekÂŽ 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps). 1 x RJ-45 port. 2 x audio jacks. Supported Operating System Windows 11 64-bit & Windows 10 64-bit. The Gigabyte B760M AORUS ELITE AX DDR5 Motherboard has come with 03 years warranty.
