| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Gigabyte |
| General Information | ||

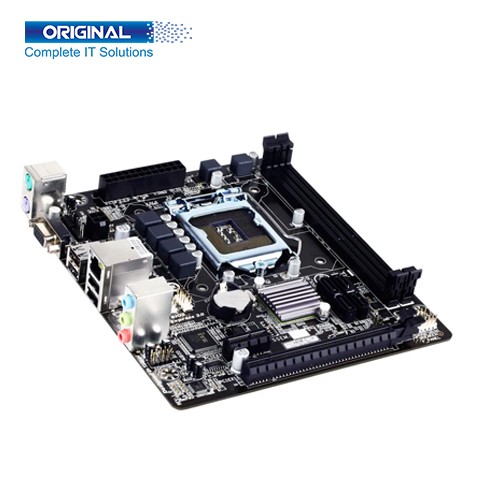

| Model | Gigabyte GA-H61M-S | |
| Supported Processor | Support for Intel® Core i7/i5/i3 Pentium Celeron processors in the LGA1155 package | |
| Chipset | Intel® H61 Express Chipset | |
| Socket | LGA1155 | |
| BIOS | * 1 x 32 Mbit flash |
|
| Form Factor | M-ATX | |
| Memory Information | ||
| Memory Type | DDR3 | |
| Channel | Dual channel memory | |
| Slot | 2 x 1.5V DDR3 DIMM | |
| Supported Bus Speed | DDR3 1333/1066/800 MHz | |
| Maximum Memory | 16 GB | |
| Graphics Information | ||
| Graphics | * 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz |
|
| Expansion Slots | ||
| PCI | * 1 x PCI Express x16 slot, running at x16 |
|
| Storage Information | ||
| SATA | 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices |
|
| Connector Information | ||
| Internal Connectors | * 1 x 24-pin ATX main power connector |
|

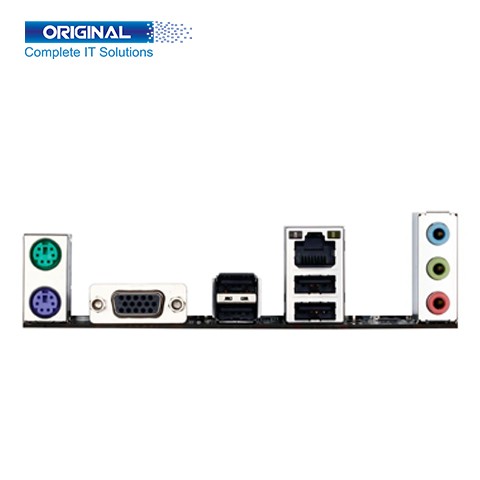

| Port Information | ||
| PS/2 Port | * 1 x PS/2 keyboard port |
|
| USB Port | 4 x USB 2.0/1.1 headers |
|
| D-Sub Port | 1 x D-Sub port | |
| LAN Port | * Realtek® GbE LAN chip (10/100/1000 Mbit) |
|
| Audio Port | 3 x audio jacks (Line In, Line Out, Mic In) | |
| Operating System | ||
| Supported OS | Support for Windows 8.1/8/7/XP |
|
| Warranty | ||
| Warranty | 03 Years Warranty |
|
Gigabyte GA-H61M-S DDR3 Intel Micro ATX Motherboard comes with Support for Intel Core i7/i5/i3 Pentium Celeron processors in the LGA1155 package, Chipset Intel H61, Socket LGA1155, Bios is 1 x 32 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.0, WfM 2.0, SM BIOS 2.6, ACPI 2.0, M-ATX Form Factor. Gigabyte GA-H61M-S DDR3 Motherboard Maximum 16 GB DDR3 Dual Channel Memory, 2 x DDR3 DIMM sockets, Supported Bus Speed DDR3 1333/1066/800 MHz. Buy Gigabyte GA-H61M-S DDR3 Intel Micro ATX Motherboard at the best price in BD.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
Gigabyte GA-H61M-S DDR3 Intel Micro ATX Motherboard comes with standard Graphics such as 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz, The DVI-D port does not support D-Sub connection by the adapter, 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note), Support for HDMI 2.0 version and HDCP 2.2. (Note). GA-H61M-S Gigabyte Motherboard Expansion PCI Slots is 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots also various Internal Connectors such as 4 x 24-pin ATX main power connector, 4 x SATA 6Gb/s connectors, 1 x CPU fan header, 1 x front panel audio header, etc. Gigabyte GA-H61M-S Motherboard has 2 x USB 2.0/1.1 ports, 1 x HDMI port, 1 x D-Sub port, Realtek GbE LAN (10/100/1000 Mbit), and High Definition Audio with 3 x audio jacks (Mic In, Line In, Line Out). This Gigabyte GA-H61M-S Motherboard Support for Windows 8.1/8/7/XP. You can enjoy 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
