| Special Price | : | ৳6,180 |
| Regular Price(EMI) | : | ৳6,900 |
| Status | : | In Stock |
| Brand | : | Gigabyte |
| Product Code | : | GA-J1800M-D3P |
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।
| General Information | ||
| Model | GA-J1800M-D3P | |
| Brand | Gigabyte | |
| Supported Processor | Built-in with an Intel® Dual-Core Celeron® J1800 SoC (2.41 GHz) * Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components. 1 MB Cache |
|
| Chipset | Intel® Dual-Core Celeron® J1800 SoC (2.41 GHz) | |
| BIOS | 1 x 64 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 22.6cm x 18.0cm | |
| Memory Information | ||
| Memory Types | DDR3 | |
| Channel | Dual channel | |
| Slot | 2 x DIMM | |
| Supported Bus Speed | Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR3/-L 1333 MHz memory modules Support for non-ECC memory modules |
|
| Maximum Memory | 8GB | |
| Graphics Information | ||
| Graphics | Integrated in the SoC: 1 x D-Sub port, supporting a maximum resolution of 2560x1600 1 x HDMI port, supporting a maximum resolution of 1920x1080 |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x1(PCIEX1_2) 1 x PCI Express x1 slot 1 x PCI slot |
|
| Storage Information | ||
| SATA | Integrated in the SoC: 2 x SATA 3Gb/s connectors |
|
| Connector Information | ||
| Internal Connector | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x USB 2.0/1.1 headers 2 x serial port headers 1 x Trusted Platform Module (TPM) header 1 x Clear CMOS jumper |
|
| Port Information | ||
| PS/2 Port | 1 x PS/2 keyboard/mouse port |
|

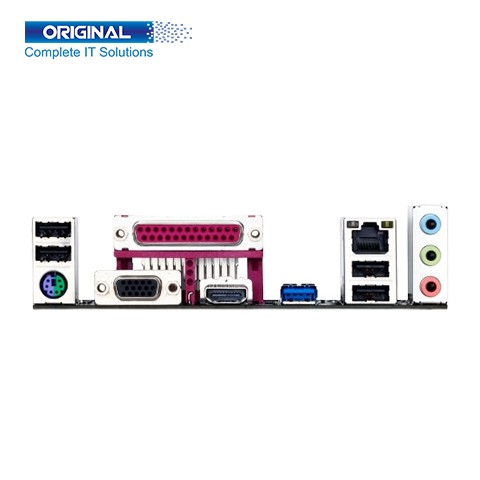

| USB Port | Integrated in the SoC: 1 x USB 3.0/2.0 port on the back panel SoC + GL850 USB 2.0 Hub: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| HDMI Port | 1 x HDMI port | |
| D-Sub Port | 1 x D-Sub port | |
| Parallel Port | 1 x parallel port | |
| LAN Port | Realtek® GbE LAN chip (10/100/1000 Mbit) 1 x RJ-45 port |
|
| Audio Jack | 3 x audio jacks (Line In, Line Out, Mic In) | |
| Operating System | ||
| Supported OS | Windows 10/8.1/8/7 | |
| Warranty | ||
| Warranty | 03 Years | |

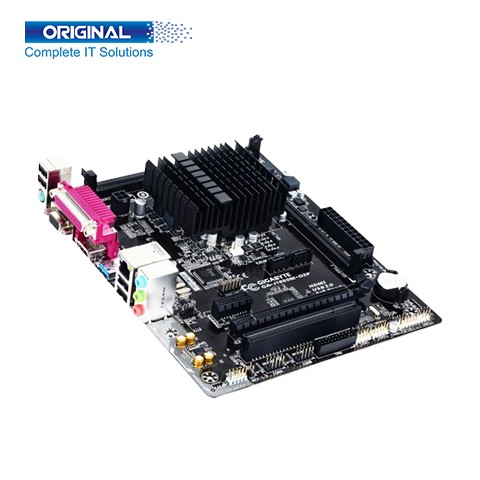

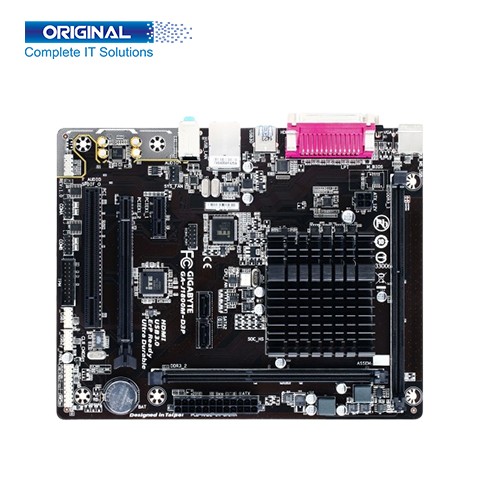

Gigabyte-GA-J1800M-D3P-Motherboard. The GIGABYTE J1800M micro ATX motherboard is a fully integrated PC motherboard featuring the Intel® Celeron™ J1800 dual-core processor. Designed for compact, small form factor PC systems and devices, the GIGABYTE J1800M is entirely fanless, making it ideal for always-on, mission-critical systems, as well as noise-sensitive digital entertainment systems. Connectivity includes digital and analog display outputs via VGA and HDMI ports, while PCIe plus PCI slots provide wide-range expansion card selections.
Gigabyte-GA-J1800M-D3P-Motherboard. The Motherboard Model is GA-J1800M-D3P. The Brand Gigabyte. Supported Processor Built-in with an Intel® Dual-Core Celeron® J1800 SoC (2.41 GHz). Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components. 1 MB Cache. Chipset Intel® Dual-Core Celeron® J1800 SoC (2.41 GHz). Socket LGA1200. BIOS 1 x 64 Mbit flash. Use of licensed AMI UEFI BIOS. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. Micro ATX Form Factor; 22.6cm x 18.0cm. Memory Types DDR3, Dual Channel. Slot 2 x DIMM. Maximum Memory 8GB. Graphics Integrated in the SoC: 1 x D-Sub port, supporting a maximum resolution of 2560x1600. 1 x HDMI port, supporting a maximum resolution of 1920x1080. 1 x PCI Express x16 slot, running at x1(PCIEX1_2). 1 x PCI Express x1 slot. 1 x PCI slot. SATA Integrated in the SoC: 2 x SATA 3Gb/s connectors. 1 x PS/2 keyboard/mouse port. USB Port Integrated in the SoC: 1 x USB 3.0/2.0 port on the back panel, SoC + GL850 USB 2.0 Hub: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers). 1 x HDMI port. 1 x D-Sub port. 1 x parallel port. Realtek® GbE LAN chip (10/100/1000 Mbit). 1 x RJ-45 port. 3 x audio jacks (Line In, Line Out, Mic In). Supports 2.4/ 5GHz frequency band. Bluetooth v5.0 or later". Supported Operating System Windows 10/8.1/8/7. Gigabyte-GA-J1800M-D3P-Motherboard comes with 03 years warranty.
