| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Gigabyte |
| Product Code | : | X570S AORUS MASTER |
| General Information | ||

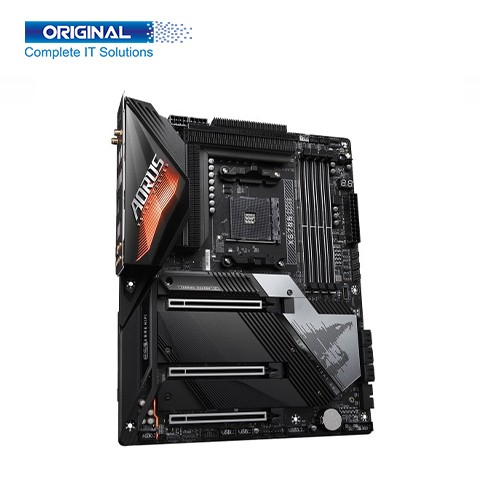

| Model | Gigabyte X570S Aorus Master | |
| Brand | Gigabyte | |
| Supported Processor | Supports Ryzen 5000/ 4000 G/ 3000/ 3000 G/ 2000/ 2000 G Series Processors | |
| Chipset | AMD X570 | |
| Socket | AM4 | |
| BIOS | * 1 x 256 Mbit flash * Use of licensed AMI UEFI BIOS * PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Memory Information | ||
| Memory Type | DDR4 | |
| Channel | Dual-channel | |
| Slot | 4 x DDR4 DIMM | |
| Supported Bus Speed | Support for DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules | |
| Maximum Memory | 128 GB | |
| Graphics Information | ||
| Graphics | * Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies For AMD Ryzen 5000 Series Processors/AMD Ryzen 4000 G-Series * Processors/AMD Ryzen 3000 Series Processors/AMD Ryzen 2000 Series Processors only |
|
| Expansion Slots | ||
| PCI | * 1 x PCI Express x16 slot (PCIEX16), integrated into the CPU: * AMDRyzen™ 5000 Series Processors/AMDRyzen™ 3000 Series Processors support PCIe 4.0 x16 mode * AMDRyzen™ 4000G-SeriesProcessors/AMDRyzen™ 2000 Series Processors support PCIe 3.0 x16 mode * AMDRyzen™ 3000G-SeriesProcessors/AMDRyzen™ 2000 G-Series Processors support PCIe 3.0 x8 mode * 1 x PCI Express x16 slot (PCIEX8), integrated into the CPU: * AMDRyzen™ 5000 Series Processors/AMDRyzen™ 3000 Series Processors support PCIe 4.0 x8 mode * AMDRyzen™ 4000G-SeriesProcessors/AMDRyzen™ 2000 Series Processors support PCIe 3.0 x8 mode * AMDRyzen™ 3000G-SeriesProcessors/AMDRyzen™ 2000 G-Series Processors do not support this slot * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. *1 x PCI Express x16 slot (PCIEX4), integrated into the Chipset: Supporting PCIe 4.0* /3.0 x4 mode * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only. * The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector. |
|
| Storage Information | ||
| M.2 | * 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs: * 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs: * 2 x M.2 connectors (M2C_SB/M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs: |
|
| SATA | * Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs * 6 x SATA 6Gb/s connectors, integrated in the Chipset: |
|
| RAID | Support for RAID 0, RAID 1, and RAID 10 | |
| Connector Information | ||
| Internal Connectors | * 1 x 24-pin ATX main power connector * 2 x 8-pin ATX 12V power connectors * 1 x CPU fan header * 1 x water cooling CPU fan header * 4 x system fan headers * 4 x system fan/water cooling pump headers * 2 x addressable LED strip headers * 2 x RGB LED strip headers * 1 x CPU cooler LED strip/RGB LED strip header * 4 x M.2 Socket 3 connectors * 6 x SATA 6Gb/s connectors * 1 x front panel header * 1 x front panel audio header * 1 x USB Type-C® header, with USB 3.2 Gen 2 support * 2 x USB 3.2 Gen 1 headers * 2 x USB 2.0/1.1 headers * 1 x noise detection header * 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) * 1 x Thunderbolt™ add-in card connector * 2 x temperature sensor headers * 1 x power button * 1 x reset button * 1 x Clear CMOS jumper |
|
| Port Information | ||
| USB Port | * 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support * 5 x USB 3.2 Gen 2 Type-A ports (red) * 2 x USB 3.2 Gen 1 ports * 4 x USB 2.0/1.1 ports |
|
| LAN Port | * Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) * 1 x RJ-45 port |
|
| Audio Port | * 1 x front panel audio header * 5 x audio jacks |
|
| SMA Antenna | 2 x SMA antenna connectors (2T2R) | |
| S/PDIF | 1 x optical S/PDIF Out connector | |
| Operating System | ||
| Supported OS | Support for Windows 10 64-bit | |
| Warranty | ||
| Warranty | 03 Years Warranty | |
The Gigabyte X570S Aorus Master AMD ATX Motherboard. Its delivery and dominant thermal design, are glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake performance in all its gaming glory. It ensures maximum Turbo Boost and overclocking performance of Intel's new generation CPU. Buy Gigabyte X570S Aorus Master AMD ATX Motherboard at the best price in BD.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
Gigabyte X570S Aorus Master AMD ATX Motherboard. It is model X570S Aorus Master for Brand Gigabyte, Supported Processor Supports Ryzen 5000/ 4000 G/ 3000/ 3000 G/ 2000/ 2000 G Series Processors, Chipset AMD X570, Socket M4, BIOS* 1 x 256 Mbit flash, * Use of licensed AMI UEFI BIOS, * PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, Form Factor ATX Form Factor; 30.5cm x 24.4cm. This is Memory Type DDR4, Channel Dual-channel, Slot 4 x DDR4 DIMM, Supported Bus Speed Support for DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules Maximum Memory 128 GB. Graphics * Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies, For AMD Ryzen 5000 Series Processors/AMD Ryzen 4000 G-Series, * Processors/AMD Ryzen 3000 Series Processors/AMD Ryzen 2000 Series Processors only, PCI* 1 x PCI Express x16 slot (PCIEX16), integrated into the CPU:* AMDRyzen™ 5000 Series Processors/AMDRyzen™ 3000 Series Processors support PCIe 4.0 x16 mode, * AMDRyzen™ 4000G-SeriesProcessors/AMDRyzen™ 2000 Series Processors support PCIe 3.0 x16 mode, * AMDRyzen™ 3000G-SeriesProcessors/AMDRyzen™ 2000 G-Series Processors support PCIe 3.0 x8 mode, * 1 x PCI Express x16 slot (PCIEX8), integrated into the CPU * AMDRyzen™ 5000 Series Processors/AMDRyzen™ 3000 Series Processors support PCIe 4.0 x8 mode, * AMDRyzen™ 4000G-SeriesProcessors/AMDRyzen™ 2000 Series Processors support PCIe 3.0 x8 mode, * AMDRyzen™ 3000G- SeriesProcessors/AMDRyzen™ 2000 G-Series Processors do not support this slot, * For optimum performance if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot., * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.1 x PCI Express x16 slot (PCIEX4), integrated into the Chipset: Supporting PCIe 4.0* /3.0 x4 mode, * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.* The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector.USB Port * 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support, * 5 x USB 3.2 Gen 2 Type-A ports (red), * 2 x USB 3.2 Gen 1 ports, * 4 x USB 2.0/1.1 ports,LAN Port * Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps), * 1 x RJ-45 port, Audio Port* 1 x front panel audio header, * 5 x audio jacks, SMA Antenna 2 x SMA antenna connectors (2T2R)S/PDIF 1 x optical S/PDIF Out connector. The Gigabyte X570S Aorus Master AMD ATX Motherboard has a 03 Years Warranty.
