| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Gigabyte |
| Product Code | : | Z490 GAMING X |
| General Information | ||
| Model | Z490 GAMING X |
|
| Supported Processor | 10th Generation Intel Pentium, Core i3, i5, i7, i9 Processor | |
| Chipset | Intel® Z490 Express Chipset | |
| Socket | LGA1200 | |
| BIOS | * 1 x 256 Mbit flash * Use of licensed AMI UEFI BIOS * PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 23.0cm | |
| Memory Information | ||
| Memory Type | DDR4 |
|
| Channel | Dual channel | |
| Slot | 4 x DDR4 DIMM | |
| Supported Bus Speed | DDR4 4600/ 4500/ 4400/ 4300/4266/ 4133/ 4000/ 3866/ 3800/ 3733/ 3666/ 3600/ 3466/ 3400/ 3333/ 3300/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz | |
| Maximum Memory | 128 GB | |
| Graphics Information | ||
| Graphics | * 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. * Maximum shared memory of 512 MB |
|
| Expansion Slots | ||
| PCI | * 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * 1 x PCI Express x16 slot, running at x4 * 3 x PCI Express x1 slots |
|
| Storage Information | ||
| M.2 | * 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB) * 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M_SB) |
|
| SATA | 6 x SATA 6Gb/s connectors | |
| RAID | Support for RAID 0, RAID 1, RAID 5, and RAID 10 | |
| Connector Information | ||
| Internal Connectors | * 1 x 24-pin ATX main power connector * 1 x 4-pin ATX 12V power connector * 1 x 8-pin ATX 12V power connector * 1 x CPU fan header * 4 x system fan headers * 2 x addressable LED strip headers * 2 x RGB LED strip headers * 6 x SATA 6Gb/s connectors * 2 x M.2 Socket 3 connectors * 1 x front panel header * 1 x front panel audio header * 1 x S/PDIF Out header * 1 x USB 3.2 Gen 1 header * 1 x USB 2.0/1.1 header * 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) * 2 x Thunderbolt™ add-in card connectors * 1 x serial port header * 1 x Clear CMOS jumper * 1 x Q-Flash Plus button |
|
| Port Information | ||
| PS/2 Port | 1 x PS/2 keyboard/mouse port |
|

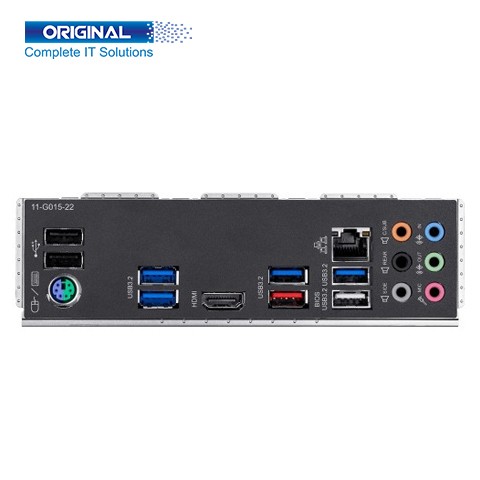

| USB Port | * 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel * 7 x USB 3.2 Gen 1 ports (5 ports on the back panel, 2 ports available through the internal USB header) * 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
|
| HDMI Port | 1 x HDMI port | |
| LAN Port | Intel® GbE LAN chip (1000 Mbit/100 Mbit) | |
| Audio Port | * Realtek® ALC1200 codec * High Definition Audio * 2/4/5.1/7.1-channel * Support for S/PDIF Out |
|
| Operating System | ||
| Supported OS | Support for Windows 10 64-bit |
|
| Warranty | ||
| Warranty | 3 Years Warranty |
|

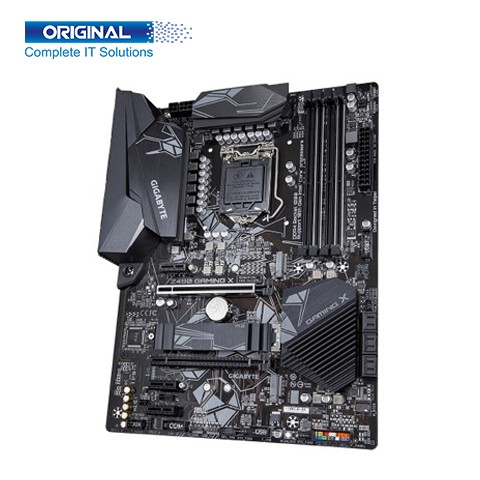

This Gigabyte Z490 GAMING X Motherboard comes with Intel Core i3, i5, i7, i9 Processors with 10th Generation Intel Pentium. Has Intel Z490 Express Chipset, LGA1200 Socket, Bios is 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 and 30.5cm x 23.0 cm Micro ATX Form Factor. This Gigabyte Z490 GAMING X Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed DDR4 4600/ 4500/ 4400/ 4300/4266/ 4133/ 4000/ 3866/ 3800/ 3733/ 3666/ 3600/ 3466/ 3400/ 3333/ 3300/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz.
This Gigabyte Z490 GAMING X Motherboard comes with standard Graphics such as supporting a maximum resolution of 4096x2160@30 Hz, Support for HDMI 1.4 version and HDCP 2.3, Maximum shared memory of 512 MB, Expansion PCI Slots is 1 x PCI Express x16 slot, running at x16, 3 x PCI Express x1 slots, 6 x SATA 6Gb/s connectors, 1 x M.2 connector also various Internal Connectors such as 1 x 24-pin ATX main power connector, 1 x CPU fan header, 1 x front panel audio header, etc. This Gigabyte Z490 GAMING X Motherboard has 4 x USB 3.1 Gen 1 ports, 6 x USB 2.0/1.1 ports, 1 x HDMI port, 1 x D-Sub port, Realtek GbE LAN 1 x Intel 2.5GbE LAN chip (1000 Mbit/100 Mbit), and High Definition Audio 2/4/5.1/7.1-channel, Support for S/PDIF Out.
This Gigabyte Z490 GAMING X Motherboard Support for Windows 10 64-bit. You can enjoy 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
