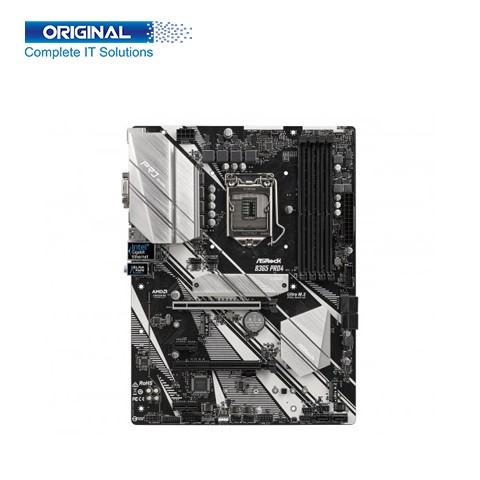

Asrock B365 Pro4 DDR4 Intel 8th,9th Gen Socket 1151 Motherboard

Price :           To be announced
Status :           Up Comming
Brand :           Asrock
Product Code :           B365

Short Details:

  • • Model: Asrock B365 Pro4
  • • Chipset: Intel® B365
  • • Form Factor: -ATX Form Factor: 12.0-in x 9.0-in, 30.5 cm x 22.9 cm
  • • Memory Types: DDR4

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model Asrock B365 Pro4
Brand Asrock
Supported Processor Supports 9th and 8th Gen Intel® Core™ processors (Socket 1151)
Chipset Intel® B365
Socket 1151
Bios

- 128Mb AMI UEFI Legal BIOS with multilingual GUI support

- ACPI 6.0 Compliant wake up events

- SMBIOS 2.7 Support

- CPU, GT, DRAM, PCH 1.0V, VCCST Voltage Multi-adjustment

Form Factor

-ATX Form Factor: 12.0-in x 9.0-in, 30.5 cm x 22.9 cm

- Solid Capacitor design

Memory Information
Memory Types DDR4
Channel Dual Channel
Slot 4 x DDR4 DIMM Slots
Supported Bus Speed 2666 / 2400 / 2133 non-ECC, un-buffered memory
Maximum Memory 64GB
Graphics Information
Graphics

- Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics

- DirectX 12

- HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1

- Three graphics output options: D-Sub, DVI-D and HDMI

- Supports Triple Monitor

- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz

- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz

- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)

- Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports

- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

Expansion Slots
PCI

2 PCIe 3.0 x16

2 PCIe 3.0 x1

1 M.2 Key E for WiFi

Storage Information
M.2

1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module

SATA 6 SATA3, 2 Ultra M.2 (1 x PCIe Gen3 x4 & SATA3, 1 x PCIe Gen3 x4)
RAID

- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug

- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

Connector Information
Internal Connectors

 1 x COM Port Header

- 1 x TPM Header

- 1 x Power LED and Speaker Header

- 2 x RGB LED Headers*

- 1 x Addressable LED Header**

- 1 x CPU Fan Connector (4-pin)***

- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****

- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****

- 1 x 24 pin ATX Power Connector

- 1 x 8 pin 12V Power Connector

- 1 x Front Panel Audio Connector

- 1 x Thunderbolt™ AIC Connector (5-pin)

- 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)

- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

Port Information

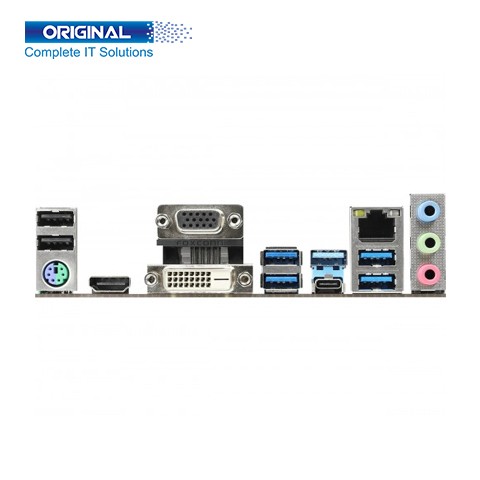

USB Port

- 2 x USB 2.0 Ports (Supports ESD Protection)

- 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection)

- 5 x USB 3.1 Gen1 Ports (Supports ESD Protection)

HDMI Port 1 x HDMI Port
DVED Port 1 x DVI-D Port
LAN Port 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Audio Port HD Audio Jacks: Line in / Front Speaker / Microphone
Other Information
Special Features

ASRock Super Alloy

- Premium 50A Power Choke

- Sapphire Black PCB

- High Density Glass Fabric PCB

ASRock Steel Slot

ASRock Full Coverage M.2 Heatsink

ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)

ASRock Full Spike Protection (for all USB, Audio, LAN Ports)

ASRock Live Update & APP Shop

Operating Systems
Supported OS Microsoft® Windows® 10 64-bit / 11 64-bit
Warranty
Warranty 03 years Manufacturing Warranty

Description:


Asrock B365 Pro4 Intel 8th and 9th Gen DDR4 Motherboard



A Good Motherboard Gives a Computer Full Support. Good quality works Depending on the Motherboard and the Asrock B365 Pro4 DDR4 Intel 8th and 9th Gen is one of the best exclusive Motherboard.


The Asrock B365 Pro4 DDR4 Intel 8th and 9th Gen Motherboard. Motherboard Brand ASRock, This Motherboard Supported Processor 9th and 8th Gen Intel® Core™ processors, Chipset Intel® B365 Socket LGA1151 ATX Form Factor, Motherboard Memory DDR4 Dual-Channel 4 x DDR4 DIMM Slots Max. The Capacity of system memory 64 GB, Motherboard Supported Bus Speed 2666 / 2400 / 2133 non-ECC, un-buffered memory, Motherboard Graphics Information Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics, Three graphics output options: D-Sub, DVI-D and HDMI, Supports Triple Monitor, D-Sub with max. resolution up to 1920x1200 @ 60Hz,, Motherboard PCI Express 11th Gen Intel Core Processors 3 x PCI Express x16 Slots, 1 x PCI Express 3.0 x1 Slot, 1 x Vertical M.2 Socket (Key E), Motherboard Supported Storage 1 x M.2 Socket (Key E), 6 SATA3, 2 Ultra M.2, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), This Motherboard Supported Port 2 x USB 2.0 Ports, 1 x USB 3.1 Gen1 Type-C Port, 5 x USB 3.1 Gen1 Ports, 1 x HDMI Port, 1 x DVI-D Port, 1 x RJ-45 LAN Port with LED, HD Audio Jacks: Line in / Front Speaker / Microphone, Motherboard Supported Operating Systems Microsoft Windows® 10 64-bit.

The Asrock B365 Pro4 Available Warranty is 03 Years Manufacturing Warranty.
