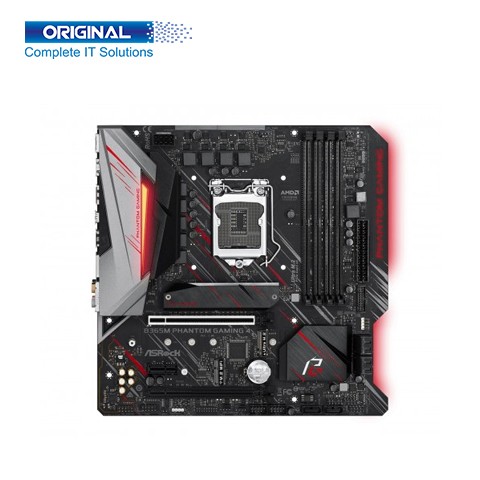

Asrock B365M Phantom Gaming 4 Intel 9th Gen Motherboard

Price :           To be announced
Status :           Out of Stock
Brand :           Asrock
Product Code :           B365M Phantom Gaming 4

Short Details:

  • • Model: B365M Phantom Gaming 4
  • • Chipset: Intel® B365
  • • Form Factor: Micro ATX Form Factor: 9.6-in x 9.52-in, 24.4 cm x 24.2 cm
  • • Memory Types: DDR4

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model B365M Phantom Gaming 4
Brand Asrock
Supported Processor Supports 9th and 8th Gen Intel® Core™ processors (Socket 1151)
Chipset Intel® B365
Socket 1151
Bios

- 128Mb AMI UEFI Legal BIOS with multilingual GUI support

- ACPI 6.0 Compliant wake up events

- SMBIOS 2.7 Support

- CPU, GT, DRAM, PCH 1.0V, VCCSA, VCCST Voltage Multi-adjustment

Form Factor Micro ATX Form Factor: 9.6-in x 9.52-in, 24.4 cm x 24.2 cm
Memory Information
Memory Types DDR4
Channel Dual Channel
Slot 4 x DDR4 DIMM Slots
Supported Bus Speed 2666 / 2400 / 2133 non-ECC, un-buffered memory
Maximum Memory 64 GB
Graphics Information
Graphics

- Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics

- DirectX 12

- HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1

- Dual graphics outputs: HDMI 1.4 and DisplayPort 1.2

- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz

- Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)

- Supports HDCP 2.2 with HDMI and DisplayPort 1.2 Ports

- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports

Expansion Slots
PCI

2PCIe 3.0 x16

1 PCIe 3.0 x1

1 M.2 Key E for WiFi

Storage Information
M.2 1 x M.2 Socket
SATA 6 x SATA3 6.0 Gb/s Connectors
RAID support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug
Connector Information
Internal Connectors

- 1 x COM Port Header

- 1 x TPM Header

- 1 x Chassis Intrusion and Speaker Header

- 2 x RGB LED Headers*

- 1 x Addressable LED Header**

- 1 x CPU Fan Connector (4-pin)***

- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****

- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****

- 1 x 24 pin ATX Power Connector

- 1 x 8 pin 12V Power Connector

- 1 x Front Panel Audio Connector

- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

- 1 x Post Status Checker (PSC)

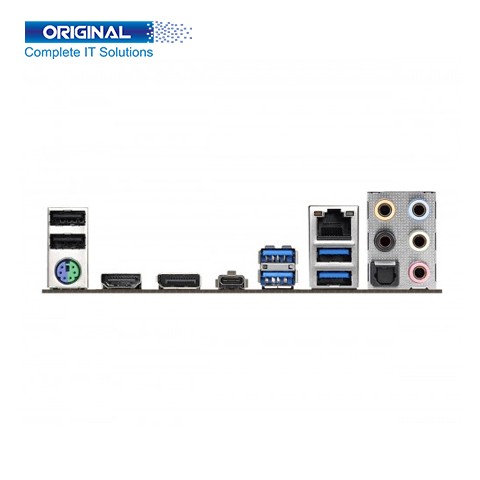

Port Information
USB Port

- 2 x USB 2.0 Ports (Supports ESD Protection)

- 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection)

- 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)

HDMI Port 1 x HDMI Port
LAN Port 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Audio Port HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Other Information
Special Features

ASRock Super Alloy

- Premium 50A Power Choke

- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)

- I/O Armor

- Shaped PCB Design

- Matte Black PCB

- High Density Glass Fabric PCB

ASRock Steel Slot

ASRock Full Coverage M.2 Heatsink

ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)

ASRock POST Status Checker (PSC)

ASRock Full Spike Protection (for all USB, Audio, LAN Ports)


Operating Systems
Supported OS Microsoft® Windows® 10 64-bit / 11 64-bit
Warranty
Warranty 03 years Manufacturing Warranty

Description:


Asrock B365M Phantom Gaming 4 9th Gen Intel Motherboard


Asrock B365M Phantom Gaming 4 Intel 9th Gen Motherboard Gives a Computer Full Support. Good quality works Depending on the Motherboard and the Asrock B365M Phantom Gaming 4 9th Gen Intel is one of the best exclusive Motherboard.


For more Motherboard information Please Check Gigabyte MotherboardMSI MotherboardAsus MotherboardEsonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.


Asrock B365M Phantom Gaming 4 Intel 9th Gen Motherboard. Motherboard Brand ASRock, This Motherboard Supported Processor 9th and 8th Gen Intel® Core™ processors, Chipset Intel® B365 Socket LGA1151 Micro ATX Form Factor, Motherboard Memory DDR4 Dual-Channel 4 x DDR4 DIMM Slots Max. The Capacity of the system memory is 64 GB. Asrock 4 Intel 9th Gen Motherboard Supported Bus Speed DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory, Motherboard Graphics Information Supports Intel® UHD Graphics Built-in Visuals: Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics, Dual graphics outputs: HDMI 1.4 and DisplayPort 1.2, Motherboard PCI Express 2PCIe 3.0 x16 , 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi. Asrock B365M Phantom Gaming Motherboard Supported Storage 1 x M.2 Socket, 6 x SATA3 6.0 Gb/s Connectors And support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), This Motherboard Supported 2 x USB 2.0 Ports, 1 x USB 3.1 Gen1 Type-C Port, 4 x USB 3.1 Gen1 Ports, 1 x HDMI Port, 1 x RJ-45 LAN Port with LED, HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks), ASRock Motherboard Supported Operating Systems Microsoft Windows 10 64-bit / 11 64-bit.Asrock B365M Phantom Gaming 4 Motherboard Available Manufacturing Warranty is 03 Years.
