| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asrock |
| Product Code | : | Z590 |
| General Information | ||

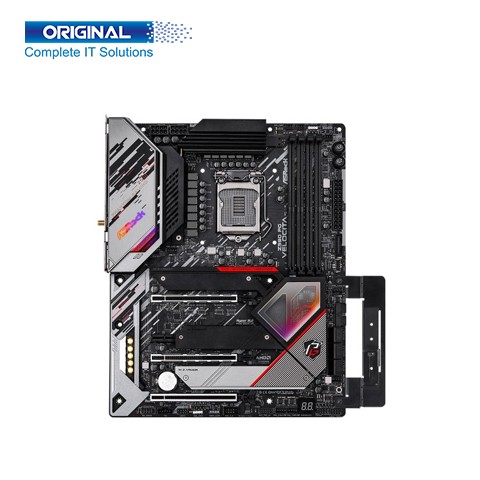

| Model | ASRock Z590 PG Velocita | |
| Brand | ASRock | |
| Supported Processor | Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200) | |
| Chipset | Intel® Z590 | |
| Socket | LGA1200 | |
| Bios | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCIO 1 2, VPPM, VCCIN AUX, VCCST, VCC PLL, CPU PLL, VTTDDR Voltage Multi-adjustment |
|
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB |
|
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | - Dual-Channel | |
| Slot | 4 x DDR4 DIMM Slots | |
| Supported Bus Speed | - 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)
- 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC) |
|
| Maximum Memory | 128GB | |
| Graphics Information | ||
| Graphics | - 11th Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core™ Processors support Gen 9 Graphics
- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz**
- Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port
- Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports |
|
| Expansion Slots | ||
| PCI | CPU Direct Source LAN Off (Default Setting):
11th Gen Intel Core Processors
- 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE4: single at Gen4x16 (PCIE1); dual at Gen4x8 (PCIE1) / Gen4x8 (PCIE3); triple at Gen4x8 (PCIE1) / Gen4x8 (PCIE3) / Gen3x4 (PCIE4))
10th Gen Intel Core Processors
- 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE4: single at Gen3x16 (PCIE1); dual at Gen3x8 (PCIE1) / Gen3x8 (PCIE3); triple at Gen3x8 (PCIE1) / Gen3x8 (PCIE3) / Gen3x4 (PCIE4))
CPU Direct Source LAN On:
11th Gen Intel Core Processors
- 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE4: single at Gen4x8 (PCIE1); dual at Gen4x8 (PCIE1) / Gen4x4 (PCIE3); triple at Gen4x8 (PCIE1) / Gen4x4 (PCIE3) / Gen3x4 (PCIE4))
10th Gen Intel Core Processors
- 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE4: single at Gen3x8 (PCIE1); dual at Gen3x8 (PCIE1) / Gen3x4 (PCIE3); triple at Gen3x8 (PCIE1) / Gen3x4 (PCIE3) / Gen3x4 (PCIE4))
- 1 x PCI Express 3.0 x1 Slot
- Supports AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX
- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O)
- 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
|
| Storage Information | ||
| M.2 | - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with | |
| SATA | - 6 x SATA3 6.0 Gb/s Connectors | |
| RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - - Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| Connector Information | ||
| Internal Connectors | - 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 2 x RGB LED Headers
- 2 x Addressable LED Headers
- 1 x CPU Fan Connector (4-pin)
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1 x VRM Fan Connector (4-pin)
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
- 1 x Clear CMOS Button
- 1 x Dr. Debug with LED
- 1 x Power Button with LED
- 1 x Reset Button with LED |
|
| Port Information | ||

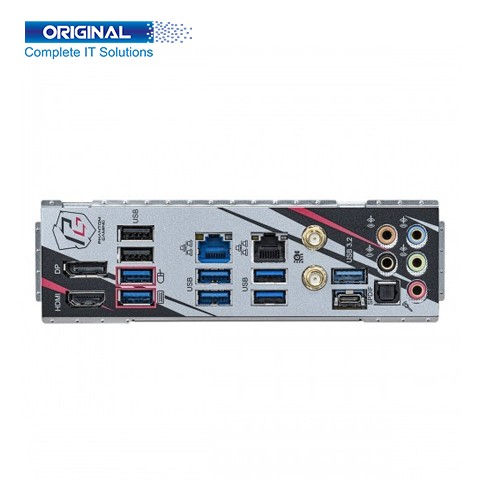

| USB Port | - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Type-A Ports (ASMedia ASM1042A) (Supports ESD Protection)
- 4 x USB 3.2 Gen1 Type-A Ports (Intel Z590) (Supports ESD Protection)
- 2 x USB 2.0 Ports (Supports ESD Protection) |
|
| HDMI Port | - 1 x HDMI Port | |
| LAN Port | - 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Killer E3100G)
- 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V) |
|
| Audio Port | - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) | |
| Display Port | 1 x DisplayPort 1.4 | |
| Other Information | ||
| Special Feature | - Killer AX1675x 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ax - Supports Dual-Band 2x2 160MHz with extended 6GHz band support - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.2 + High-speed class II - Supports MU-MIMO - Supports Killer LAN Software - Supports Killer DoubleShot Pro |
|
| Operating Systems | ||
| Supported OS | - Microsoft® Windows® 10 64-bit | |
| Warranty | ||
| Warranty | 03 Years Manufacturing Warranty | |
ASRock Z590 PG Velocita 10th/11th Gen ATX Motherboard Good Motherboard Gives a Computer Full Support. Good quality works Depending on the Motherboard and the ASRock Z590 PG Velocita 10th/11th Gen ATX Motherboard is one of the best exclusive Motherboard.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
ASRock Z590 PG Velocita 10th/11th Gen ATX Motherboard. Motherboard Brand ASRock, This Motherboard Supported Processor 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors, Chipset Intel® Z590 Socket LGA1200 Micro ATX Form Factor, Motherboard Memory DDR4 Dual-Channel 4 x DDR4 DIMM Slots Max. The Capacity of system memory is 128 GB. ASRock Z590 PG Velocita Motherboard Supported Bus Speed 10th Gen And 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC), 4800+(OC), Motherboard Graphics Information 11th Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core™ Processors support Gen 9 Graphics, support HDMI 2.0, and DisplayPort 1.4 ports. You can get ASRock Z590 PG Velocita 10th/11th Gen ATX Motherboard at the best price in BD. ASRock 10th/11th Gen ATX Motherboard PCI Express 11th Gen Intel Core Processors 3 x PCI Express x16 Slots, 1 x PCI Express 3.0 x1 Slot, 1 x Vertical M.2 Socket (Key E), Motherboard Supported Storage 1 x Hyper M.2 Socket, 6 x SATA3 and RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices, This Motherboard Supported Port 1 x USB 3.2 Gen2 Type-A and Type-C Port, 2 x USB 3.2 Gen1 Type-A Ports, 4 x USB 3.2 Gen1 Type-A Ports, 2 x USB 2.0 Ports, 1 x HDMI Port, 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, 7.1 CH HD Audio with Content Protection, 1 x DisplayPort 1.4, Motherboard Supported Operating Systems Microsoft Windows® 10 64-bit.ASRock Z590 PG Velocita 10th/11th Gen ATX Motherboard Warranty is 03 Years Manufacturing Warranty.
