| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asrock |
| Product Code | : | B450M Pro4-F |
| General Information | ||

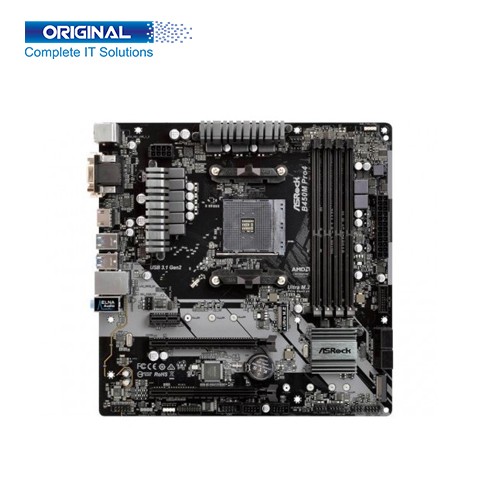

| Model | ASRock B450M Pro4-F |
|
| Brand | ASRock | |
| Supported Processor | Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors | |
| Chipset | AMD Promontory B450 | |
| Socket | AMD AM4 Socket | |
| Bios | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - DRAM Voltage multi-adjustment |
|
| Form Factor | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - Solid Capacitor design |
|
| Memory Information | ||
| Memory Types | DDR4 |
|
| Channel | Dual Channel | |
| Slot | 4 x DDR4 DIMM Slots | |
| Supported Bus Speed | AMD Ryzen series CPUs (Vermeer) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory | |
| Maximum Memory | 128GB | |
| Graphics Information | ||
| Graphics | - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB.** - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 1.4 with DVI-D and HDMI 1.4 Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI 1.4 Ports |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode) 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode) 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode) 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode) 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode) 1 x PCI Express 2.0 x1 Slot |
|
| Storage Information | ||
| M.2 | 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Vermeer, Matisse, Cezanne, Renoir, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon series APU) 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module |
|
| SATA | 4 x SATA3 6.0 Gb/s Connectors | |
| RAID | Support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug | |
| Connector Information | ||
| Internal Connectors | - 1 x COM Port Header - 1 x TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 1 x Addressable LED Header** - 1 x AMD Fan LED Header*** - 1 x CPU Fan Connector (4-pin)**** - 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)***** - 1 x Chassis Fan Connector (3-pin) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x AMD LED Fan USB Header - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
|

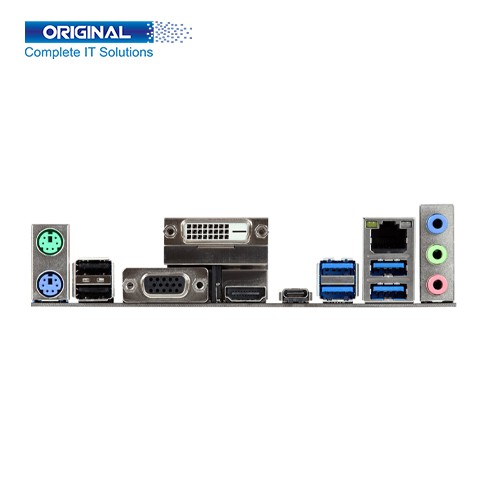

| Port Information | ||
| PS/2 Port | - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port |
|
| USB Port | - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
|
| HDMI Port | 1 x HDMI Port | |
| DVI-D Port | 1 x DVI-D Port | |
| D-SUB Port | 1 x D-Sub Port | |
| LAN Port | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111GR - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports LAN Cable Detection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
|
| Audio Port | - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - ELNA Audio Caps |
|
| Operating System | ||
| Supported OS | Microsoft® Windows® 10 64-bit / 11 64-bit |
|
| Warranty | ||
| Warranty | 03 Years Warranty |
|
ASRock B450M Pro4-F DDR4 2nd Gen AMD AM4 Socket Motherboard. It's delivery and dominant thermal design, glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake's performance in all its atx glory. It ensures maximum Turbo Boost and overclocking performance of Intel's new generation CPU.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
ASRock B450M Pro4-F DDR4 2nd Gen AMD AM4 Socket Motherboard. ASRock Motherboard Model B450M Pro4-F, Motherboard Brand ASRock, This Motherboard Supported Processor AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop, ASRock Motherboard Chipset Promontory B450, ASRock B450M Pro4-F Socket AMD AM4 Socket, ASRock Motherboard Micro ATX Form Factor, Motherboard Memory Types DDR4 and Dual Channel. ASRock B450M Pro4-F DDR4 Motherboard Memory 4 x DDR4 DIMM Slots, ASRock Motherboard Supported Bus Speed 3200/2933/2667/2400/2133 MHz, ASRock B450M Pro4-F Motherboard Maximum Memory 128 GB, ASRock Motherboard Expansion 1 x PCI Express 3.0 x16 Slot (PCIE2: x16, x8, x4 mode), 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode), 1 x PCI Express 2.0 x1 Slot. You can get ASRock B450M Pro4-F DDR4 2nd Gen AMD AM4 Socket Motherboard at the best price in BD. ASRock B450M Pro4-F Motherboard 1 x PS/2 Mouse Port, 1 x PS/2 Keyboard Port, 2 x USB 2.0 Ports, 1 x USB 3.2 Gen1 Type-C Port, 4 x USB 3.2 Gen1 Ports, 1 x HDMI Port, 1 x DVI-D Port, 1 x D-Sub Port, PCI-E x1 Gigabit LAN 10/100/1000 Mb/s, 7.1 CH HD Audio with Content Protection, ASRock 2nd Gen AMD AM4 Socket Motherboard Supported Windows 10 64-bit/11 64-bit, ASRock B450M Pro4-F Motherboard 03 Years Warranty.
